Dynatron A56 3U Active CPU Air Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

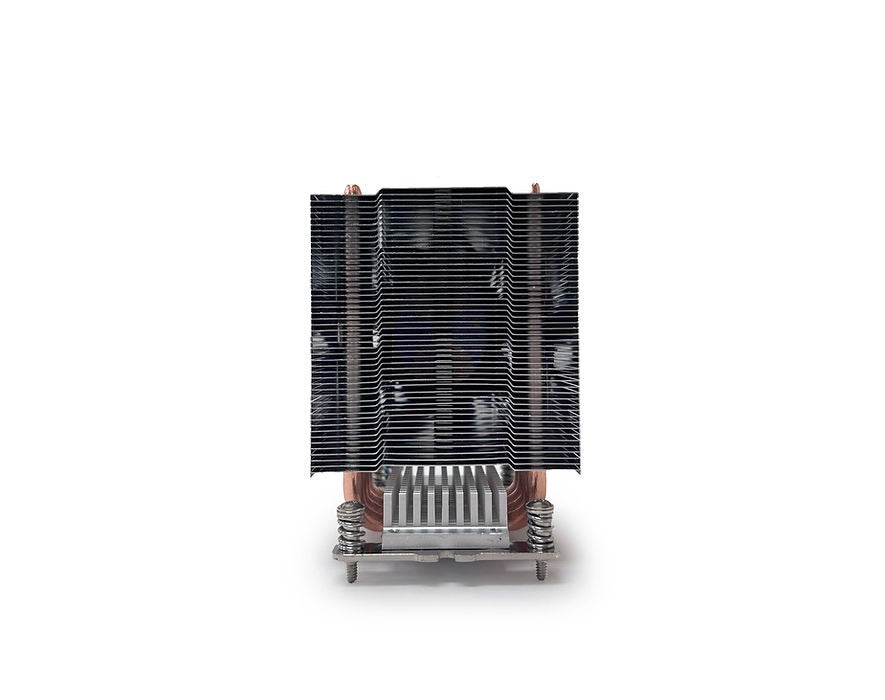

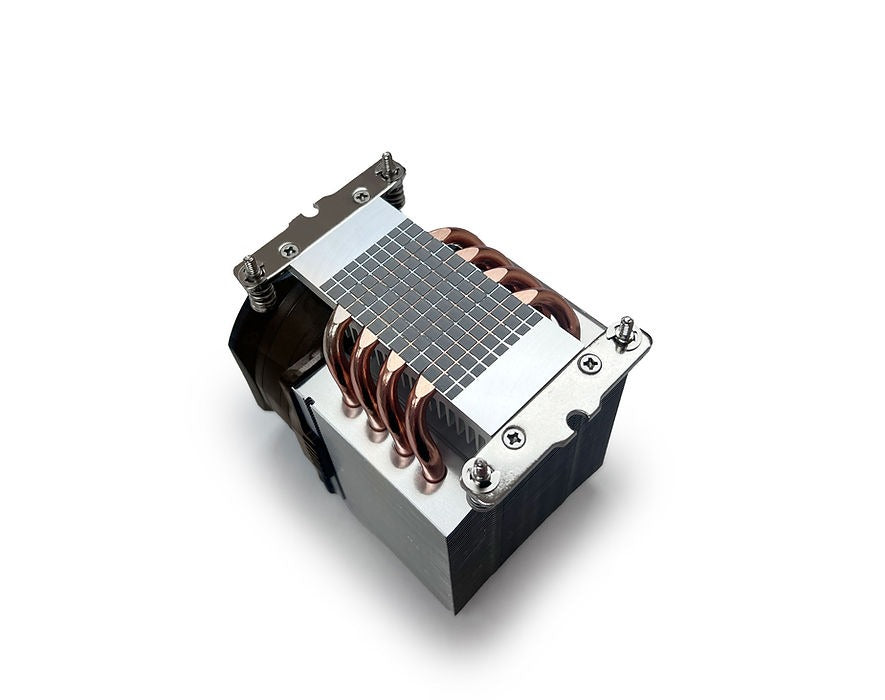

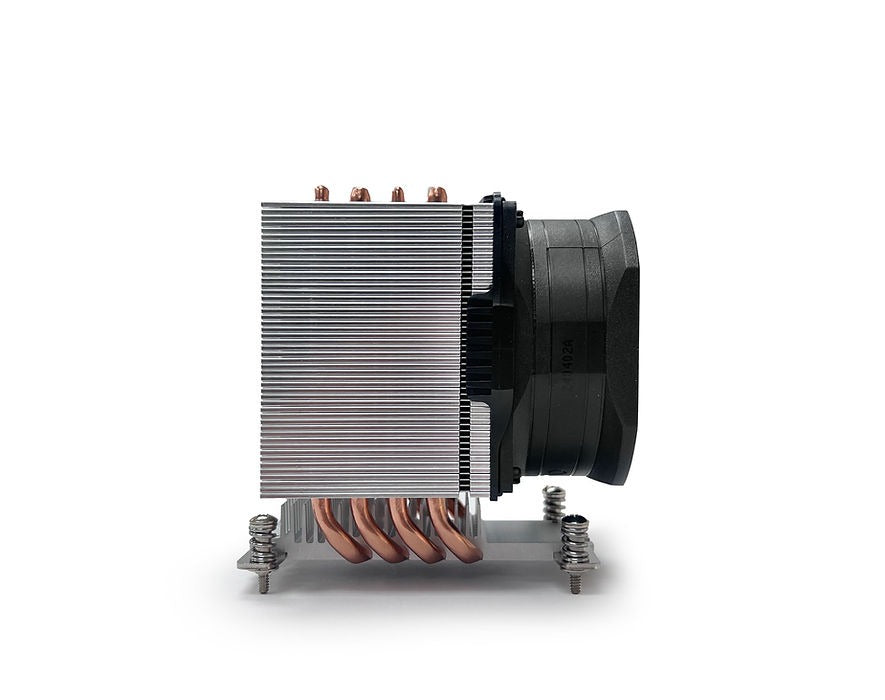

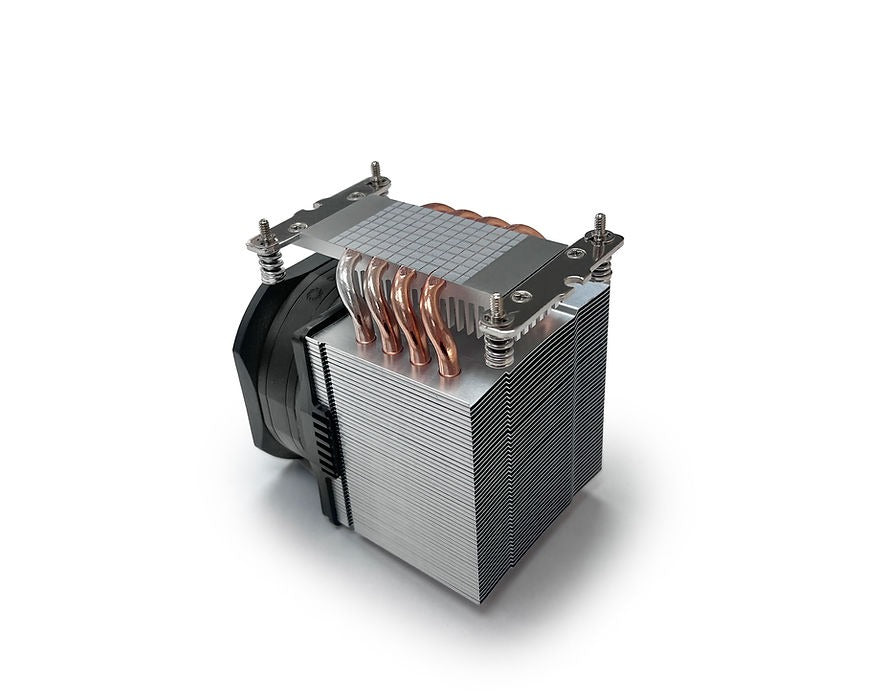

Dynatron A56 3U Active Air Cooler

840556076810

CPU Support: AMD
CPU Socket: AM4/AM5
Application: 3U & up
Maximum Power: 170W

The Dynatron A56 3U Active Air Cooler is a versatile and efficient cooling solution for your CPU. Featuring an aluminum stacked fin design and direct contact heat pipes, it effectively dissipates heat with a 8038 side-blow fan and PWM function. With a TDP support of over 170 watts, it provides reliable cooling even in high ambient temperatures.

PRODUCT SPECIFICATION
Dimension: 107.5 x 78 x 110 mm
Weight: 600 g
Material: Aluminum Stacked Fin with Heat Pipes directly contact CPU
Fan: 8038 Side-Blow Fan with PWM Function
Mounting Method: Convenient Heat Sink Screw Captive Mounting
Thermal Grease: Shin-Etsu X23-8079-2 pre-printed
TDP Support: CPU Power over 170 Watts Heat Dissipation @28C ambient temperature

FAN SPECIFICATION
Model Number: DF128038BX - PWMG
Dimension: 80 x 80 x 38 mm
Bearing: Double Ball
Rated Voltage: 12V

Rated Speed:
At Duty Cycle 0~20%: 2400 ± 10% RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8000 RPM

Min. Input Power:
At Duty Cycle 0~20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W

Maximum Airflow:
At Duty Cycle 0~20%: 35.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM

Rated Static Pressure:
At Duty Cycle 0~20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2O

Acoustical Noise:
At Duty Cycle 0~20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.4 dBA

Lead Wire Pin Out:
Pin#1- Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
