High Speed 120x120x38mm Dual Voltage AC Cooling Fan - Mechatronics UF12A12/23 BWHR - Perfect for PC Cooling, Server Racks & Electronics Ventilation

Product Description

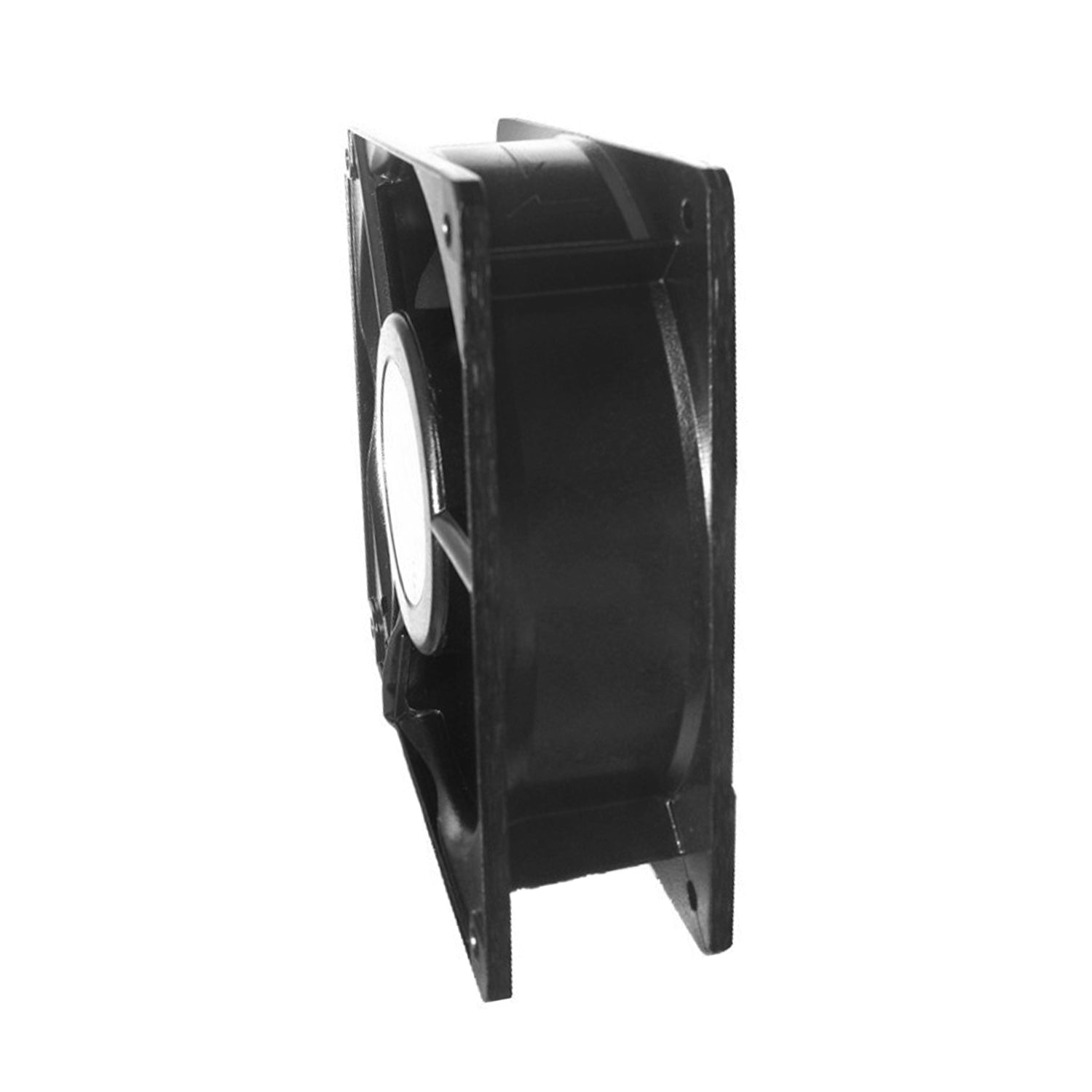

Mechatronics 120x120x38mm High Speed Dual Voltage AC Fan UF12A12/23-BWHR

840556101796

Note: AC power cable is not included. Please choose your cable from our AC

FEATURES:
Construction: Aluminum die cast frame
UL94V-0 PBT impeller
Bearing option: Motor quality ball bearings
Motor: Shaded pole
Air flow: Exhaust over struts
Connection: Terminal or 22 AWG lead wire
Protection: Impedance
Voltage (VAC): 115 or 230
Leed wires: 16 inch bare wire

PRODUCT SPECIFICATIONS:

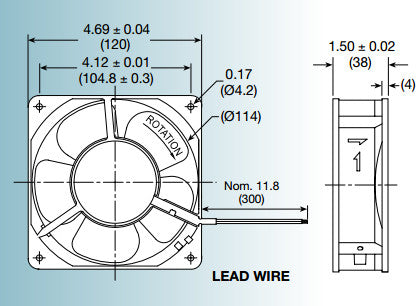

Fan Size: 120x120x38mm
Rated Current: 0.16 A
Locked Current: 0.23 A
Fan Speed: 3100 RPM
Air Volume: 106 CFM
Sound Level: 46 DBA
Static Pressure (H2O): 8.7mm / .35"

Electrician Wiring Instructions:
3/4/2010: There is a wiring diagram on every dual voltage fan
wire colors: black (formerly green), blue, yellow, brown

115 Volt:
Hook yellow and black together and connect to positive or negative
Hook blue and brown together and connect to the other side

230 Volt:
Tie blue and yellow together and do not connect to anything
Connect black to positive or negative
Connect brown to the other side

CERTIFICATIONS:
CE Listed
UL Recognized
TUV Listed
RoHS Compliant
