40x40x28mm 12V DC Cooling Fan with 3-Pin Connector - High Performance Top Motor DF124028BL 3G for PC, Gaming Rig & Electronics Cooling

Product Description

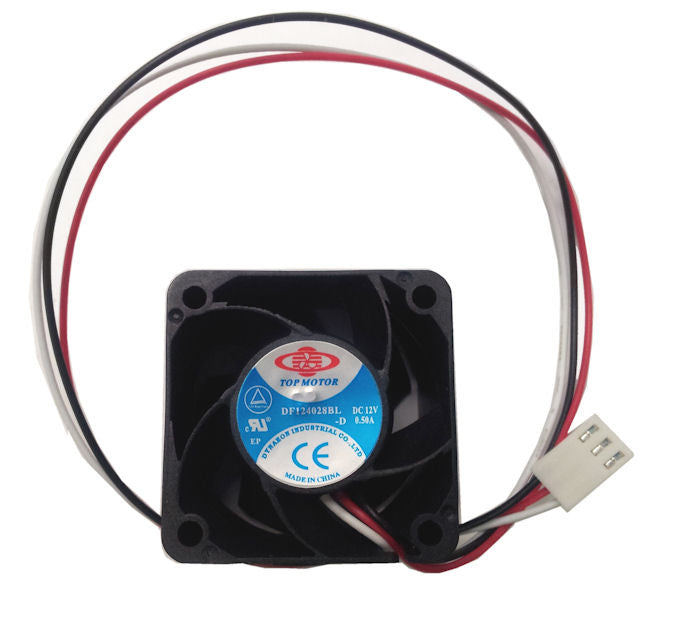

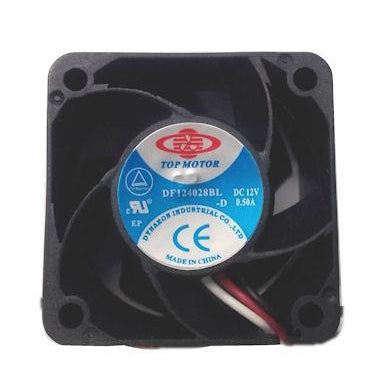

Top Motor 40x40x28mm 12 Volt 3 Pin Connector DF124028BL-3G

840556101604

PRODUCT SPECIFICATION:
DC Fan Size:  40x40x28mm
Bearing Type: Dual Ball Bearing
Fan Speed: 9000 ±10% RPM
Noise Level: 47.74 DBA
Rated Voltage: 12 Volt
Fan Airflow:16.32 CFM (at 12V)
Safety Approval: RoHS Compliant
Connector: 3 Pin 8" Tail

MANUFACTURE DATA:
Frame: PBT+30%GF UL94V-0 (Black)
Impeller: PBT+15%GF UL94V-0 (Black)
Weight: 37±5 grams
Operating Temperature: 10 °C ~ + 65 °C (65 %RH)
Storage Temperature: 30 °C ~ + 70 °C (65 %RH)
Vibration Test Displacement Amplitude: 0.75mm(Equivalent 10G)
Frequency Range:10Hz55Hz/30SEC.
Linear Scanning: 120 Cycle
Endurance Timer Per Axis: 30Min.
Orientation: X,Y,Z.
