Dynatron Q7 Intel LGA 1700 1U Server CPU Cooler - High Performance Low Profile Heatsink for Data Center & Cloud Computing Applications

Product Description

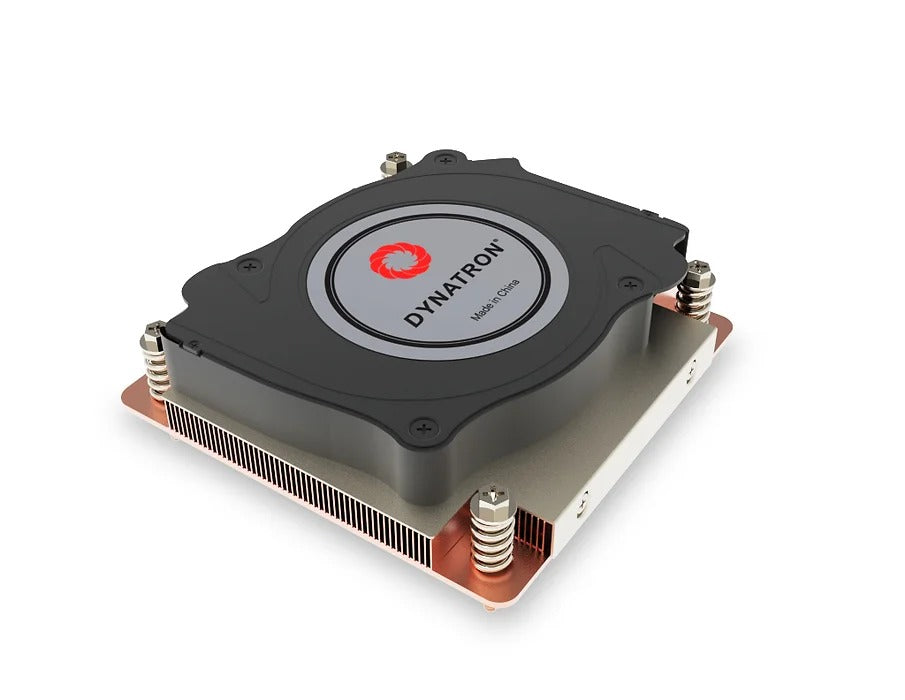

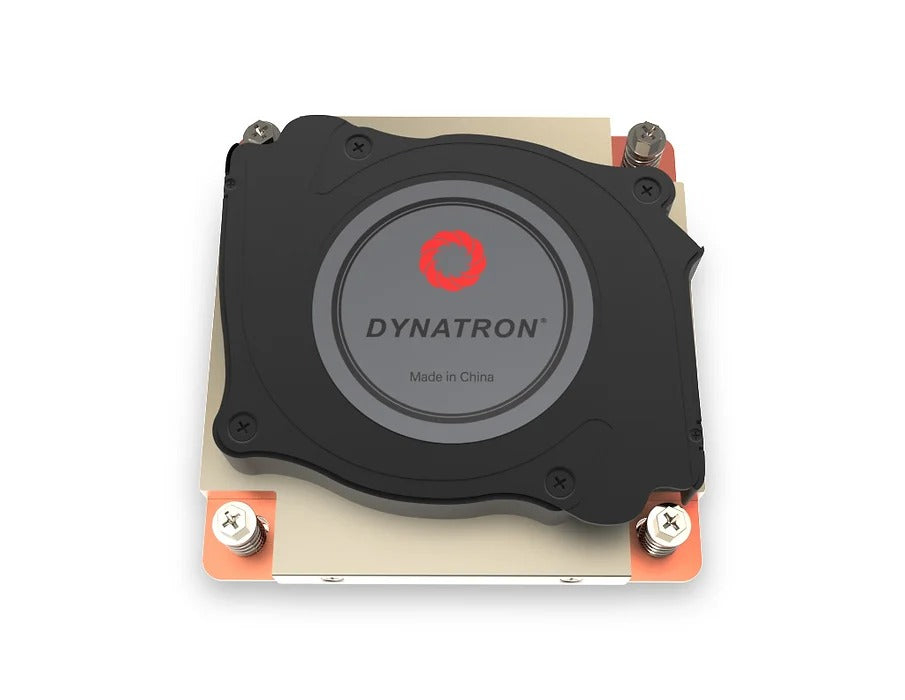

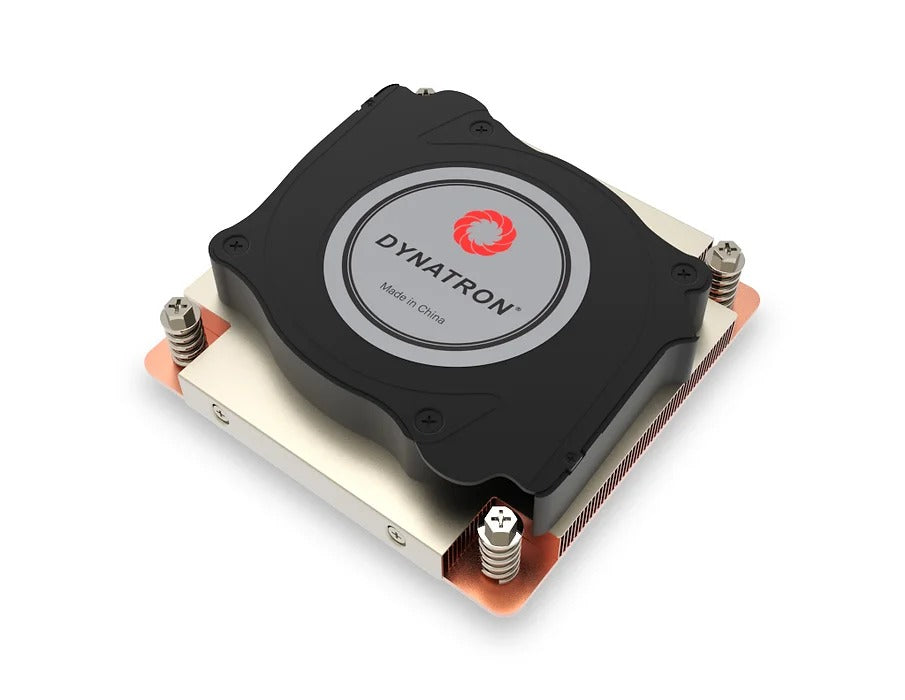

Dynatron Q7 Intel 1700 1U CPU Cooler

840556075448

When it comes to cooling high-performance server processors such as the Intel® Alder Lake-S and Raptor-Lake Socket LGA1700, Dynatron Q7 Active Air Cooler is the best choice for 1U servers and up. Dynatron Q7 Active Air Cooler provides efficient cooling to keep temperatures regulated and prevent overheating with their copper-based vapor chamber base and stacked fin design. They also support up to 125W CPU power heat dissipation, which allows them to handle the most powerful and advanced processor models on the market. With Dynatron Q7 Active Air Cooler, you can be sure that your server's processor will remain at an optimal temperature, ensuring maximum performance and stability.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel®
• CPU Socket: LGA 1700
• Solution: 1U Server and Up
• Dimensions: 95 x 94 x 28.2 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/ Signal Output)
  Pin#4- Blue (PWM)

• Thermal Grease: Shin-Etsu 7762 Pre-Printed
• Fan Dimension: Ø80 x 13 mm
• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Speed:  At Duty Cycle 20%: 2000 ± 200 RPM

  At Duty Cycle 50%: 4900 ± 10% RPM
  At Duty Cycle 100%: 8700 ± 10% RPM


• Power: At Duty Cycle 20%: 1.08 W

  At Duty Cycle 50%: 4.70 W
  At Duty Cycle 100%: 26.25 W

• Air Flow: At Duty Cycle 0~20%: 6.41 CFM

  At Duty Cycle 50%: 15.26 CFM
  At Duty Cycle 100%: 26.25 CFM


• Noise Level: At Duty Cycle 20%: 23.3 dBA

  At Duty Cycle 50%: 43.5 dBA
  At Duty Cycle 100%: 62.2 dBA


• Air Pressure: At Duty Cycle 20%: 3.69 mm-H2O

  At Duty Cycle 50%: 25.28 mm-H2O
  At Duty Cycle 100%: 89.80 mm-H2O

• Material: Copper Vapor Chamber Heatsink with Stacked Fins
• Weight: 380g
