CG CabCool 901 Single 92mm Cabinet Cooling Fan Kit - Quiet Cooling Solution for Home Theaters, Gaming PCs & AV Cabinets - Perfect for Electronics Ventilation & Temperature Control

Product Description

CG CabCool 901 Single 92mm Fan Cooling Kit for Cabinet - Home Theaters

Pre-set Thermal Fan Switch 840556092209
LED programmable Switch 840556092223

Available in  Version

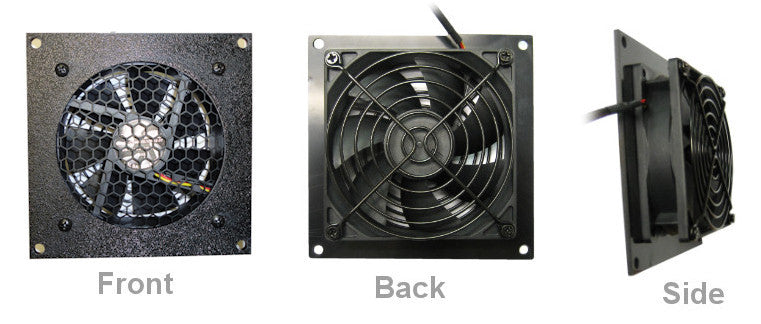

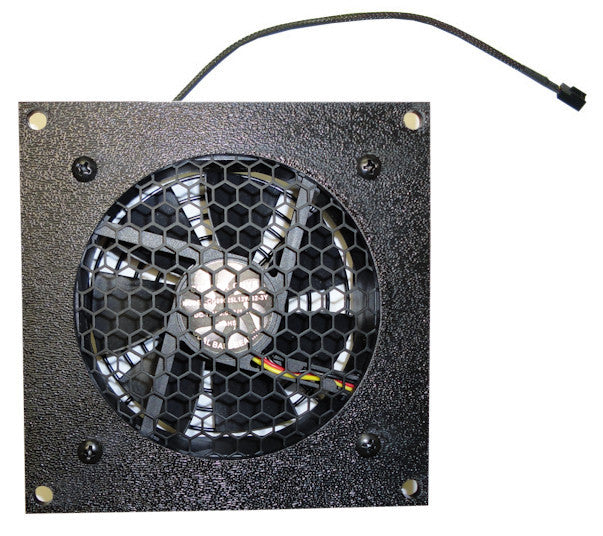

This is a complete *kit with pre-set thermal switch for a single fan unit (92x92x25mm) that will quietly cool your cabinet or multimedia center.

display an additional $8.00/ea

Also includes our 110-240v AC to 12v DC Power Supply for powering the fan from a standard wall outlet.

Can be mounted on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 97 x 97mm.   Insert completed cooler assembly in a hole and attach to the cabinet with appropriate screws.  Fans can be set to blow into or out of the cabinet depending on your needs.  If you need additional information contact .

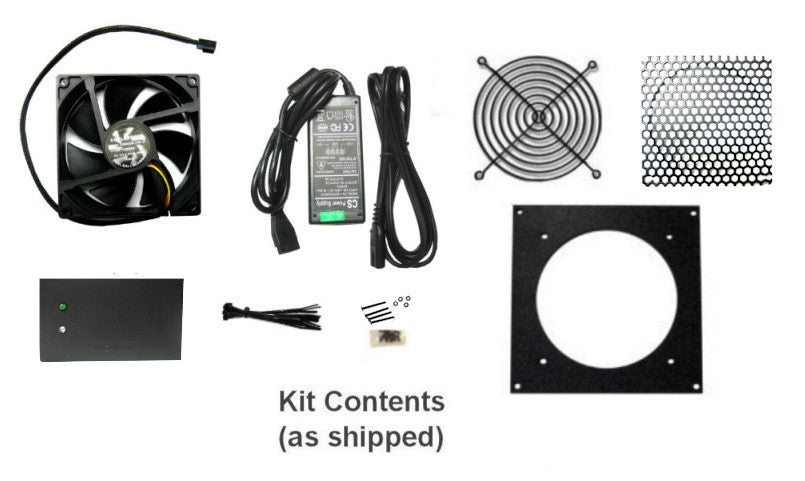

Cooling Unit includes the following:
(1)  Coolerguys 92mm Ultra Quiet Low-Speed Dual Ball Fan
(1)  110-240v AC to 12v 1A DC Power Supply

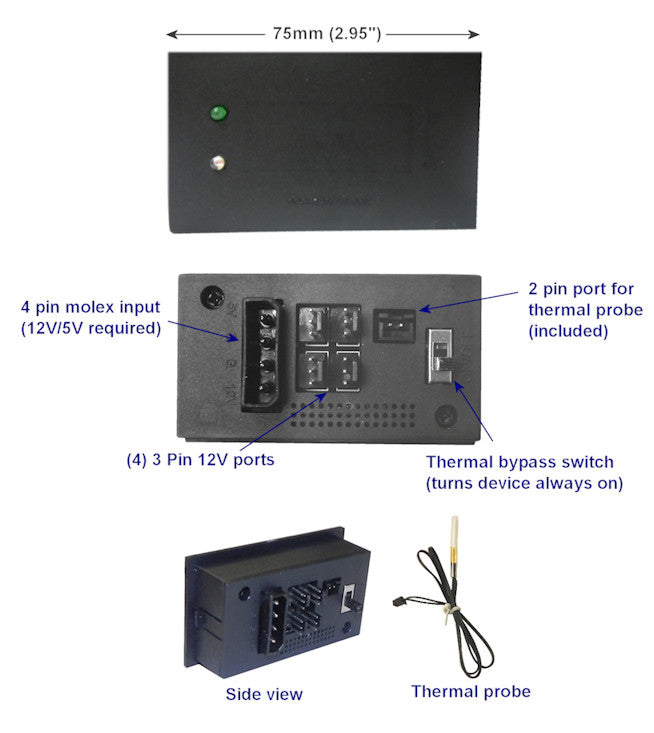

(1)  Coolerguys Thermal Controller of your choice
(1)  Black Acrylic Fan bracket (120 x 120 x 4mm)
(1)  Black 92mm fan grill
(1)  Black Mesh 92mm Honeycomb grill
(8)  Fan Screws to attach grill(s)
 Pack -  4" Nylon Multi-Purpose Tie Black
 (4) 1/2" black Cabinet screw(s)

All necessary screws, cables, and fasteners to complete the unit.

PRODUCT SPECIFICATIONS:
Completed Dimensions: 120 x 120 x 38mm
Cabinet Cutout size: 97 x 97mm

UNIT SPECIFICATIONS:
Fan Dimensions: 92x92x25mm
Rated Voltage: 12 Volts
Current: .09 Amp
Storage Temperature: -40 to +70 C
Fan Speed: 1500 +/- 10%
Air Flow: 30.39 CFM
Noise Level: 18 dBA
Bearing Type: Dual ball bearing
Life Span: 67,000 hours

CERTIFICATIONS:
RoHS Compliant
UL Listed

This high quality attractive system cooler is backed by a three year warranty.
