Dynatron A42 Active CPU Cooler for AMD AM4/AM5 Sockets - 1U Server Cooling Solution for Compact PC Builds & Data Centers

Product Description

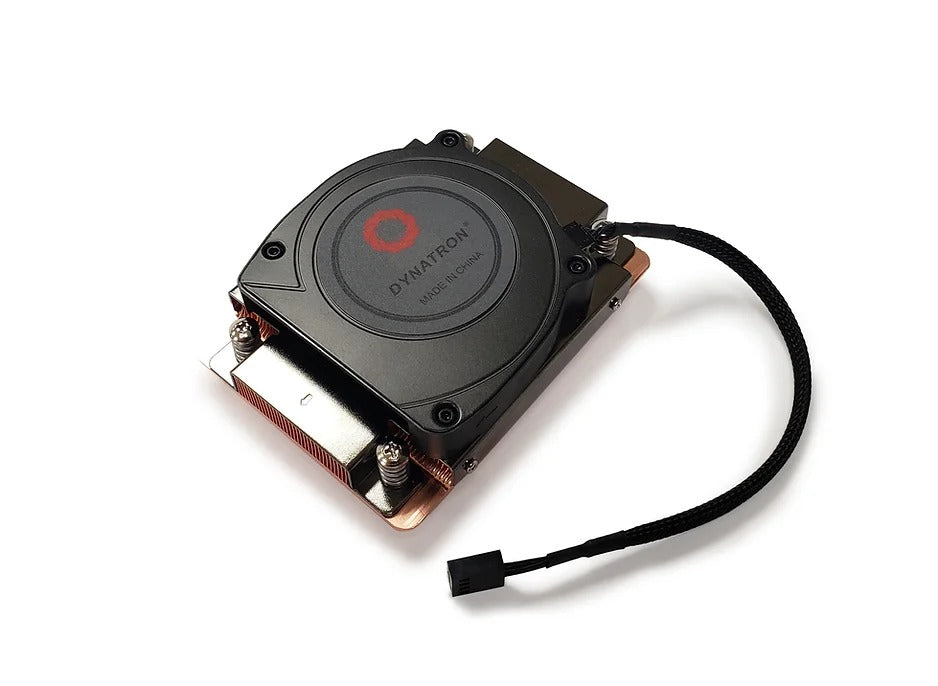

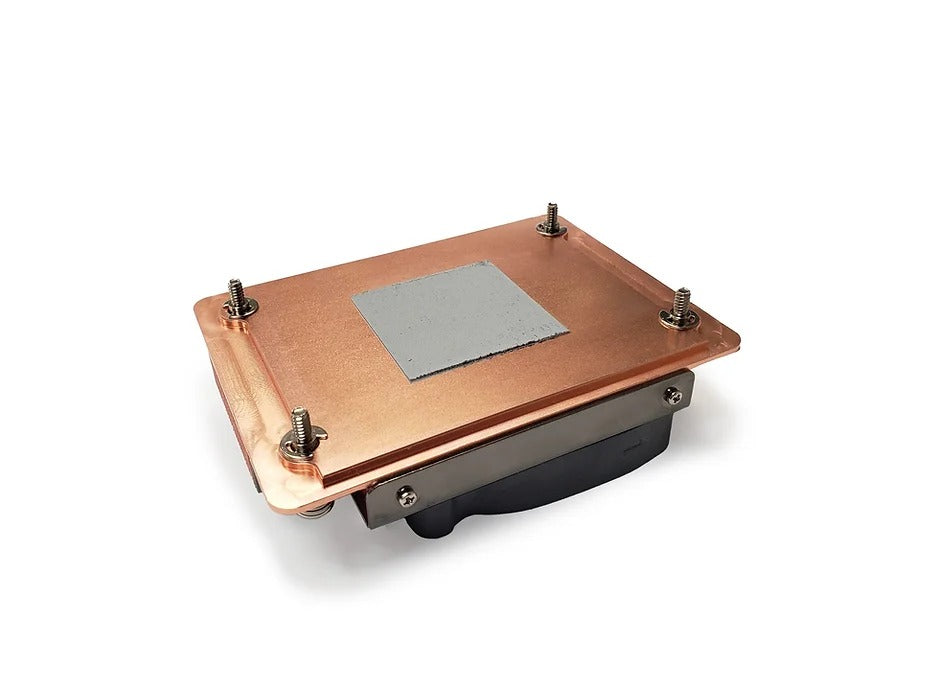

Dynatron AMD AM4 / AM5 1U Active CPU Cooler A42

840556075493

The Dynatron A42 1U Active Air Cooler is an ideal choice for high-performance AMD® Ryzen Socket AM4 and AM5 processors. This small, side-blower PWM fan offers 95 Watts of CPU power heat dissipation in a 1U server environment. Engineered for superior cooling performance, the Dynatron A42 will keep your system running at peak efficiency.

PRODUCT SPECIFICATIONS:

• CPU Support: AMD® Ryzen
• CPU Socket: AM4/AM5
• Solution: 1U Server and up
• Dimensions: 110.0 x 85.0 x 27.3 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/ Signal Output)
  Pin#4- Blue (PWM)

• Thermal Grease: Shin-Etsu 7762 Pre-Printed
• Fan Dimension: 80 x 80 x 13 mm
• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Speed: At Duty Cycle 20%: 2000 ± 200 RPM

  At Duty Cycle 50%: 4900 ± 10% RPM
  At Duty Cycle 100%: 8600 ± 10% RPM


• Power: At Duty Cycle 20%: 1.08 W

  At Duty Cycle 50%: 4.7 W
  At Duty Cycle 100%: 23.45W

• Air Flow: At Duty Cycle 20%: 5.59 CFM


  At duty cycle 50%: 14.76 CFM
  At Duty Cycle 100%: 26.25 CFM

• Noise Level: At Duty Cycle 20%: 23.3 dBA

  At Duty Cycle 50%: 43.5 dBA
  At Duty Cycle 100%: 62.2 dBA


• Air Pressure: At Duty Cycle 20%: 3.69 mm-H2O

  At Duty Cycle 50%: 25.28 mm-H2O
  At Duty Cycle 100%: 89.80 mm-H2O

• Material: Copper Fin
• Weight: 400g

[Dynatron A42 1U Active Air Cooler] Spec Sheet
