High Performance Frameless 50x10mm Cooling Fan - 3 Wire/Pin Connector DF125010BH 3G for V31G - Perfect for PC Cooling, Electronics & Industrial Applications

Product Description

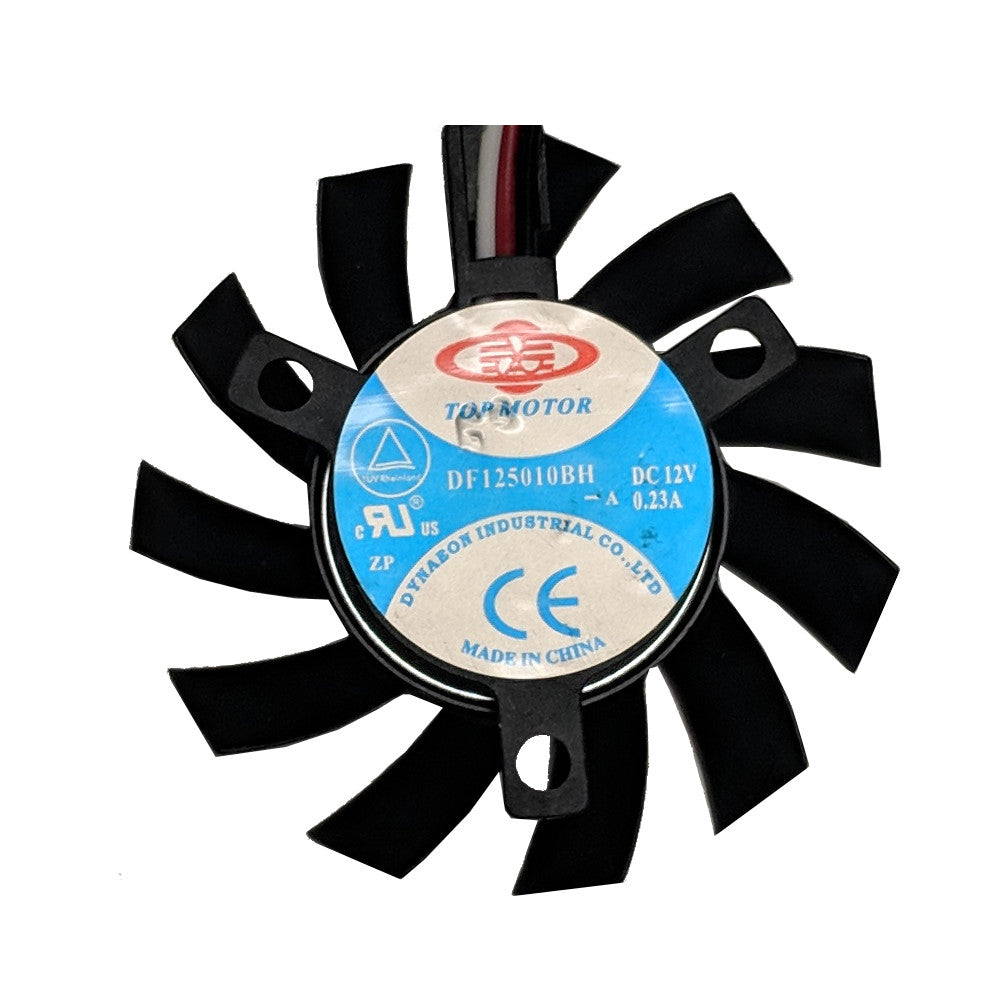

Top Motor Frameless 50x10mm fan 3 wire/3 pin connector #D12F5010BH-3G

840556022527

*This fan already reached its EOL and the only fan model available now is 840556082880

Fan Specification:
Model Number: DF125010BH-3G

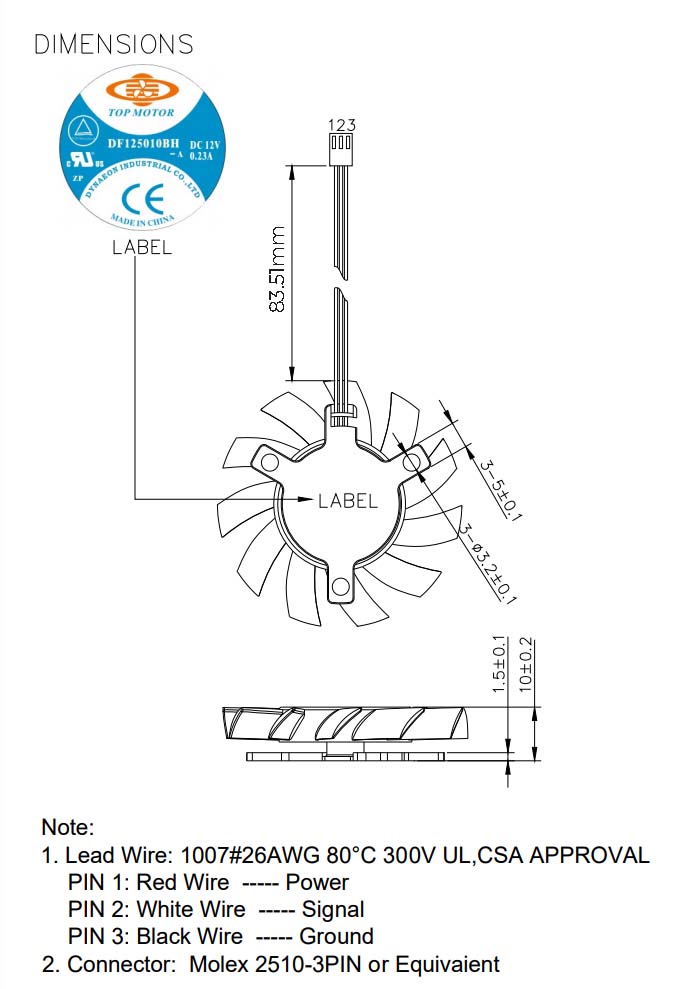

Dimension: 50x50x10mm
Bearing: Ball, Dual
Start Voltage: DC 7V DC
Voltage: 12V DC
Operating Voltage: 10.8 - 13.2V DC
Speed: 5000 ± 10% RPM
Input Power: 2.76 W
Airflow: 10.80 CFM
Input Current: 0.23A (Max.)
Static Pressure: 2.80 mm-H2O (0.110inch-H2O)
Acoustical Noise: 31.8 dBA
Lifespan: Continuous operating under normal temperature (25 °C or 77 °F) 50,000 hours

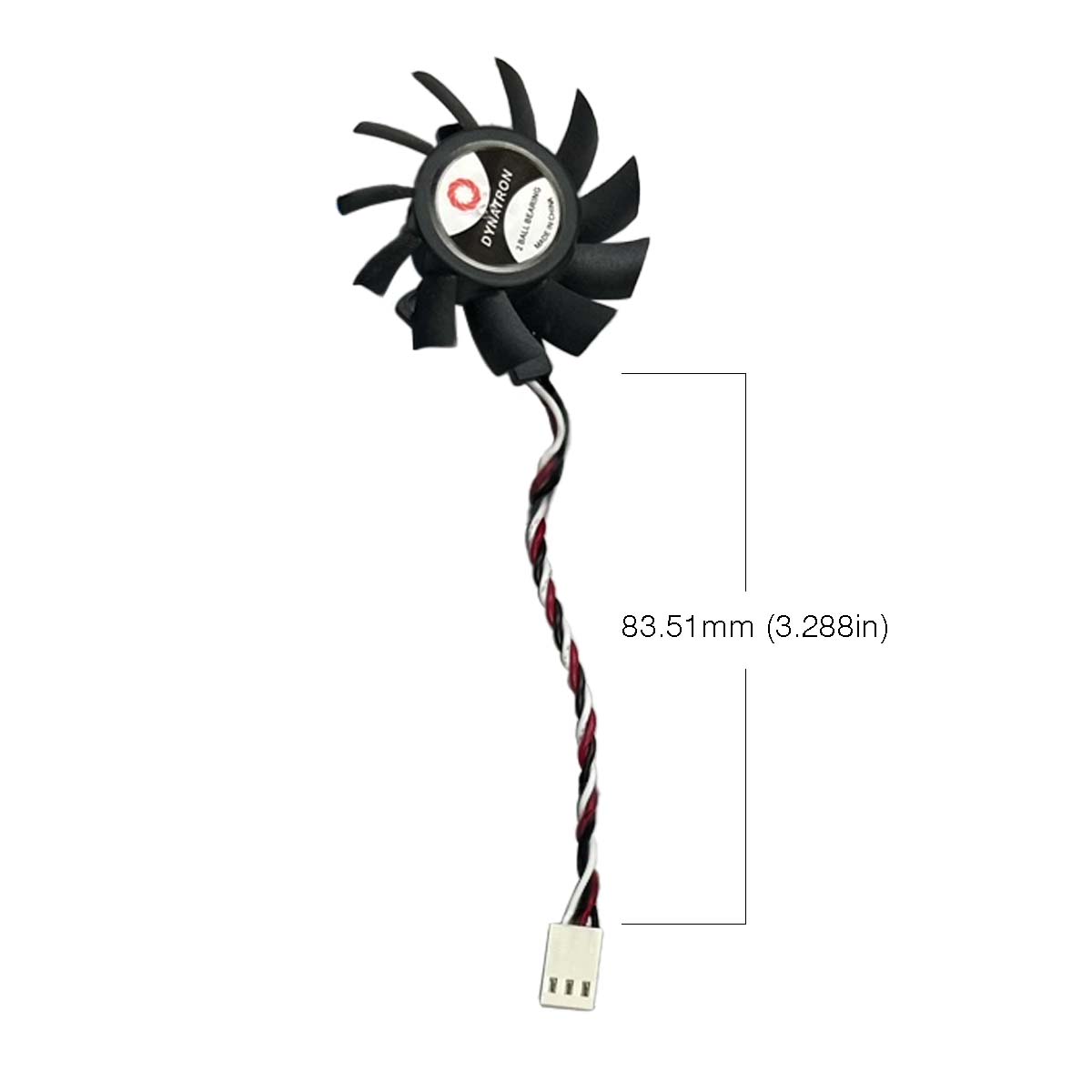

Lead Wire Pin Out: Pin#1 - Black (-) / Pin#2 - Red (+) / Pin#3 - White Tachometer / Signal output); Length - 88.9mm (3.5in)
Material: Frame & Impeller PBT UL94V-0 (Black GP)
Operating Temperature: -10 °C ~ +65 °C
