Noctua NF-B9 Premium 92x92x25mm PWM Cooling Fan - High Performance PC Case & CPU Cooler for Gaming Rigs & Workstations

Product Description

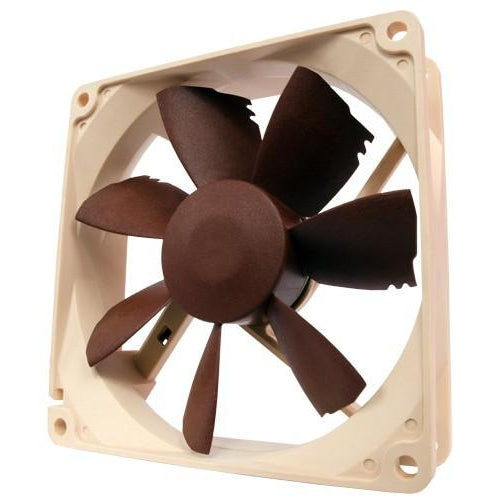

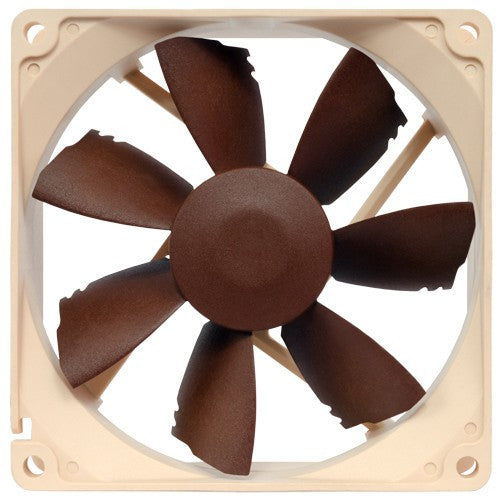

Noctua 92x92x25mm Premium PWM Fan NF-B9

840556099734

The classic NF-B9 92mm fan helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctua’s novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctua’s signature SSO bearing and topped off with a 6 years manufacturer’s warranty, the NF-B9 PWM is a proven premium choice for the highest demands.

Proven NF-B9 Design
Tens of thousands of quiet cooling enthusiasts swear by Noctua’s classic NF-B9. Its impressive quietness, excellent performance and impeccable, time-tested quality made the B9 a default choice for 92mm quiet cooling.

Bevelled Blade Tips
Reducing critical rotor stator interaction, the NF-B9’s Bevelled Blade Tips permit to combine a higher blade surface area with quieter operation and thus form a cornerstone of the fan’s outstanding efficiency.

Vortex-Control Notches
Noctua’s signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan’s noise emission over a wider range of frequencies. This measure makes the NF-B9 PWM sound more pleasant to the human ear.

Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-B9 PWM uses Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

Low-Noise Adaptor
The NF-B9 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 1600 to 1300rpm. The L.N.A can be used either to run the fan at a fixed speed of 1300rpm or to cap the maximum speed when using automatic PWM control.

Extensive Cabling Options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-B9 fan to the same PWM fan header for automatic control.

SSO-Bearing
Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.

6 years manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-B9 PWM features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.

PRODUCT SPECIFICATION:
Size: 92x92x25 mm
Connector: 4-pin PWM
Bearing: SSO
Rotational Speed (+/- 10%): 1600 RPM
Rotational Speed with L.N.A. (+/- 10%): 1300 RPM
Min. Rotational Speed (PWM): 300 RPM
Airflow 64.3 m³/h
Airflow with L.N.A. 52,6 m³/h
Acoustical Noise 17,6 dB(A)
Acoustical Noise with L.N.A. 13,1 dB(A)
Static Pressure 1,61 mm H2O
Static Pressure with L.N.A. 1,09 mm H2O
Max. Input Power 0,96 W
Max. Input Current 0,08 A

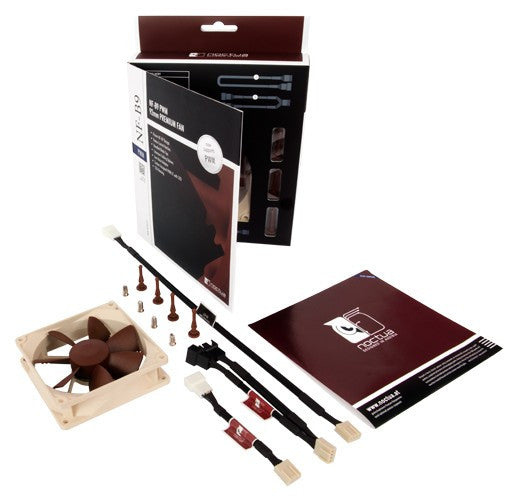

ACCESSORIES:
Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

NOTE:  PWM Fans are not variable speed control fans on their own.  An integrated circuit varies the speed and airflow of a fan using a pulse-width-modulated (PWM) voltage in response to temperature or system commands send typically by a computer motherboard. You can use them to run at full speed from an external supply if you adapt the plug.
