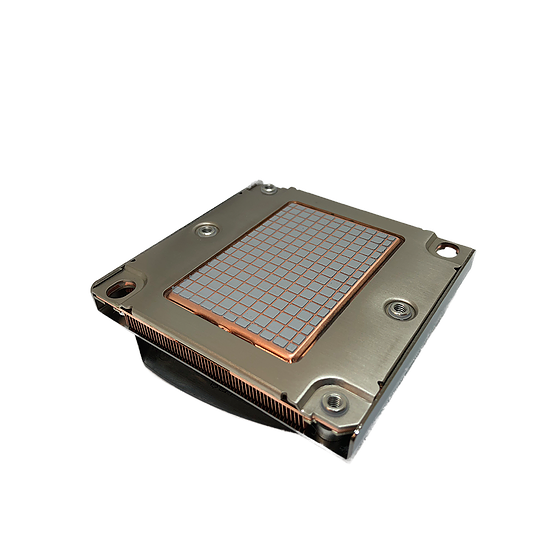

Dynatron B9 1U Active CPU Cooler for FCLGA3647 Square ILM - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

CPU Socket: FCLGA3647 Square ILM
Solution: 1U Server and Up
Dimensions: 93 x 90.5 x 28 mm
Weight: 470 g
Material: Copper1100 Heatsink with Vapor Chamber Base
Rated Voltage: 12V
Bearing: Ball Type, Double

Fan Dimension: 90 x 15 mm
Speed:
At Duty Cycle 20%: 1000 ± 200 RPM
At Duty Cycle 50%: 2500 ± 10% RPM
At Duty Cycle 100%: 5000 ± 10% RPM
Power:
At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.6 W
At Duty Cycle 100%: 12 W
Air Flow:
At Duty Cycle 20%: 6.8 CFM
At Duty Cycle 50%: 11.0 CFM
At Duty Cycle 100%: 19.0 CFM
Noise Level:
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 31.5 dBA
At Duty Cycle 100%: 46.4 dBA
Air Pressure:
At Duty Cycle 20%: 2.8 mm-H2O
At Duty Cycle 50%: 18 mm-H2O
At Duty Cycle 100%: 46 mm-H2O

Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Thermal Grease:
Shin-Etsu 7762 Pre-printed
