Dynatron A52 AMD SP6 1U Active Vapor Chamber CPU Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

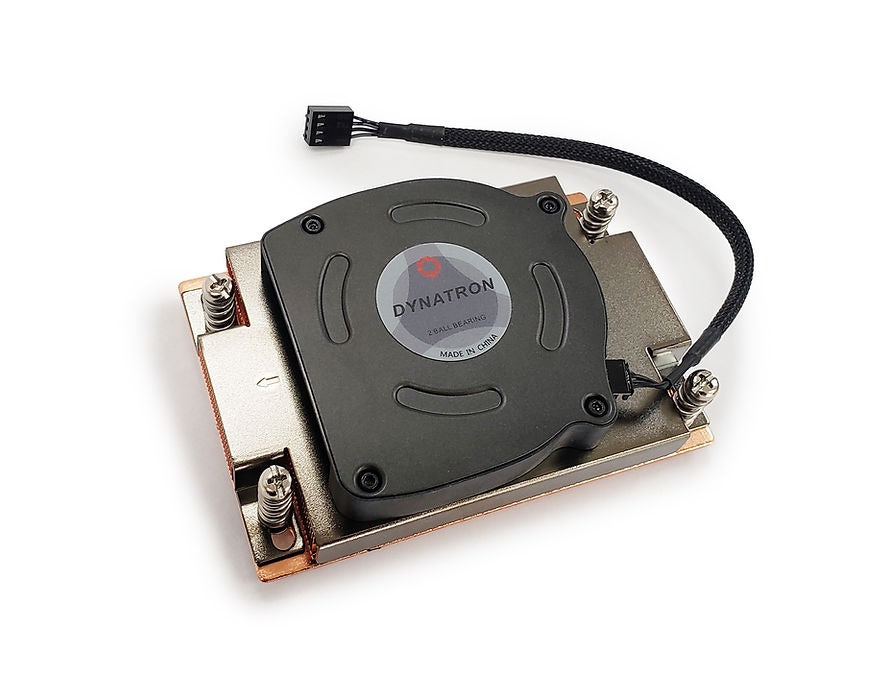

Dynatron A52 AMD SP6 1U Active Vapor Chamber CPU Cooler

840556076605

Elevate your computer's performance with the Dynatron A52 AMD SP6 1U Active Vapor Chamber CPU Cooler. Made from premium materials, including a copper vapor chamber and stacked fin, this cooler ensures optimal cooling for even the most demanding tasks. With a TDP of up to 140 watts and a double ball bearing for a longer lifespan, this cooler is essential for any high-performance system.

PRODUCT SPECIFICATION
Dimension: 120.0 x 82.0 x 28.6 mm
Weight: 500g
Material: Copper 1100 Vapor Chamber and Stacked Fin
Thermal Grease: Shin-Etsu 7762 Pre-Printed
TDP Support: Up to 140 Watts
Rated Voltage: 12V
Bearing: Ball Type, Double

Rated Speed:

• At Duty Cycle 0~20%: 2000± 200 RPM
• At Duty Cycle 50%: 4900± 10% RPM
• At Duty Cycle 100%: 8600±10% RPM

• At Duty Cycle 0~20%: 1.08 W
• At Duty Cycle 50%: 4.7 W
• At Duty Cycle 100%: 23.45 W

• At Duty Cycle 0~20%: 5.59 CFM
• At Duty Cycle 50%: 14.76 CFM
• At Duty Cycle 100%: 26.25 CFM

• At Duty Cycle 0~20%: 3.69 mm-H2O
• At Duty Cycle 50%: 25.28 mm-H2O
• At Duty Cycle 100%: 89.90 mm-H2O

• At Duty Cycle 0~20%: 23.3 dBA
• At Duty Cycle 50%: 43.5 dBA
• At Duty Cycle 100%: 62.2 dBA

• Pin#1- Black(-)
• Pin#2- Black(+)
• Pin#3- Black(Tachometer/ Signal Output)
• Pin#4- Black (PWM)
