Noctua NH-L9x65 Low Profile CPU Cooler - Compact & Quiet Cooling for Small Form Factor PCs, HTPCs, and Mini-ITX Gaming Rigs

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors.

Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

Socket compatibility Intel LGA2011-0 & LGA2011-3(Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)
Height (without fan) 51 mm
Width (without fan) 95 mm
Depth (without fan) 95 mm
Height (with fan) 65 mm
Width (with fan) 95 mm
Depth (with fan) 95 mm
Weight (without fan) 340 g
Weight (with fan/s) 413 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP see TDP guide
Fan compatibility 92x92x14, 92x92x25

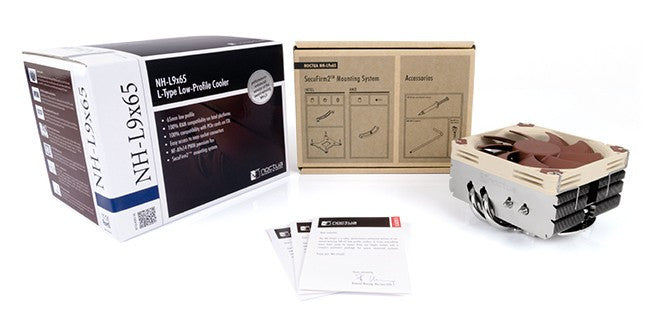

Scope of Delivery
NF-A9x14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge
Warranty 6 Years
FAN Specification
Model Noctua NF-A9x14 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1800 RPM
Min. Rotational Speed (PWM, +/-20%) 600 RPM
Max. Airflow 57,5 m³/h
Max. Airflow with L.N.A. 40,8 m³/h
Max. Acoustical Noise 23,6 dB(A)
Max. Acoustical Noise with L.N.A. 14,8 dB(A)
Voltage Range 12 V
MTTF > 150.000 h
