Dynatron AMD AM4/AM5 2U Active CPU Cooler A47 - High Performance Cooling Solution for Servers & Workstations - Perfect for Data Centers, Gaming Rigs, and High-Tech Workstations

Product Description

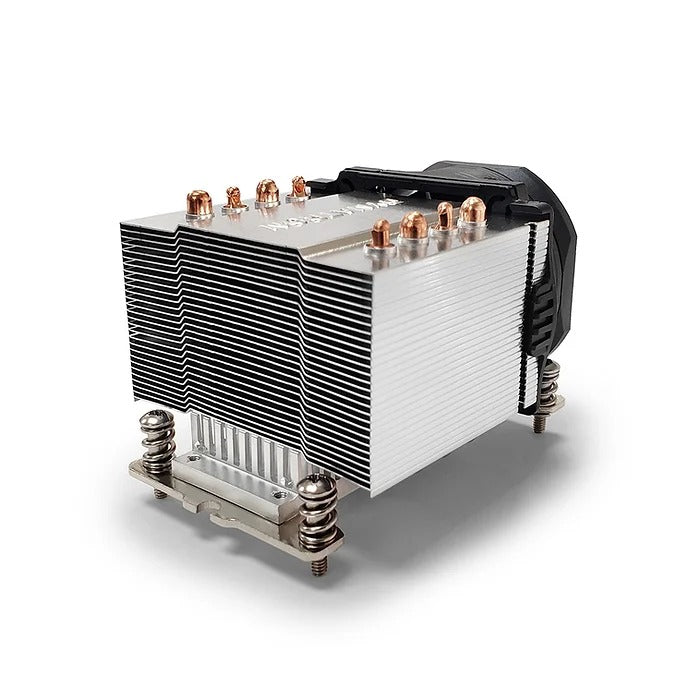

Dynatron  AMD AM4 / AM5 2U Active CPU Cooler A47

840556075509

Ideal for housing AMD® Ryzen Processors on both Socket AM4 and AM5, the Dynatron A47 2U Active Air Cooler features a 60x60x25 mm PWM fan, four heat pipes and aluminum stacked fins for enhanced heat dissipation with a maximum support of 170 Watts.

PRODUCT SPECIFICATIONS:

• CPU Support: AMD® Ryzen
• CPU Socket: AM4/AM5
• Solution: 2U Server and Up
• Dimensions: 107 x 78 x 67 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/ Signal Output)
  Pin#4- Blue (PWM)

• Thermal Grease: Shin-Etsu 7762 Pre-Printed
• Mounting Method: Convenient Heat Sink Captive Mounting
• Fan Dimension: 60 x 60 x 25 mm
• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Speed:  At Duty Cycle 20%: 2300 ± 200 RPM

  At Duty Cycle 50%: 5400 ± 10% RPM
  At Duty Cycle 100%: 11000 ± 10% RPM


• Power: At Duty Cycle 20%: 0.84 W

  At Duty Cycle 50%: 2.76 W
  At Duty Cycle 100%: 18.0 W

• Air Flow: At Duty Cycle 20%: 11.91 CFM


  At duty cycle 50%: 28.38 CFM
  At Duty Cycle 100%: 58.31 CFM

• Noise Level: At Duty Cycle 20%: 25.8 dBA

  At Duty Cycle 50%: 44.4 dBA
  At Duty Cycle 100%: 59.8 dBA


• Air Pressure: At Duty Cycle 20%: 1.48 mm-H2O

  At Duty Cycle 50%: 7.54 mm-H2O
  At Duty Cycle 100%: 28.8 mm-H2O

• Material: 4 Heat pipes and Aluminum Stacked Fin
• Weight: 400g

[Dynatron A47 2U Active Air Cooler] Spec Sheet
