Dynatron Q14 High-Performance Active Air Cooler - Efficient Cooling for Gaming PCs, Workstations, and Home Computers - Perfect for Overclocking and Extended Use

Product Description

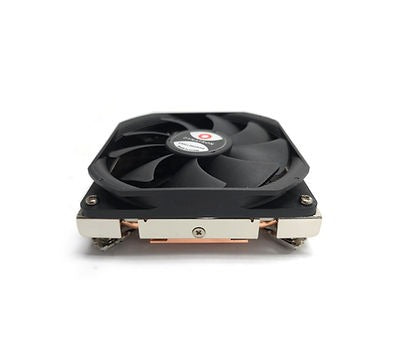

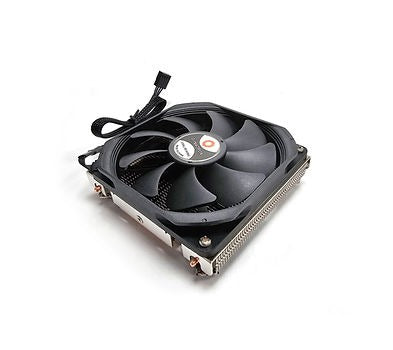

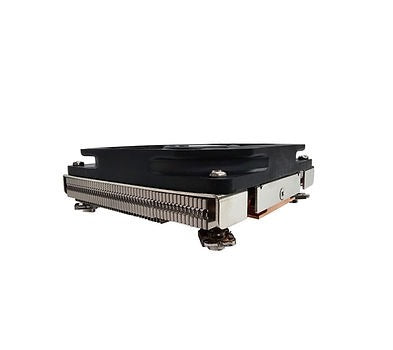

Dynatron Q14 Active Air Cooler

840556076841

• Recommend for Intel® CPU as following
  Intel® Socket LGA 1851/1700 Processor
• Active Cooler for 1.5U Application & Up

PRODUCT SPECIFICATION

• Dimension: 93.5 x 95.0 x 30.0 mm

• Weight: 348g (Fan + Heatsink)

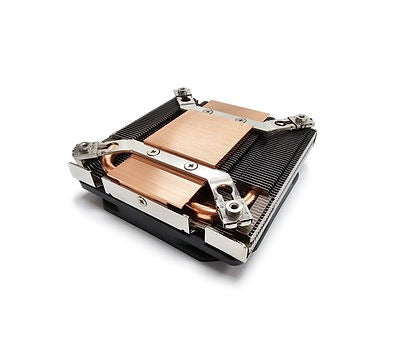

• Material: Copper Base & Aluminum Fins with Heat Pipe Embedded

• Fan: 92.0 x 92.0 x 12.0 mm Axial fan fan with PWM Function

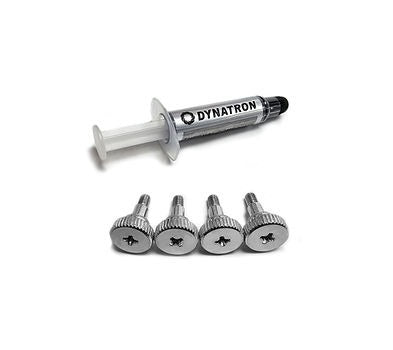

• Thermal Grease: Shin-Etsu 7762 or Equivalent (Syringe)

• Maximum CPU Power Support: 115W at 30℃ ambient temperature

FAN SPECIFICATION

• Dimension: 92.0 x 92.0 x 12.0 mm

• Bearing: Double Ball

• Rated Voltage: 12V

• Rated Speed:
  At Duty Cycle 0~20%: 800 ± 200 RPM
  At Duty Cycle 50%: 1900 ± 10% RPM
  At Duty Cycle 100%: 3200 RPM

• Input Power:
  At Duty Cycle 0~20%: 0.2 W
  At Duty Cycle 50%: 0.5 W
  At Duty Cycle 100%: 1.6 W

• Maximum Airflow:
  At Duty Cycle 0~20%: 9.88 CFM
  At Duty Cycle 50%: 21.38 CFM
  At Duty Cycle 100%: 35.78 CFM

• Rated Static Pressure:
  At Duty Cycle 0~20%: 0.28 mm-H2O
  At Duty Cycle 50%: 1.22 mm-H2O
  At Duty Cycle 100%: 3.21 mm-H2O

• Acoustical Noise:
  At Duty Cycle 0~20%: 22.3 dBA
  At Duty Cycle 50%: 26.1 dBA
  At Duty Cycle 100%: 36.2 dBA

• Lead Wire Pin Out:
  Pin#1- Black(-)
  Pin#2- Black (+)
  Pin#3- Black (Tachometer/ Signal Output)
  Pin#4- Black (PWM)

[Dynatron Q14 Active Air Cooler] Spec Sheet
