Dynatron U9 High-Performance Desktop Air Cooler - Efficient Cooling for Gaming PCs, Workstations & Home Offices

Product Description

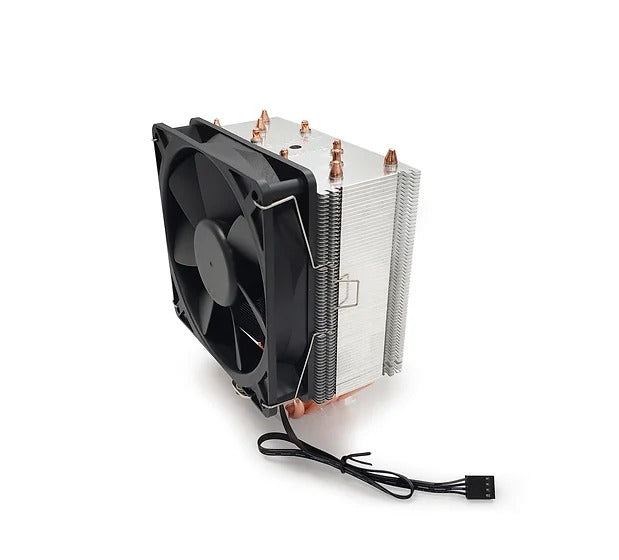

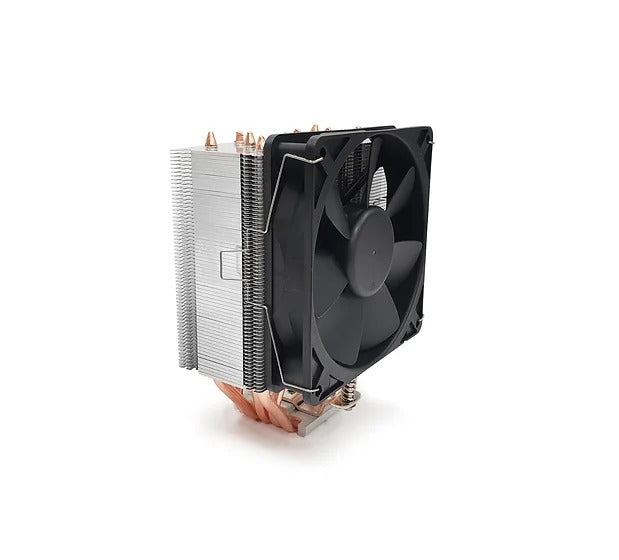

Dynatron U9 Desktop Active Air Cooler

840556075318

Recommend for Intel® LGA 20XX/1700/1200/115X Processor, and AMD® Socket AM5/AM4 Processor, Aluminum Fins with Copper Heat Pipe Embedded, 120 x 25 x 120 mm fan with PWM Function, Active Cooler for Desktop, Support 125 Watts CPU Power Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel/AMD

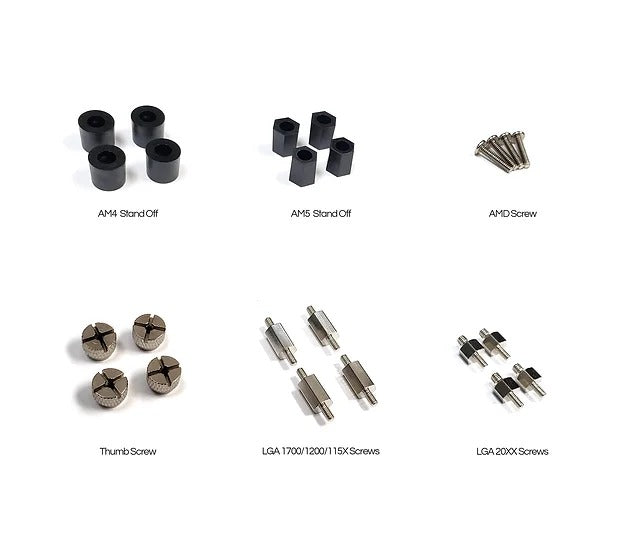

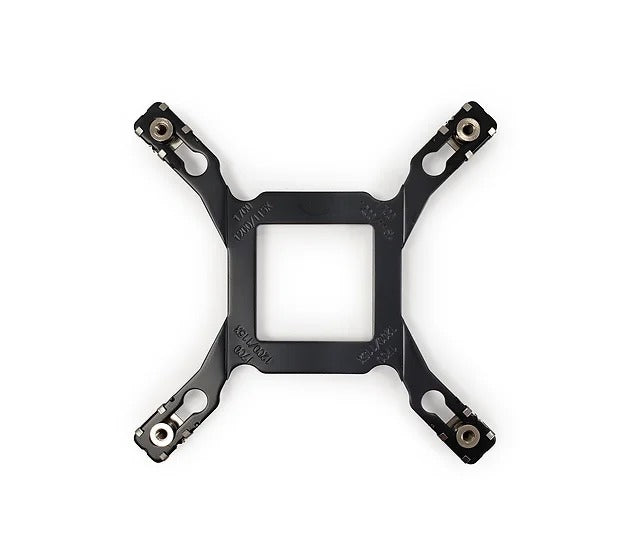

• CPU Socket: Intel LGA 20XX/1700/1200/115X

  AMD AM5/AM4

• Solution: Desktop
• Dimensions: 125 x 158 x 80 mm
• Lead Wire Pin Out: Pin1- Black(-)

  Pin2- Black(+)
  Pin3- Black(Tachometer/Signal output)
  Pin4- Black(PWM)

• Fan Dimension: 120.0 x 120.0 x 25.0 mm
• Speed: At Duty Cycle 20%: 600 ± 200 RPM

  At Duty Cycle 50%: 1500 ± 200 RPM
  At Duty Cycle 100%: 2200 ± 10% RPM

• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 20%: 0.6 W

  At Duty Cycle 50%: 1.20 W
  At Duty Cycle 100%: 2.40 W

• Air Flow: At Duty Cycle 0~20%: 21.2 CFM

  At Duty Cycle 50%: 57.5 CFM
  At Duty Cycle 100%: 84.3 CFM

• Noise Level: At Duty Cycle 20%: 14.26 dBA

  At Duty Cycle 50%: 27.7 dBA
  At Duty Cycle 100%: 36.1 dBA


• Air Pressure: At Duty Cycle 20%: 0.24 mm-H2O

  At Duty Cycle 50%: 1.76 mm-H2O
  At Duty Cycle 100%: 3.78 mm-H2O

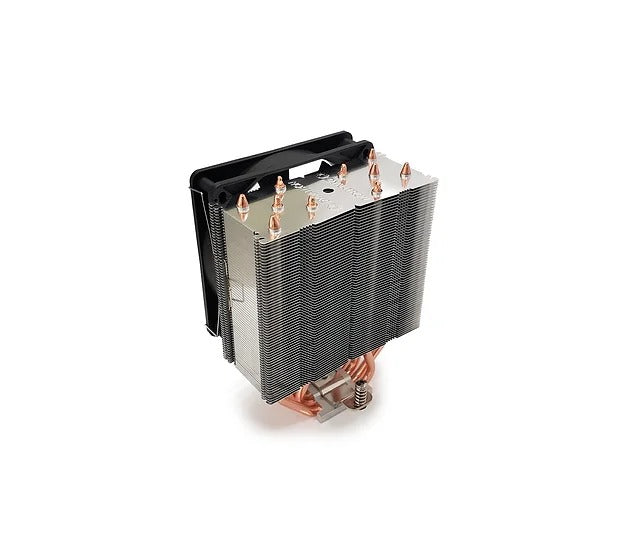

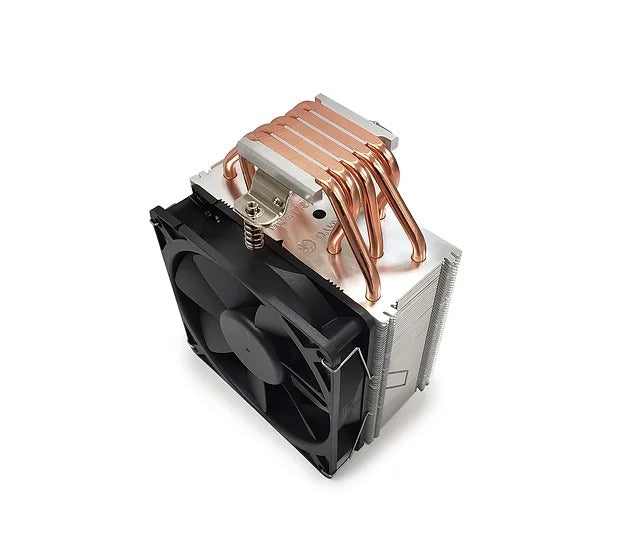

• Material: Aluminum Fins with Heat Pipe Embedded
• TDP: Support 125 Watts CPU Power Heat Dissipation.

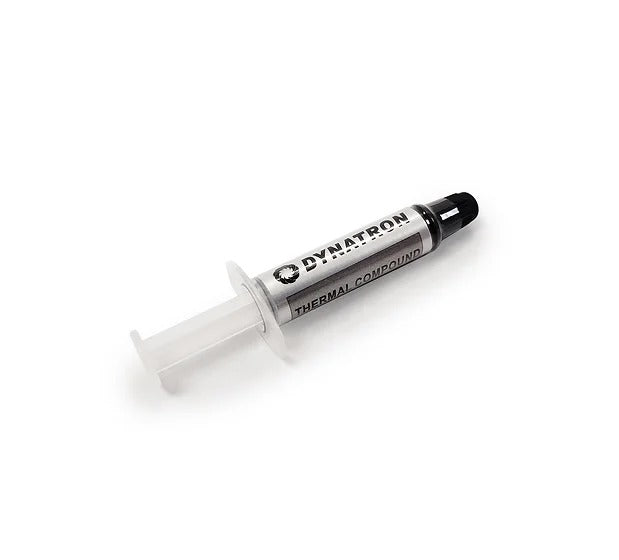

• Thermal Grease: Shin-Etsu 7762 Pre-Printed
• Weight: 706g
