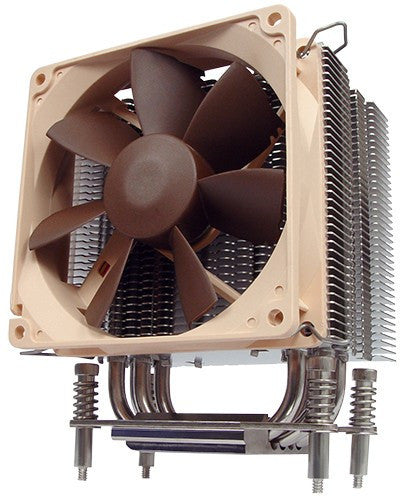

Noctua CPU Cooler NH-U9DX
Based on Noctua's compact NH-U9 series and fitted with the award-winning NF-B9 fan and NT-H1 thermal compound, the NH-U9DX forms a complete premium quality package that provides excellent quiet cooling performance for 4U Xeon workstations and servers. The new SecuFirm2™ mounting system for socket 771 is highly convenient and makes the NH-U9DX a tailor-made drop-in replacement for standard Intel coolers. To make your Xeon systems quieter has never been so easy!
| Socket compatibility | Intel LGA 771 & mPGA 604 (10mm mounting-holes only) | |
| Height (without fan) | 122 mm | |
| Width (without fan) | 96 mm | |
| Depth (without fan) | 65 mm | |
| Height (with fan) | 122 mm | |
| Width (with fan) | 96 mm | |
| Depth (with fan) | 90 mm | |
| Weight (without fan) | 500 g | |
| Weight (with fan) | 590 g | |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating | |
| Application | Intel Xeon 5xxx & Xeon 7xxx | |
| Fan compatibility | 92x92x25 (2 fans can be installed) | |
| Scope of Delivery | | |
Fan specifications | ||
| Model | Noctua NF-B9 | |
| Bearing | SSO-Bearing | |
| Rotational Speed (+/- 10%) | 1600 RPM | |
| Rotational Speed with L.N.A. (+/- 10%) | 1300 RPM | |
| Rotational Speed with U.L.N.A. (+/- 10%) | 1000 RPM | |
| Airflow | 64,3 m³/h | |
| Airflow with L.N.A. | 52,6 m³/h | |
| Airflow with U.L.N.A. | 41,1 m³/h | |
| Acoustical Noise | 17,6 dB(A) | |
| Acoustical Noise with L.N.A. | 13,1 dB(A) | |
| Acoustical Noise with U.L.N.A. | 7,9* dB(A) | |
| Input Power | 1,32 W | |
| Voltage Range | 12 V | |
| MTBF | > 150.000 h | |
