High Speed Cooling Fan 172x172x51mm - Mechatronics UF17PC23 BTHR for PC, Server & Electronics Cooling - Perfect for Gaming Rigs, Data Centers & Industrial Equipment

Product Description

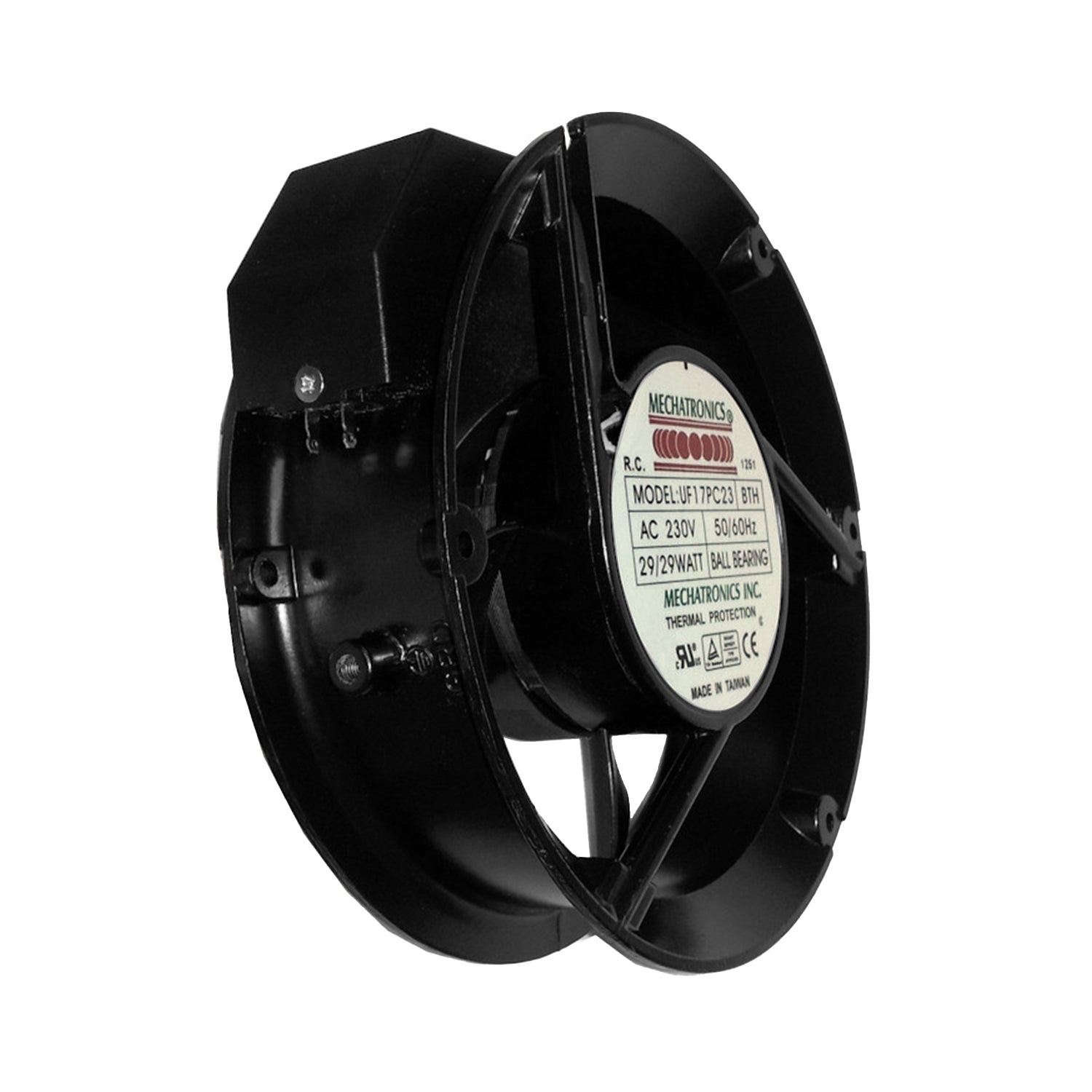

Mechatronics 172x172x51mm High Speed Fan UF17PC23-BTHR

840556100850

Extreme high airflow and static pressure

FEATURES:
Model: UF17PC23-BTHR
Bearing Type: Motor quality ball bearings
Construction: Aluminum die cast frame
UL94V-0 PBT Impeller
Motor: permanent split capacitor
Air Flow: Exhaust over struts
Connection: Terminal (need power cord / not included)
Protection: Thermal

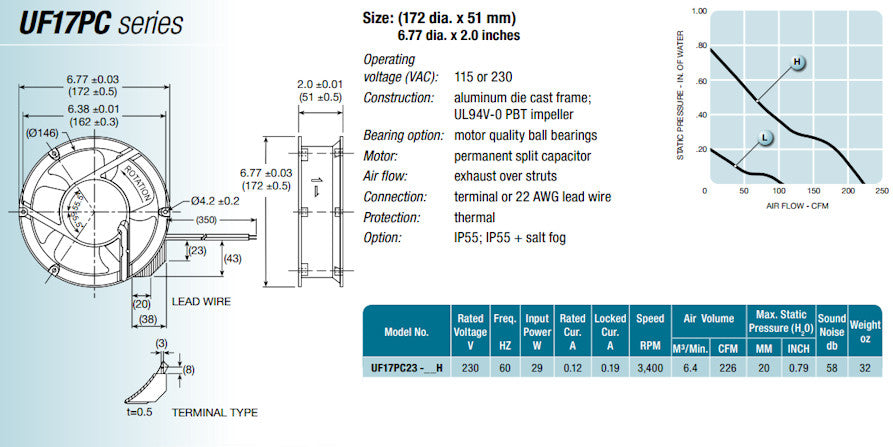

PRODUCT SPECIFICATIONS:
Size: (172dia. x 51mm) / 6.77. x 2.0 inches
Connector: Terminal
Rated Voltage (V): 230
Rated Current (Amp): 12A
Rated Input Power(W): 29
Rated Speed (rpm): 3400 RPM
Maximum Air Flow: 226 CFM
Sound Level: 58 DBA
Weight: 32 0z
Static Pressure (H2O): 20.0mm/.79"

CERTIFICATIONS:
CE Listed
UL Recognized
TUV Listed
RoHS Compliant

*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice
