14-15 Inch 180W Electric Cooling Fan with Push-In Probe Thermostat Switch Kit - Perfect for Car Engine Cooling, Radiator, and HVAC Systems

Product Description

Electric Fan:

• Universal 12v high performance 14" inch electric radiator cooling fan.
• Upgraded 180 watt motor draws 14 amps, producing over 2964 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 15" x 14" x 4" thickness at center and slim 1.8" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Thermostat:

• Universal dual pin electric cooling fan powering thermostat switch.

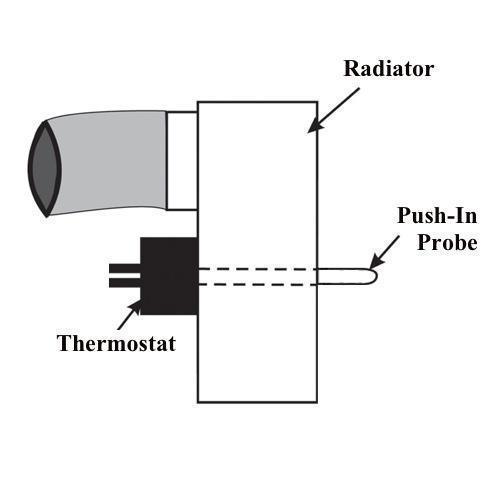

• Solid brass push-in fin probe temperature sensor can be cut to size.
• Preset to power fan or 12v accessory at the selected temperature.
• Probe pins the switch to radiator, engine or transmission cooler fins.
• Measures temp of auto liquids including oil, water and coolant fluid.
