Coolerguys AC Powered Blower Fan with Exhaust Vent Bracket & Thermal Controller - High Performance Cooling for PC, Electronics, and Server Rooms

Product Description

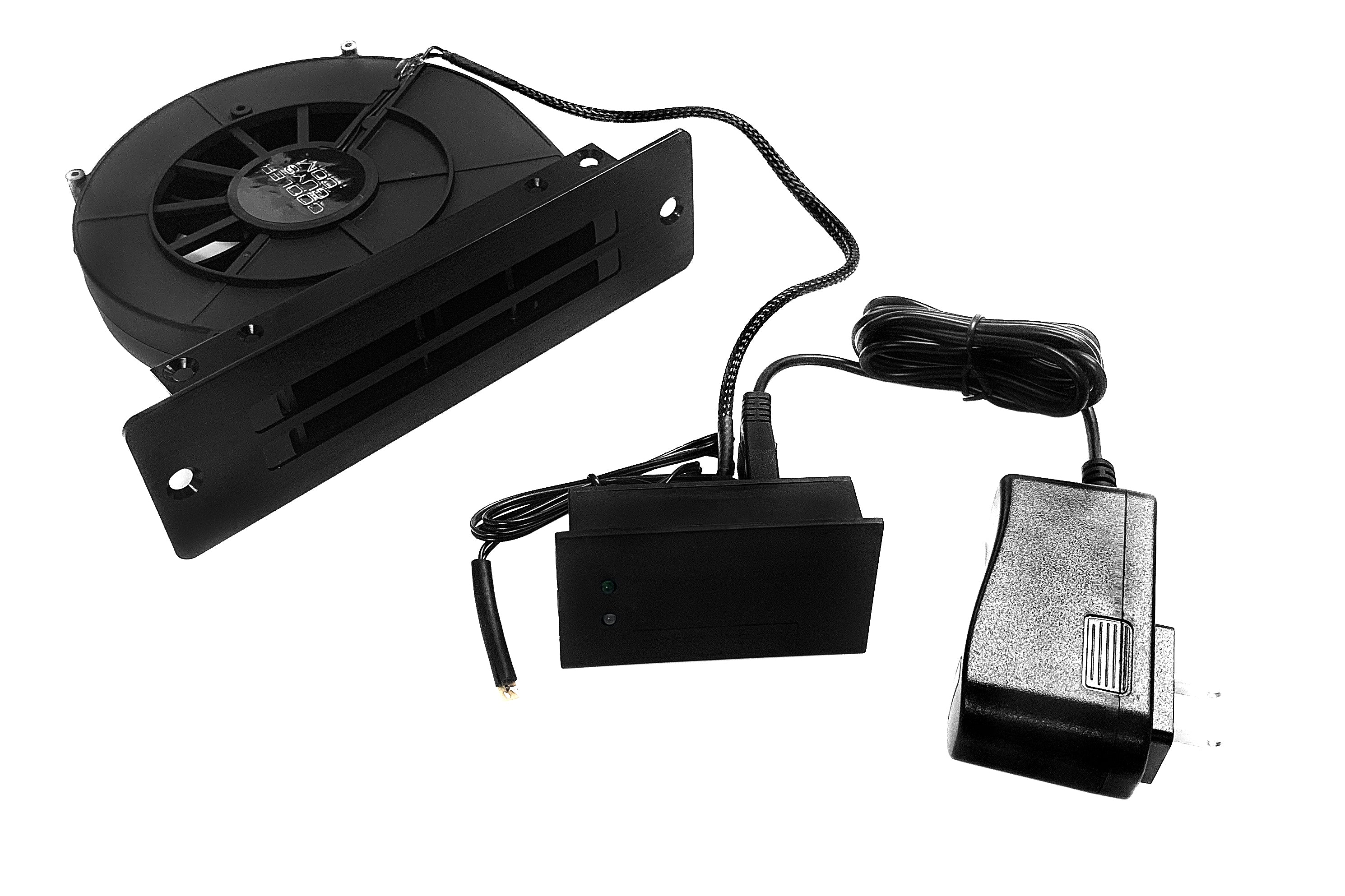

Coolerguys AC Powered Blower Fan with Exhaust Vent Bracket & Pre-Set Thermal Controller

840556004028

Coolerguys Vented Bracket / 840556003748

All black aluminum design with

brushed faceplate
Dimensions: 175x51x26mm
Includes 2 bolts w/spacers & 2 screws to mount our blower fan as well as 2 black wood screws for mounting the bracket.

/ 840556094272
Fan Size: 140x137x25mm
Bearing Type: Dual Ball
Rated Voltage: 12v
Rated Current: 0.16A
Rated Power: 2.16W
Rated Speed: 1200 RPM±10%
Air Flow: 22 CFM
Static Air Pressure: 5.6 mmAq(InchH20)
Noise Level: 22 dB(A)
Life Expectancy: 50,000 Hours @ 25C

/ 840556098690
This controller has 2 functions.
Continuously power up to 500ma (with included adapter) worth of devices when the switch is in the up position (top green led will be lit)

Thermally control up to 500ma (or 2A with bigger power supply) worth of devices when the back switch is in the bottom

position, when the temperature is >=88F(31C) it will power on the 3pin ports and stay powered on until the temperature falls below 81F(27C)



/ 840556087977
Powers the thermal controller and fan from a standard 2 prong AC outlet, compatible with 110v and 220v AC (may need to adapt the plug to your region)

Want to add a second blower fan and assembly? You can buy just the or the just a bracket for intake holes here.



We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
