Dynatron S3 Intel 4677 1U Server CPU Cooler - High Performance Cooling Solution for Data Centers & Server Racks

Product Description

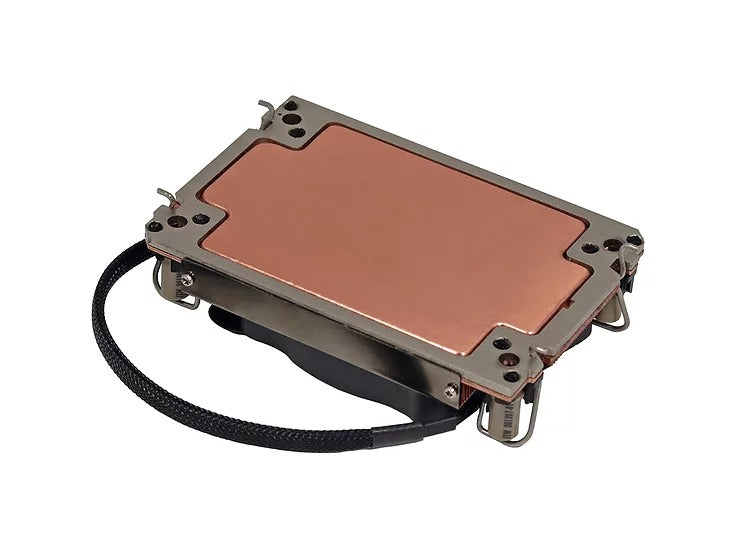

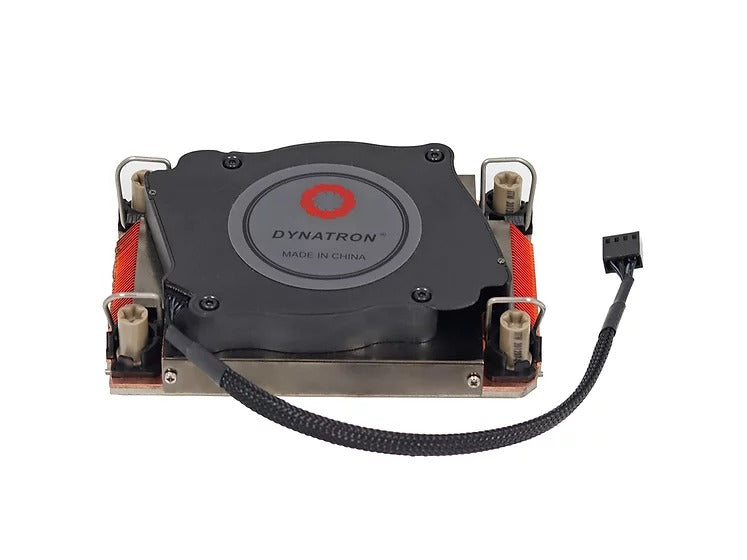

Dynatron S3 Intel 4677 1U CPU Cooler

840556074816

Recommend for Intel® Sapphire Rapids Processor, Socket FCLGA 4677, Active Cooler for 1U Server and up, Copper Heatsink with Vapor Chamber Base, Steel Dual-Outlet PWM Blower, Support 205 Watts CPU Power Heat Dissipation.

PRODUCT SPECIFICATIONS

• CPU Support: Intel
• CPU Socket: FCLGA 4677
• Solution: 1U Server and Up
• Dimensions: 118.0 x 80 x 27 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/ Signal Output)
  Pin#4- Blue (PWM)

• Mounting Method: Intel LGA 4677 standard Mounting Kits

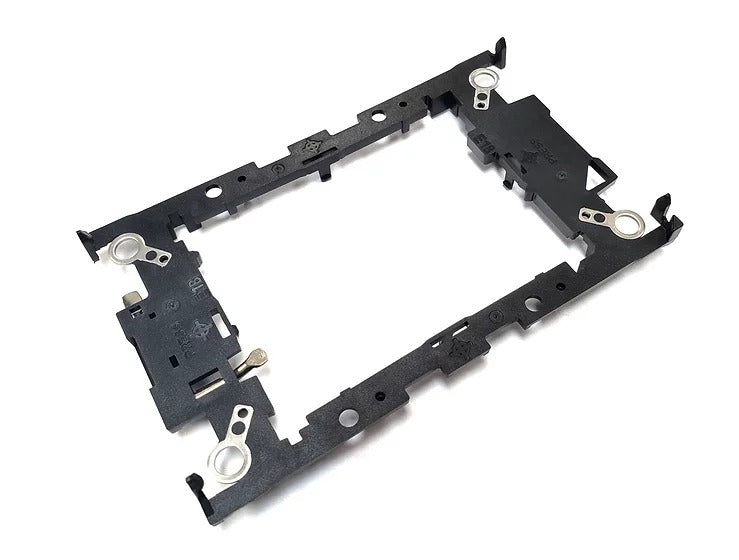

• Package Carrier: PHM Package Carrier is included
• Thermal Grease: SHIT-ETSU 7762 pre-printed
• Fan Dimension: 80 x 13 mm
• Speed: At Duty Cycle 0~20%: 2000 ± 200 RPM

  At Duty Cycle 50%: 4900 ± 10% RPM
  At Duty Cycle 100%: 8600 ± 10% RPM


• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 20%: 1.08 W

  At Duty Cycle 50%: 4.7 W
  At Duty Cycle 100%: 23.45 W


• Air Flow: At Duty Cycle 20%: 5.59 CFM

  At Duty Cycle 50%: 14.76 CFM
  At Duty Cycle 100%: 26.25 CFM

• Noise Level: At Duty Cycle 20%: 23.3 dBA

  At Duty Cycle 50%: 43.5 dBA
  At Duty Cycle 100%: 62.2 dBA

• Air Pressure: At Duty Cycle 20%: 3.69 mm-H2O

  At Duty Cycle 50%: 25.28 mm-H2O
  At Duty Cycle 100%: 89.80 mm-H2O

• Material: Copper 1100 Heatsink with Vapor Chamber Base
• Weight: 424.6 g

• UL Certificate
