Dynatron Top Down 2U G555 CPU Cooler for Server & Workstation - High Performance Cooling Solution for Data Centers and IT Racks

Product Description

**END OF LIFE**

840556074007

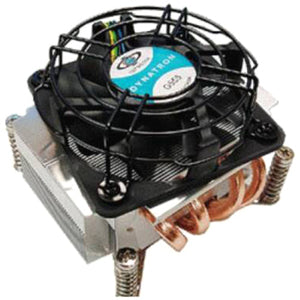

The Dynatron G556 Next Gen. Intel Xeon 2U Server PWM CPU Cooler is designed for high performance Socket LGA 1366 Next Generation Xeon processors. It uses a PWM controlled fan for optimal fan speed control. The copper base, quad heat pipes and aluminum cooling fins make this a very efficient cooler.

CPU: Next generation Intel® Xeon® Processors on LGA1366 socket
Overall Dimension: 94.0 x 89.5 x 64.0 mm
Weight: 460 g
Material: Copper Base & Aluminum Fins with Heatpipes embeded
Fan Dimensions: 77x77x20 mm
Speed: At Duty Cycle 0%
Bearing: 2xBall
Rated Voltage: 12 V
Power: 0.54W - 9W
Air Flow: 8.36 - 53.9 CFM
Noise Level: 20.6 - 51.4 dba
Lead Wire Pin Out:
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
