Lian Li 5-Port SATA II RAID PCIe Controller Card (Model IB-01) - High-Speed Data Transfer for PC Builds & Server Upgrades

Product Description

No longer available......

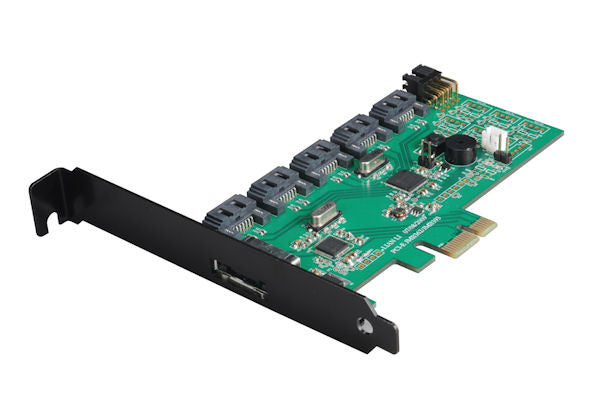

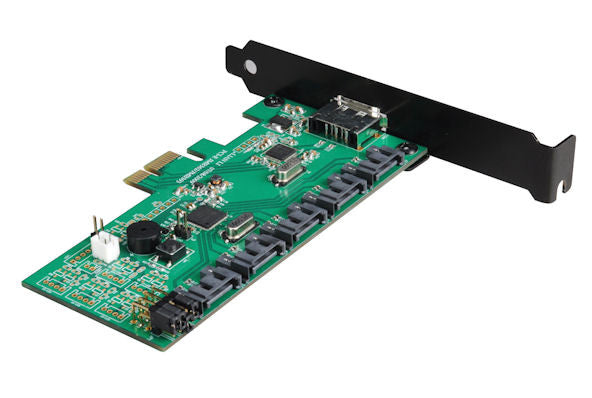

Lian Li 5 port SATA II Raid PCI-E Controller Card Model : IB-01

PCI-E 1X interface

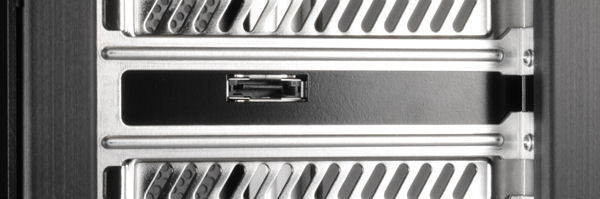

1Port e-SATA

5port SATA II interface Support RAID 0 / 1 / 3 / 5 / 10 / JBOD
PCI Express interface to 1 Port e-SATA II Host Controller & 5-ports Serial ATA II Port Multiplier with RAID function support

Features:

• Supports 1-Lane 2.5Gbps PCI Express bus
• Internal native interface multiplexed to SATA II
• Supports 1-port 3.0Gbps e-SATA II interface
• Supports 5-port 3.0Gbps SATA II interface
• All registers accessible in unified memory space
• Automatically speed negotiation for 3.0Gbps or 1.5Gbps
• Supports Native Command Queue (NCQ)
• Supports Hot-Plug
Compliance
Compliant with Serial ATA II Port Multiplier Spec. Revision 1.1
Compliant with Serial ATA II PHY Electrical Spec. Revision 1.0
Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 2.5
Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.0
Compliant with PCI Express Base Spec. Revision 1.0a
Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 1.0a
Compliant with Serial ATA II: Extensions to Serial ATA 1.0a Revision 1.1
General
Output swing control and Automatic impedance calibration for both PCI Express and SATA II PHY
Supports a slave SMBus interface (follow System Management Bus Specification Revision 1.1)
Integrated 8-port SATA II PHY
Supports 8-port 3.0Gbps SATA II interface
Output swing control and automatic impedance calibration for SATA II PHY
