Streacom DA6 Open Frame ITX PC Case - Chrome & Black - Compact Mini Gaming & HTPC Builds for Small Spaces

Product Description

840556075363 Streacom DA6 Open PC ITX Case STDA6C - Chrome
840556075370 Streacom DA6 Open PC ITX Case STDA6B- Black

PRODUCT DESCRIPTION:

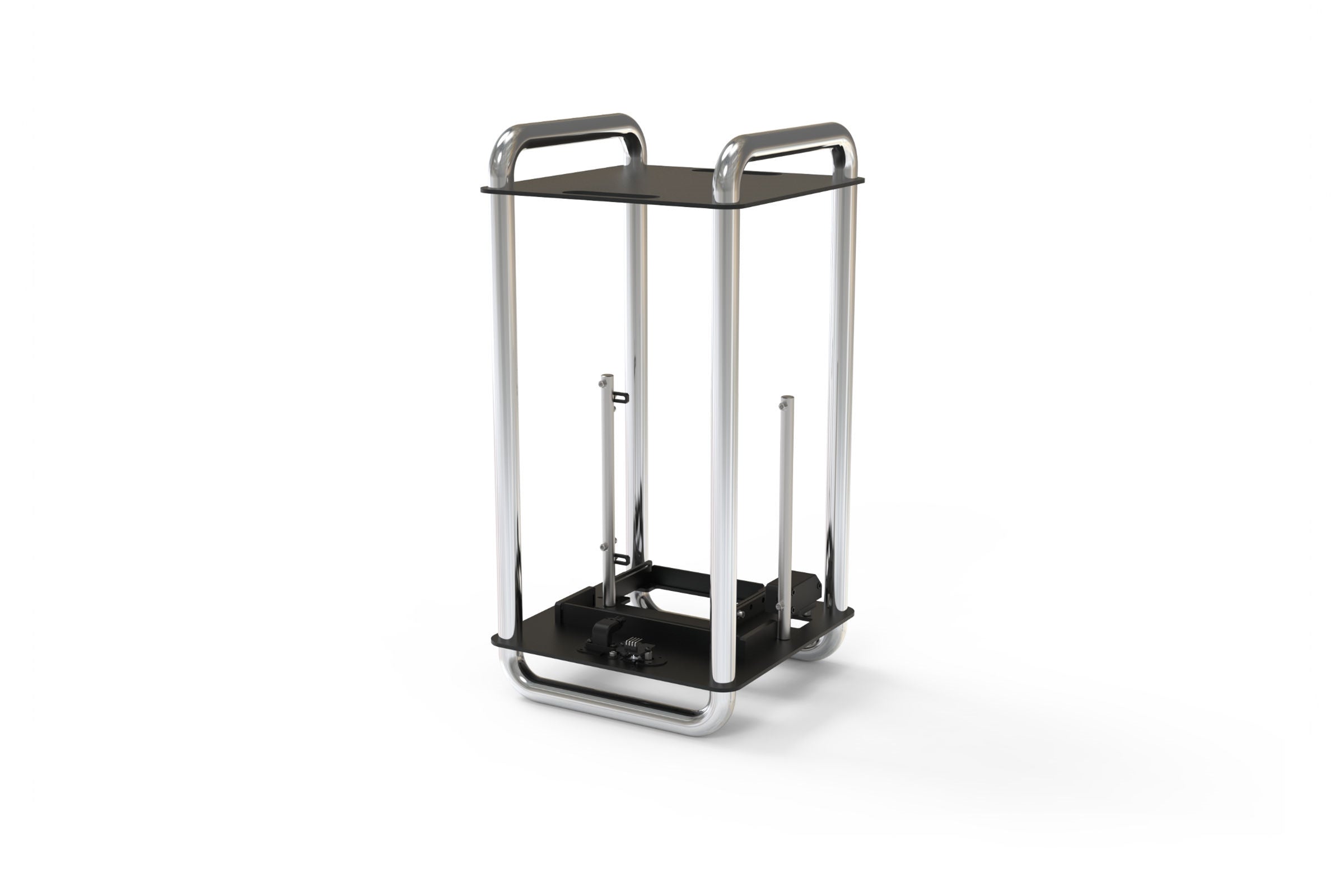

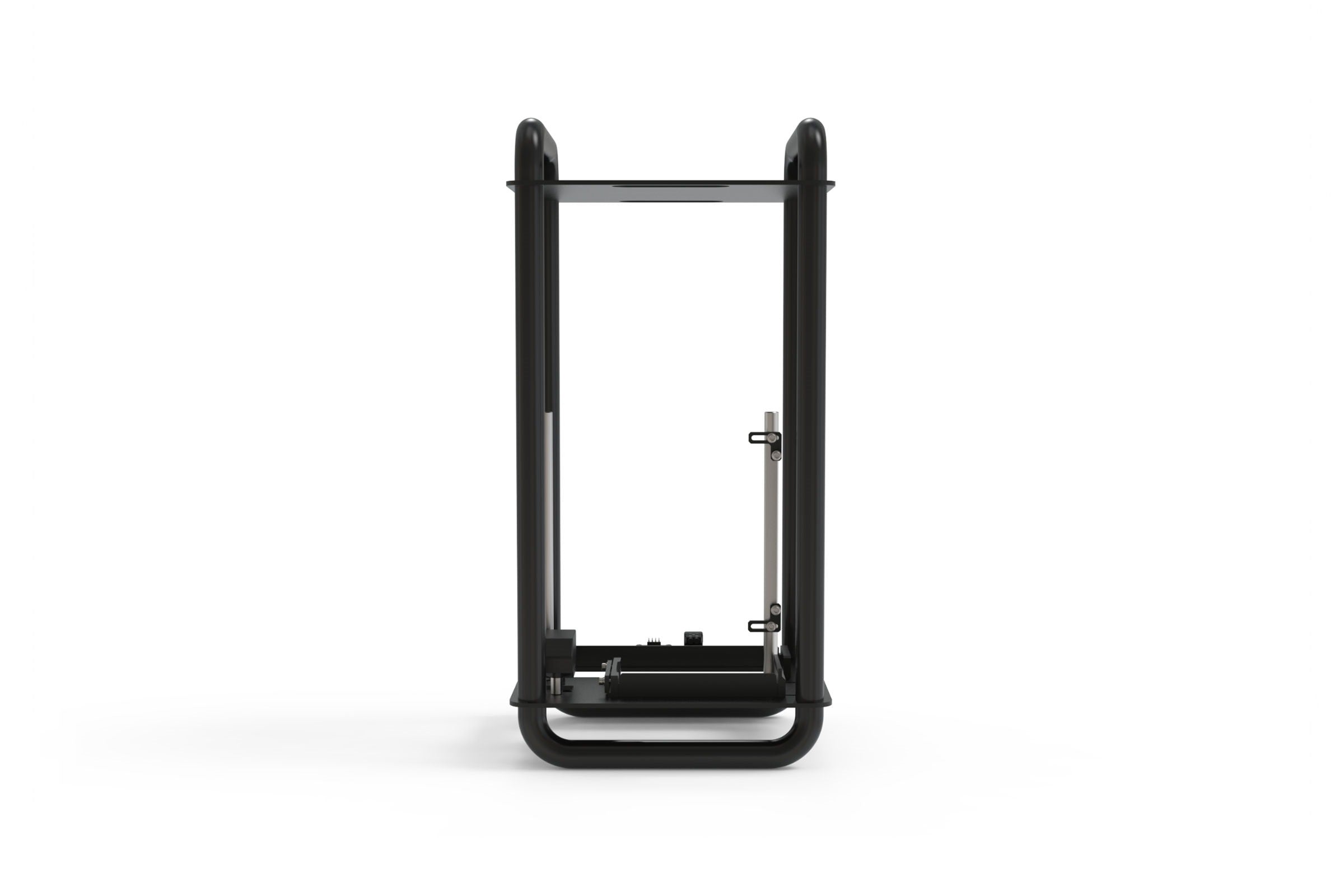

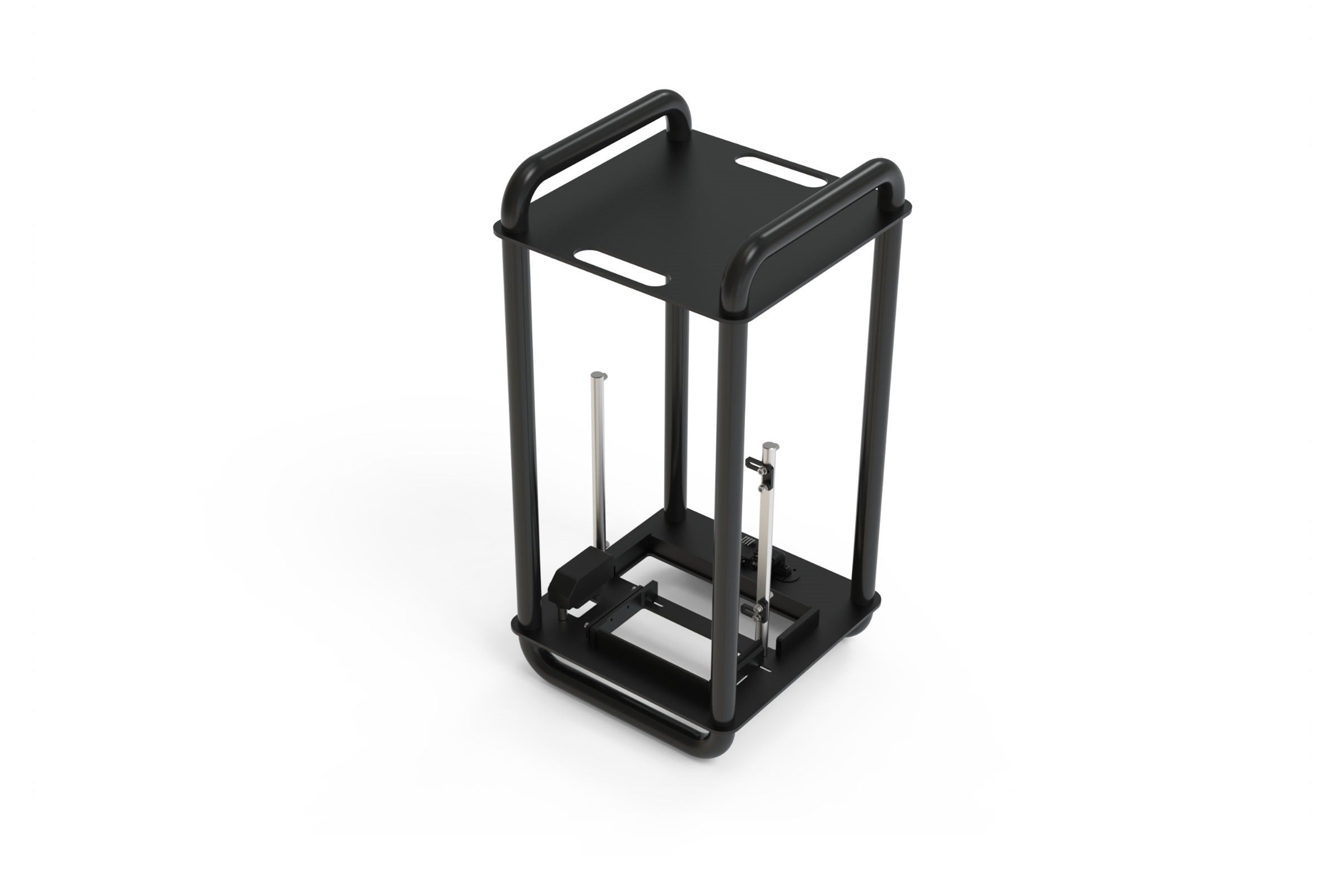

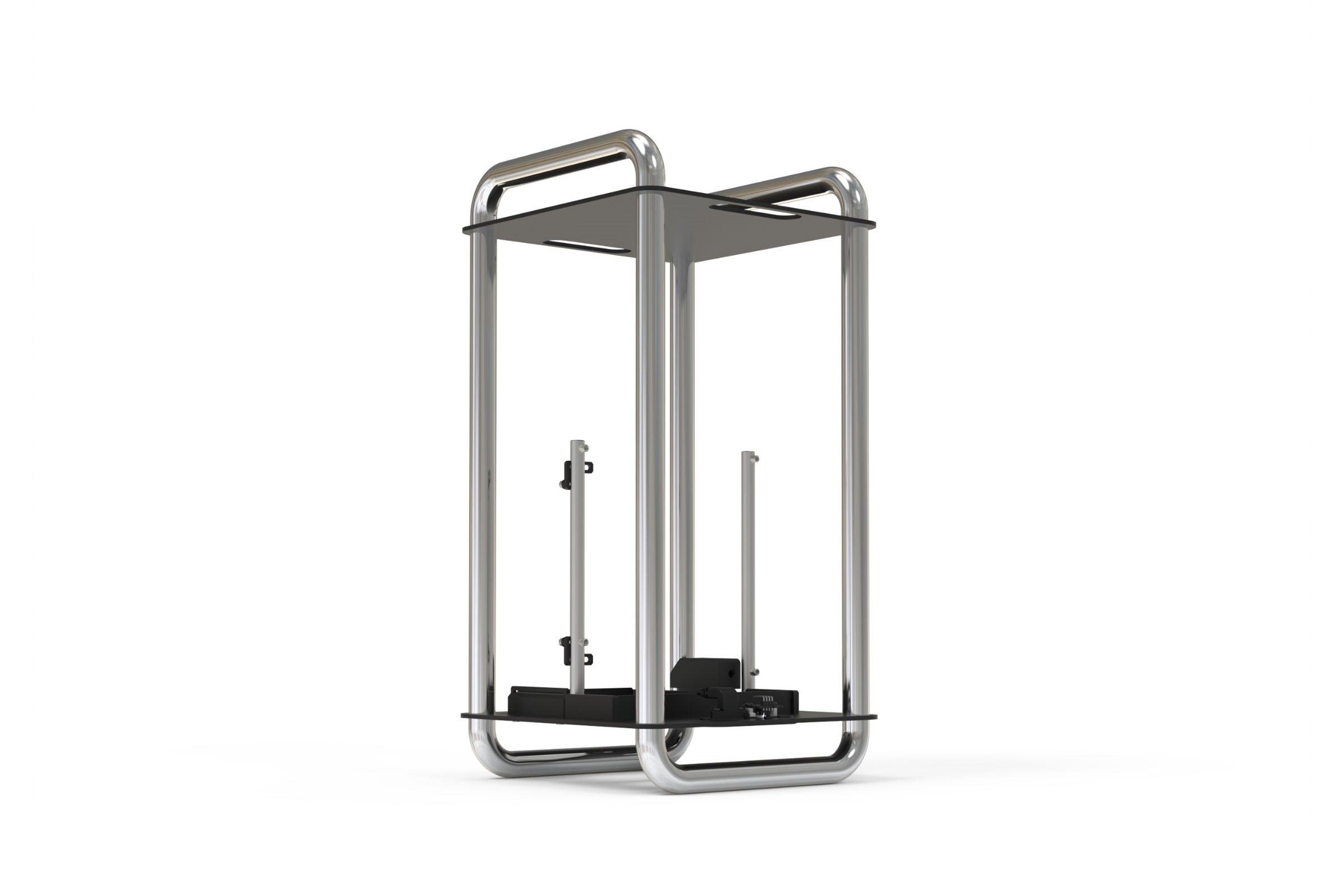

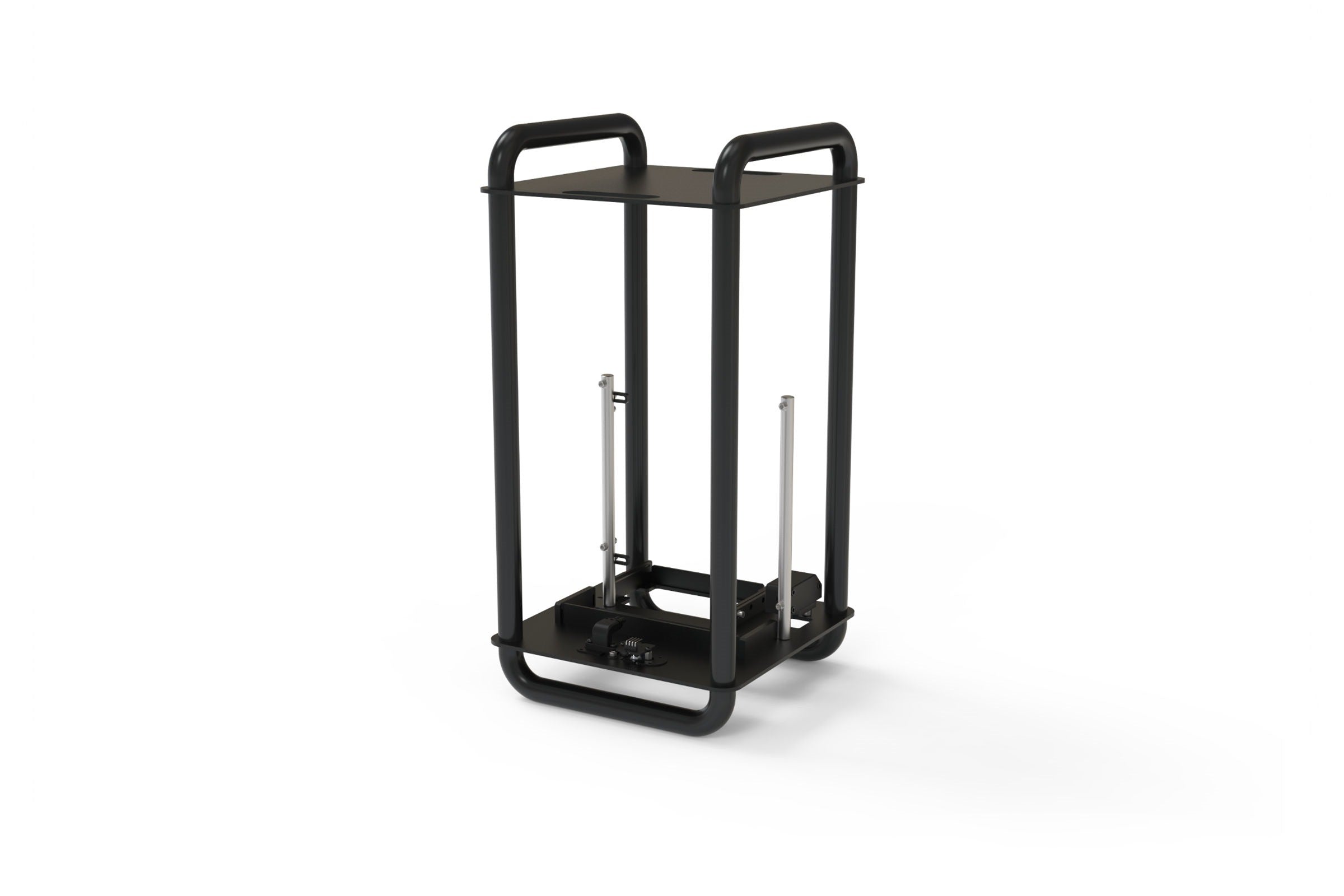

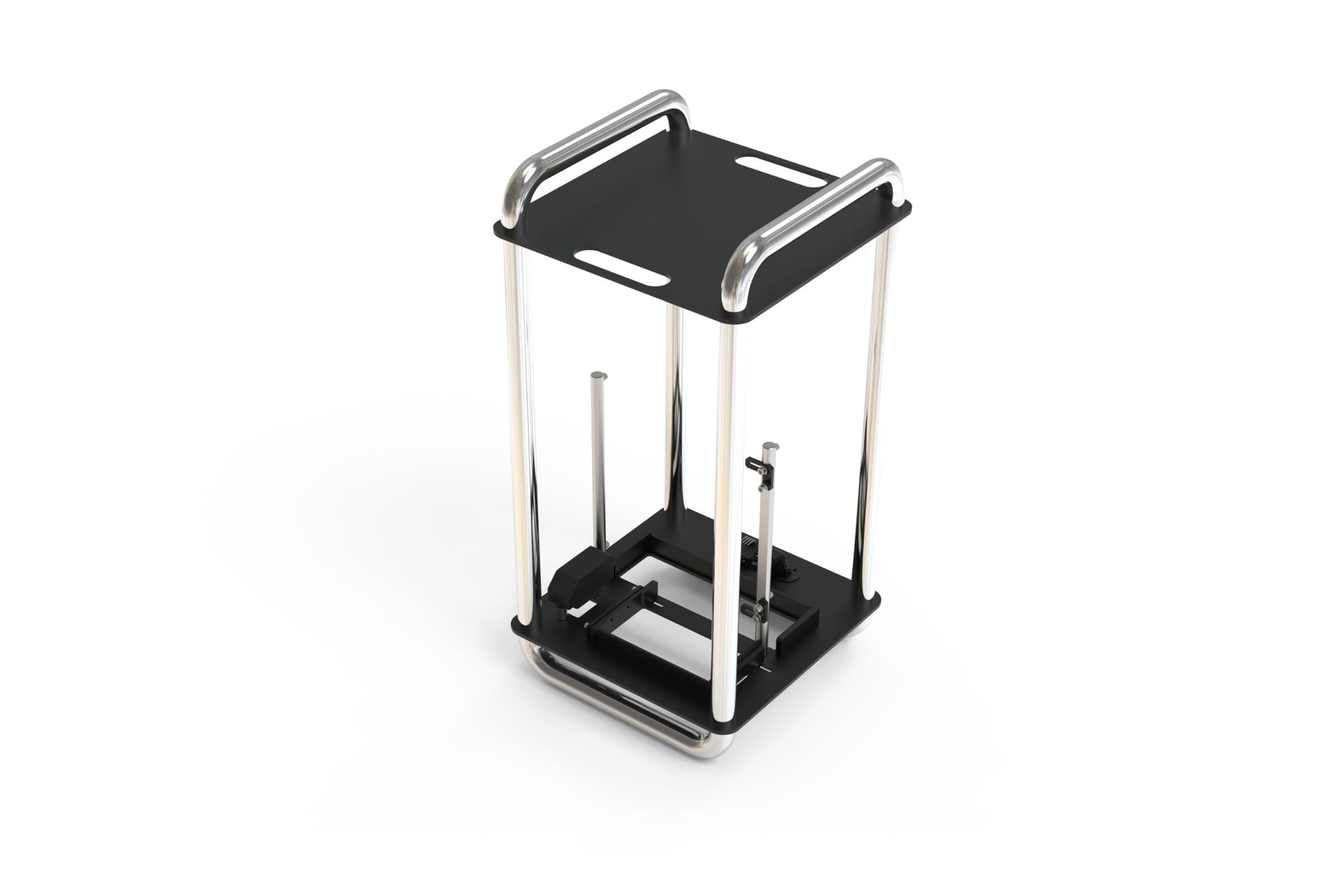

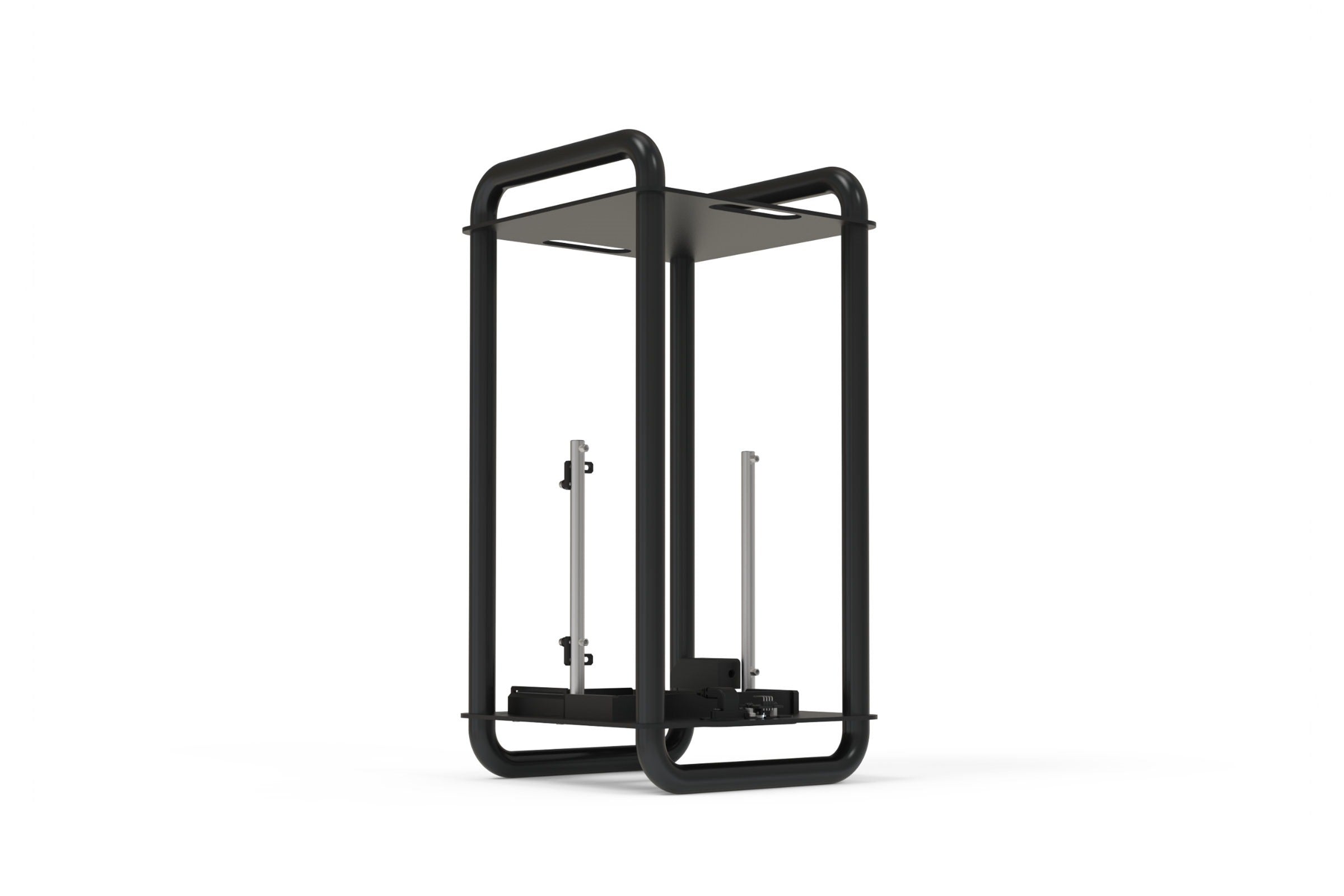

The DA6 is a vertical open frame ITX case designed to provide the ideal platform for showcasing computer components. This open-frame design, combined with the unique approach to mounting hardware, means the DA6 has incredible support for the ever-increasing size and cooling demands of gaming hardware whilst still maintaining SFF conditions. The main structure is formed from 19mm stainless steel tubes, creating an unbroken wrap around frame that defines the body, feet and handles. This tubular theme continues to many other elements of the case to create a cohesive design. Beyond simply a style choice, the tubes play an integral part in not only the structure but functionality, serving as support surfaces for fitting components when combined with the universal brackets. The open-frame design not only allows for unrestricted airflow but combined with the ability to utilize 4 sides for mounting, gives unrivaled cooling potential. Each side has a tube to tube aperture of 150mm (166mm without the brackets) ideal for 140mm fans (or smaller) to be mounted between them. Staying within the confines of SSF volume whilst including support for ever-larger GPUs meant introducing compromises that we didn't just want to concede, so we decided to release 2 versions of the DA6, the standard (just called DA6) and the DA6 XL. The XL maintains the same footprint but the added height allows for GPUs up to 358mm in length leaving room for even the largest cards and some breathing room for potentially bigger next-gen cards.

PRODUCT FEATURES:

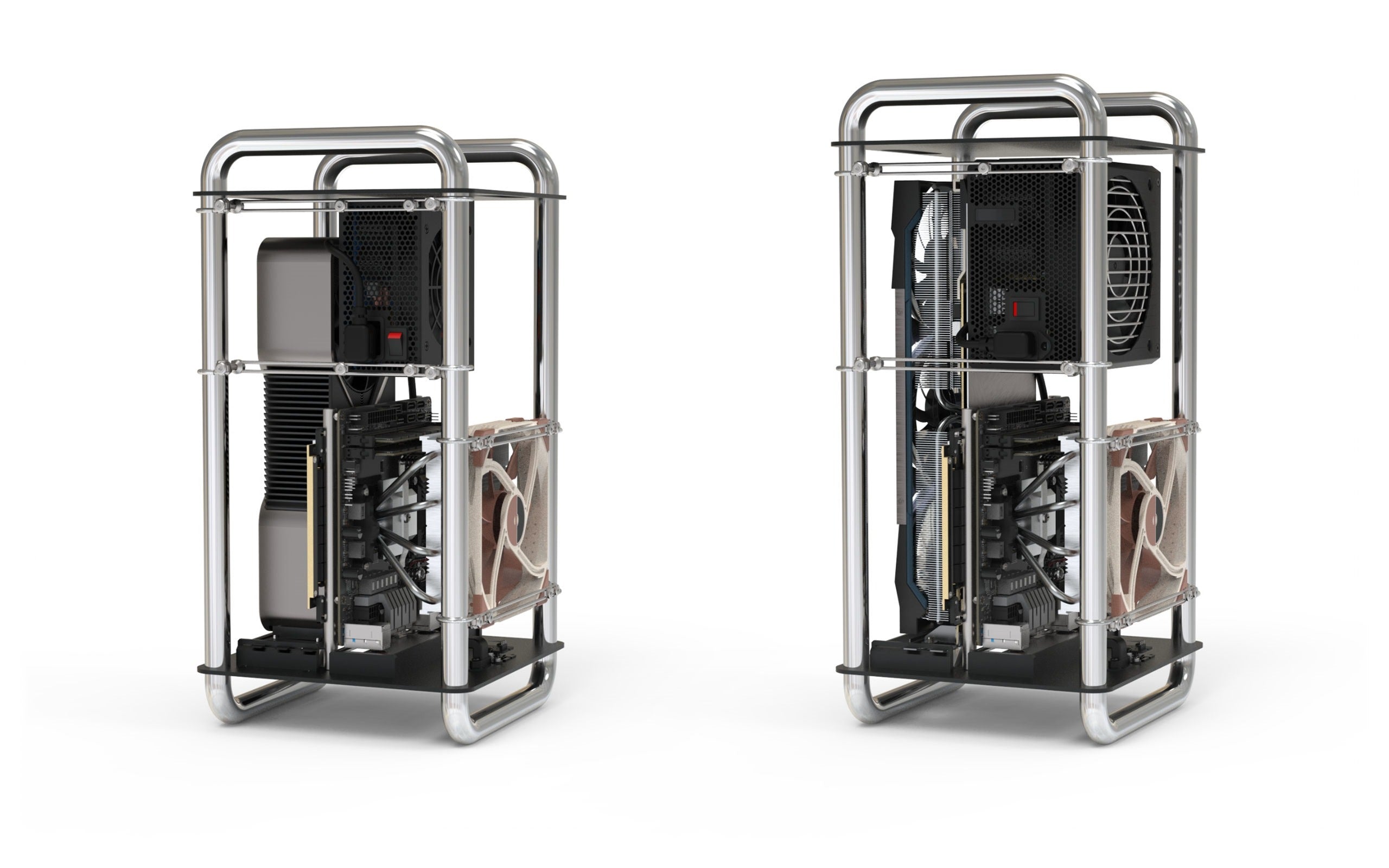

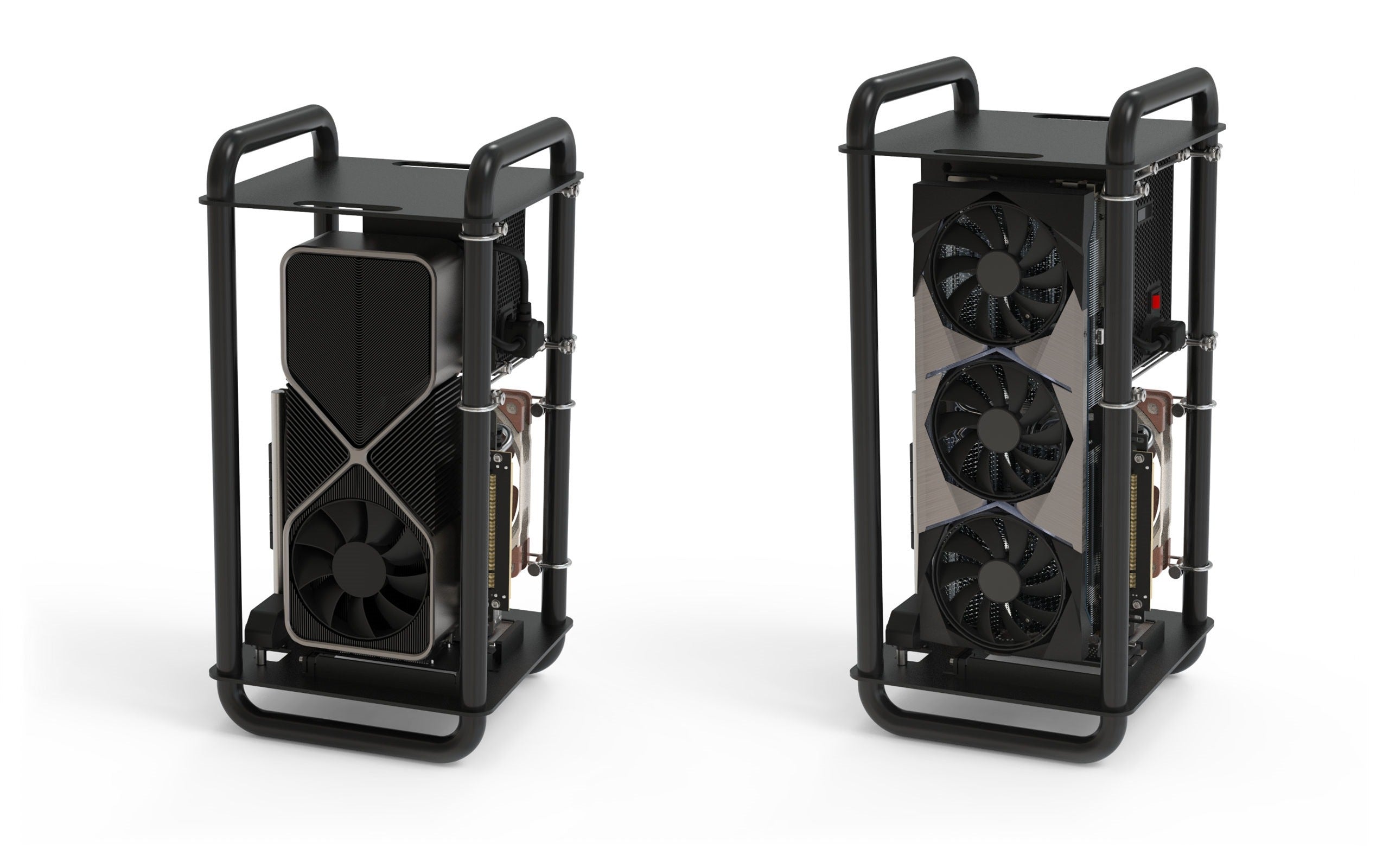

• Allows for oversized cards to be installed whilst still maintaining the same footprint.
• Creates a cohesive and simple design that whilst minimalist, doesn't feel cheap thanks to the use of premium materials and finishes.

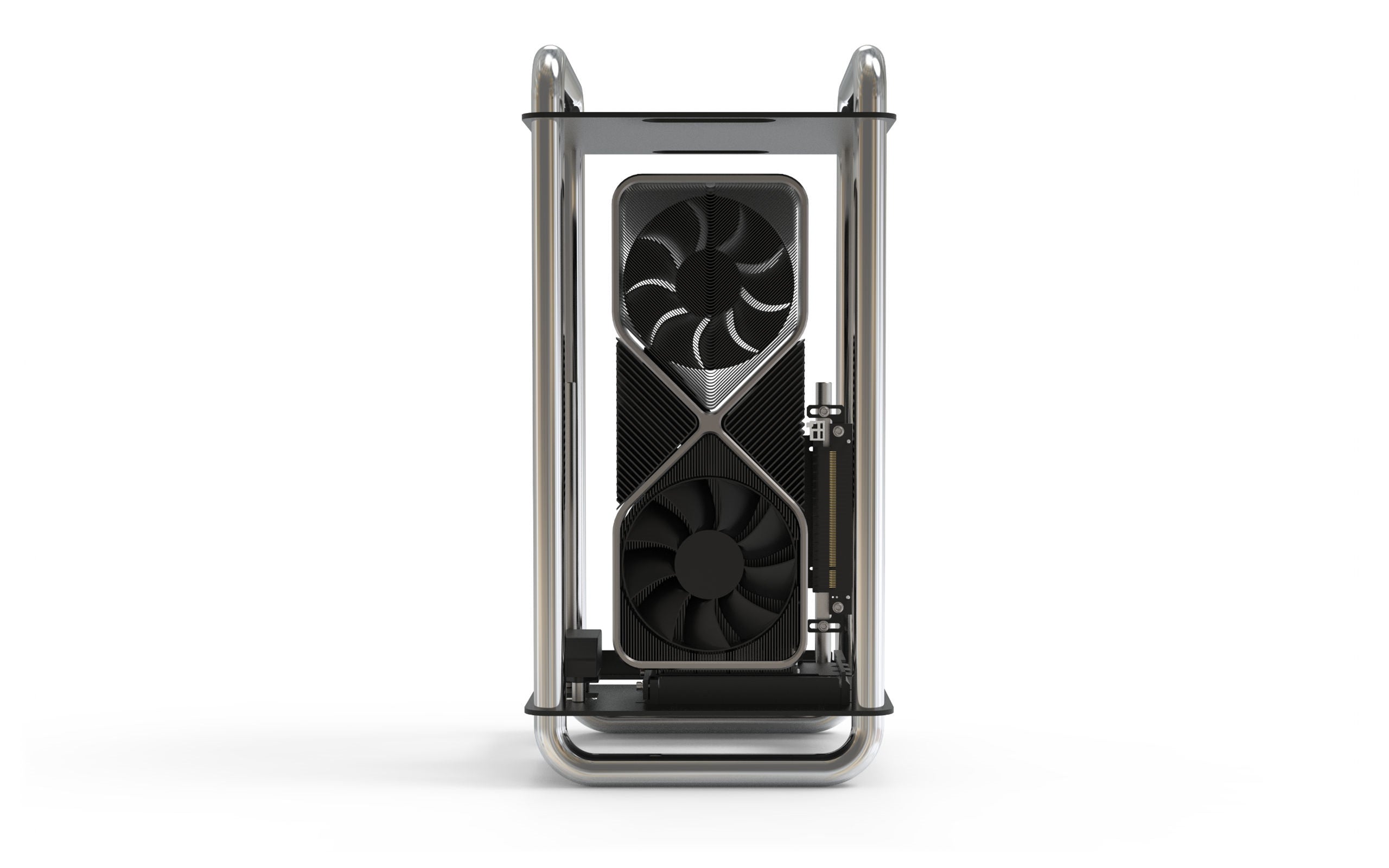

• Gives the GPU x-axis movement for precise alignment of the card to the centerline of the case.
• The DA6 has plenty of room for a large downdraft cooler with 105mm in height up to the edge of the case but there is nothing stopping you from going all out with the tallest tower cooler you can get your hands on.

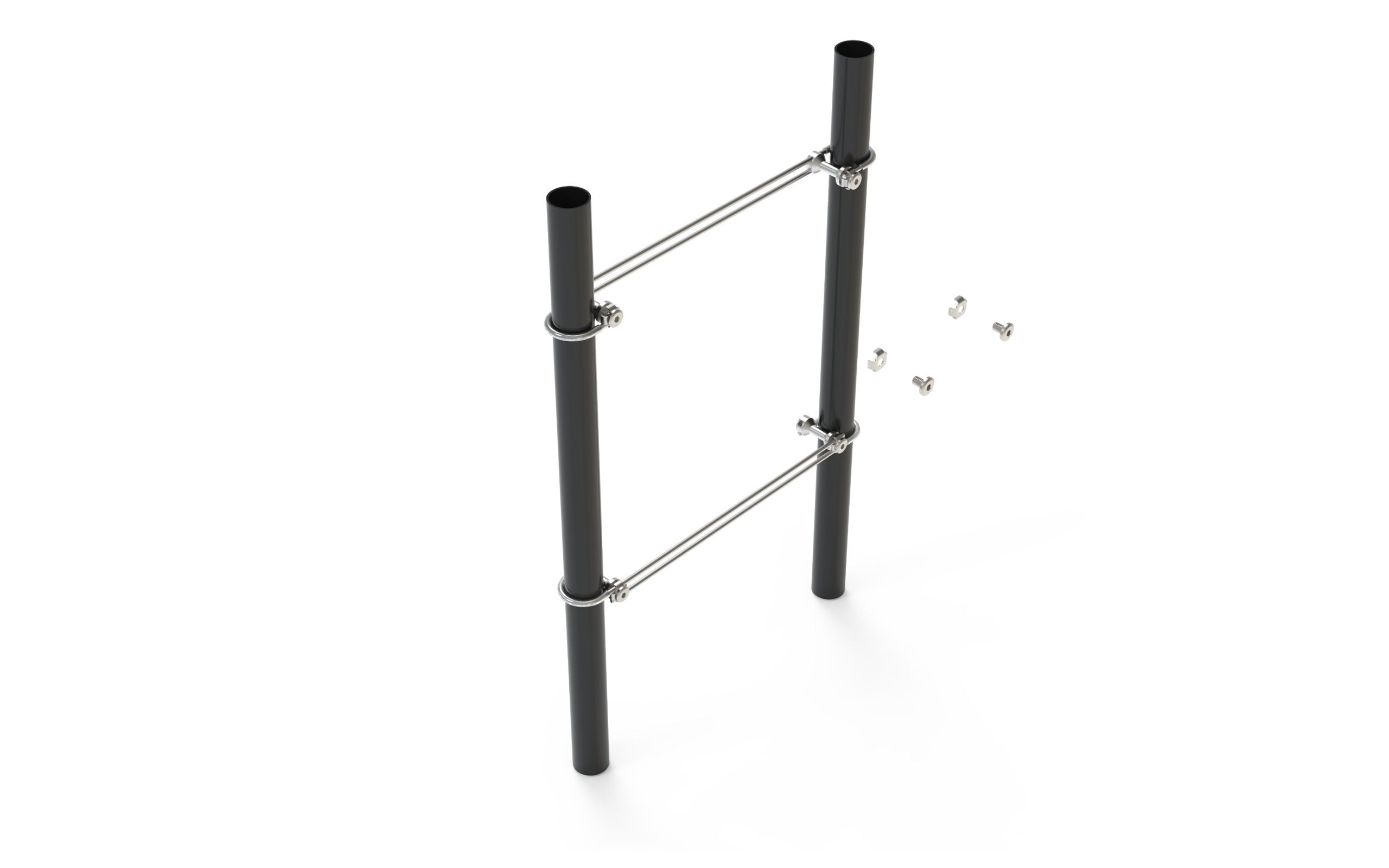

• Free to move along the entire length of the case and on all 4 sides, they allow for extremely granular placement of components and can accommodate the mounting of virtually anything as long as it physically fits (being an open case, good chance it will), opening up a whole world of possibilities.

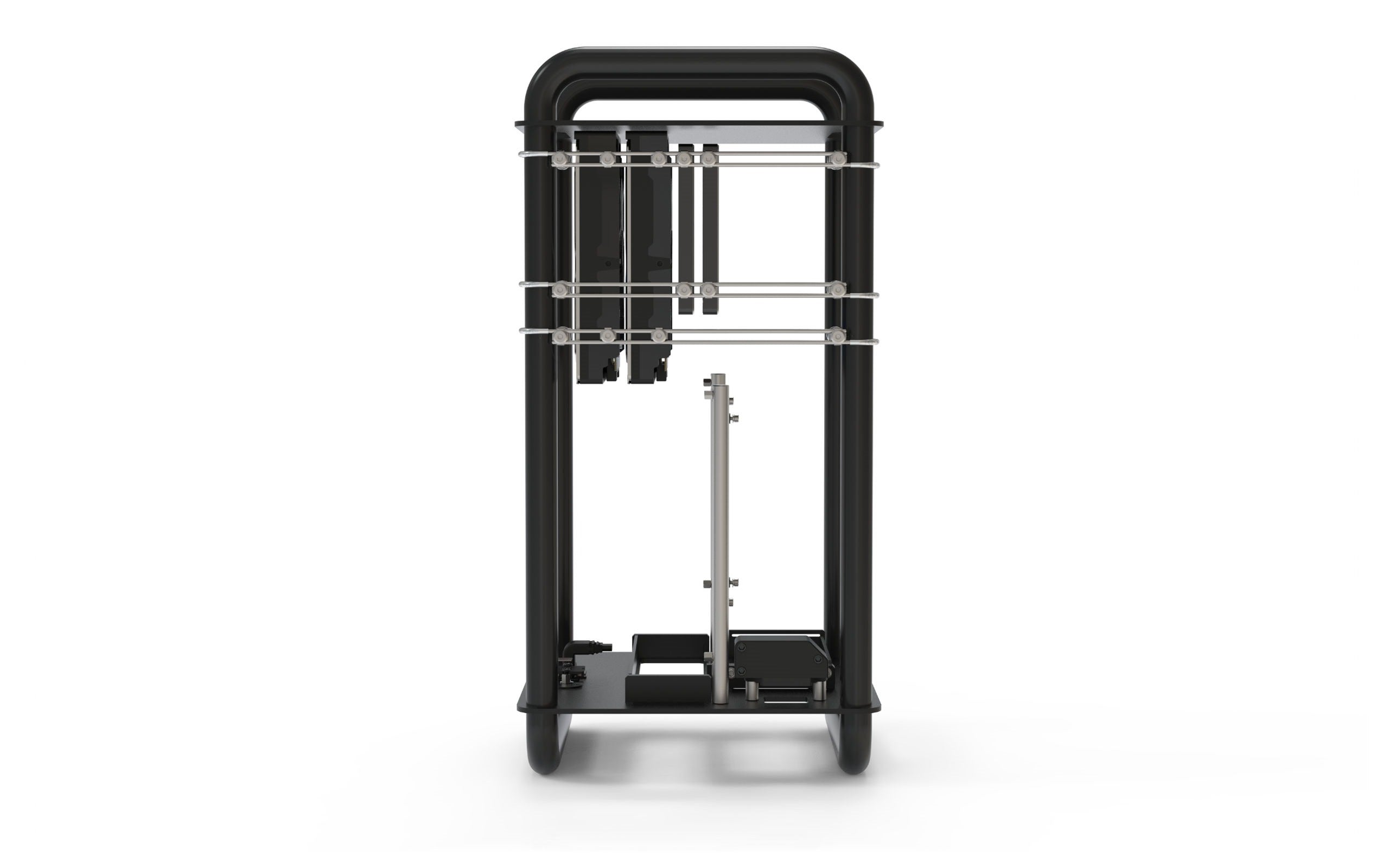

  The brackets support 2.5″, 3.5″ drives, SFX and ATX PSUs with incredible versatility in terms of placement and orientation.

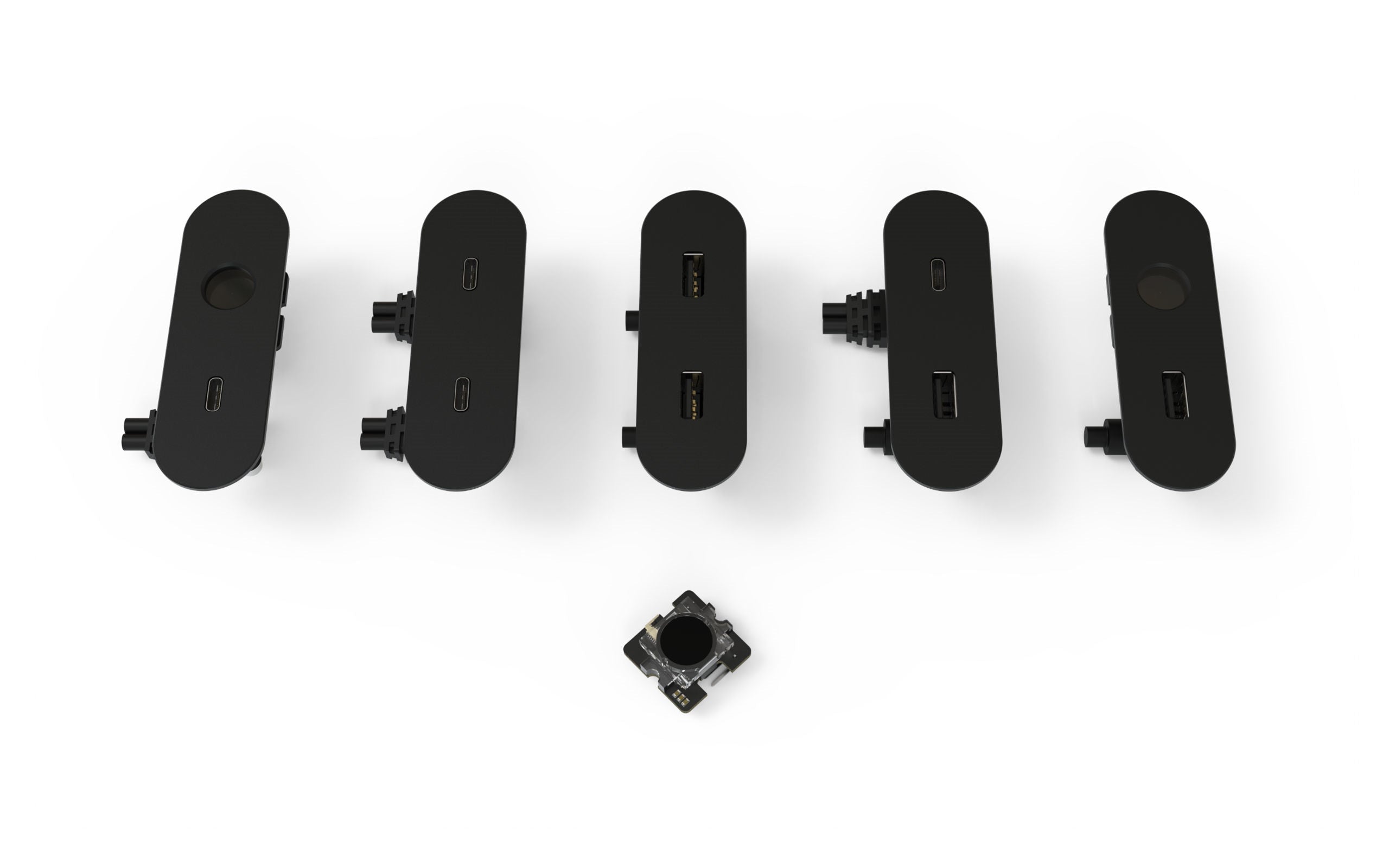

• One of the features included on all 'D' series cases is port modularity. This allows for improved case personalization and reduces obsolescence by providing an upgrade path for future standards.

• The DA6 comes fitted with a power button + type-c module, by default located on the bottom panel but it also features 2 additional module locations on the top panel. These can be used as an alternative to the bottom placement or used to add additional ports according to your exact needs and motherboard port features.

  We are committed to this modular platform and will build upon it by not only adding more port options but additional functionality such as biometric authentication.

PRODUCT SPECIFICATIONS:

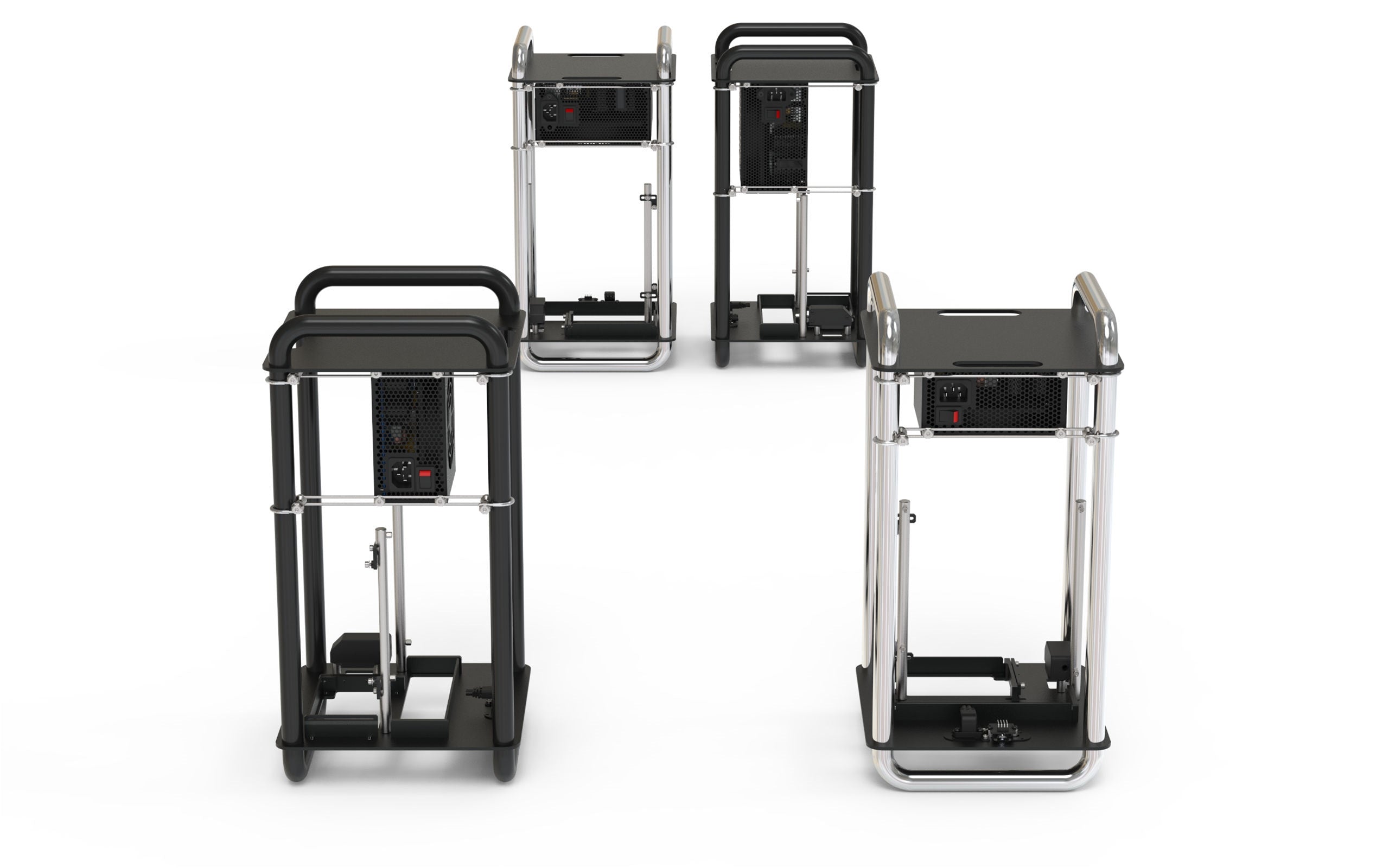

• Colors: Black/Chrome
• Model No: STDA6B (Black) / STDA6C (Chrome)
• Case form factor: Mini-ITX
• Motherboard support: Mini-ITX
• Max CPU cooler height: 105 mm
• Max graphics card length: 323 mm
• Radiator support: 120, 140, 240 and 280 mm
• Fan support: 140 mm or smaller, universal bracket max 150 mm, tube to tube max 166 mm
• Drive bay capacity: 2x 3.5” and 4x 2.5” *
• PSU support: SFX, SFX-L and ATX, 190mm max length
• External ports: Default Type-C 3.0, space for 3 additional modules in total
• Dimensions: 10 x 10 x 19inches
• Material: 304 Stainless Steel and 6063 Aluminum
• Weight: 8 lbs.
