Dynatron Q11P 4U Active CPU Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

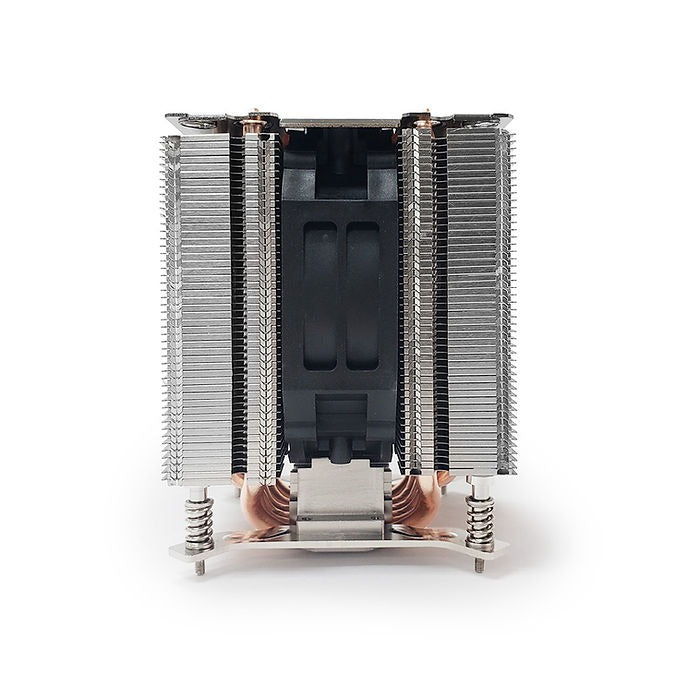

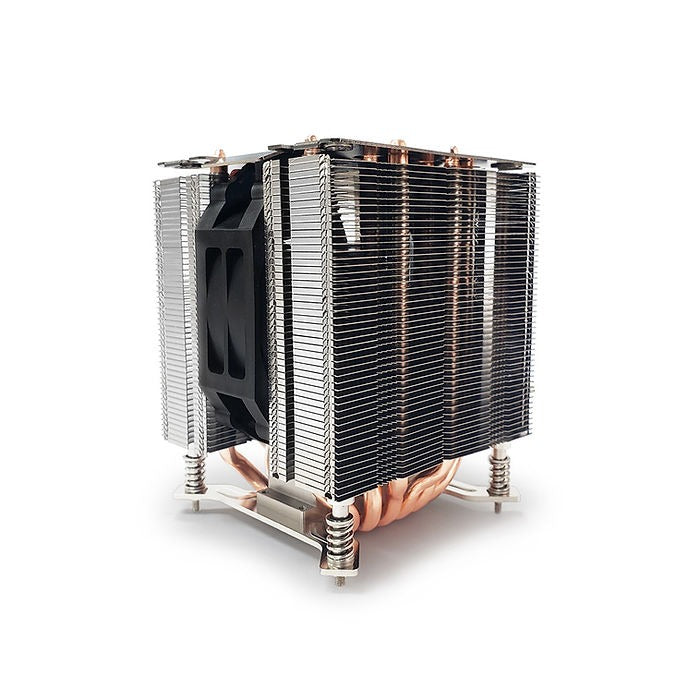

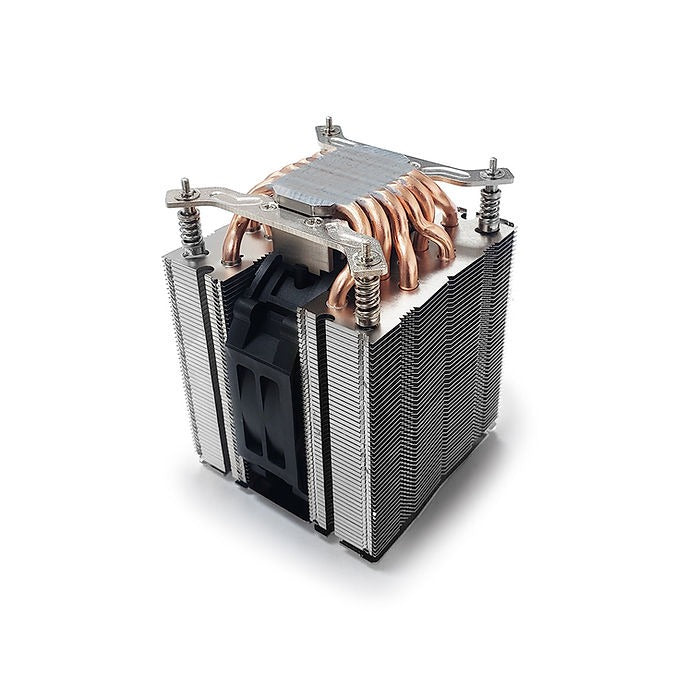

Dynatron Q11P 4U Active Cooler

840556076834

• Recommend for Intel® CPU as following
    Intel Core 12th -15th Gen, Socket FCLGA1851/1700
• Active Cooler for 4U Server & Up

PRODUCT SPECIFICATION:

• Dimension: ( LWH) 95 x 95 x 130 mm)

• Weight: 710 g

• Material: Heatpipes with Aluminum Base and Aluminum Fin Stack

• Fan: 103 x 30 Side-blow fan with PWM Function

• Mounting Method: Intel LGA1700 standard Mounting with Screw Sets

• Backing Plate: Included

• Thermal Grease: SHIN-ETSU X23-8079-2 pre-printed

• TDP Support: CPU Power 195 Watts @ 30C Ambient, 253 Watts @ 25C Ambient

FAN SPECIFICATIONS:

• Model Number: DF10330BU - PWM

• Dimension: 103 x 103 x 30 mm

• Bearing: Double Ball

• Rated Voltage: 12V

• Rated Speed:
  At Duty Cycle 0~20%: 1600± 200 RPM
  At Duty Cycle 50%: 2300± 10% RPM
  At Duty Cycle 100%: 3800±10% RPM

• Input Power:
  At Duty Cycle 0~20%: 0.10W
  At Duty Cycle 50%: 0.59W
  At Duty Cycle 100%: 4.15W

• Maximum Airflow:
  At Duty Cycle 0~20%: 30.64 CFM
  At Duty Cycle 50%: 25.26 CFM At
  Duty Cycle 100%: 35.03 CFM

• Rated Static Pressure:
  At Duty Cycle 0~20%: 1.66 mm-H2O
  At Duty Cycle 50%: 3.20 mm-H2O
  At Duty Cycle 100%: 8.61 mm-H2O

• Acoustical Noise:
  At Duty Cycle 0~20%: 18.6 dBA
  At Duty Cycle 50%: 29.8 dBA
  At Duty Cycle 100%: 41.4 dBA

• Lead Wire Pin Out:
  Pin#1- Black (-)
  Pin#2- Black (+)
  Pin#3- Black (Tachometer/ Signal Output)
  Pin#4- Black (PWM Control)

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.

[Dynatron Q11P 4U Active Cooler] Spec Sheet
