Scythe Slip Stream 120mm x 120mm x 25mm PWM & V.R. Selectable High Performance PC Cooling Fan SY1225SL12HPVS - Ideal for Gaming PCs, Workstations, and Computer Case Cooling

Product Description

*EOL*

Scythe  Slip Stream 120x120x25 PWM & V.R. Selectable Fan SY1225SL12HPVS

840556092506

FEATURES:

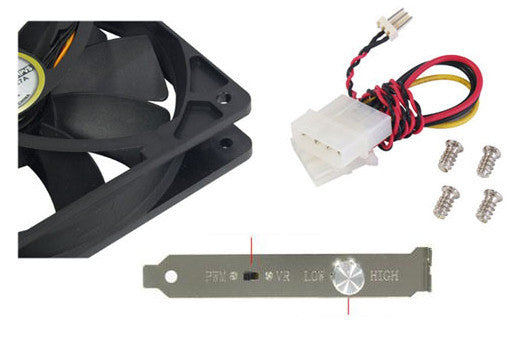

PWM & V.R Select:
user can switch the mode between PWM & V.R. (Variable Regulation; To manually control the fan speed) by sliding the switch on PCI bracket. 500~1500RPM.

This switch can be attached into any empty PCI Slot.

Small Center Hub & Wide Blade Type:
By reducing the dimension of the center hub and enlarging the blade surface area, high airflow is generated at a low RPM.

PWM Function:
In Order to take advantage of PWM function, please use the motherboard with PWM features build-in.

PWM function will not work if the fan is connected via 4 Pin peripheral connector or connected to 3-Pin fan port. In this case, the fan will spin at the maximum speed.

Connection to any third arty market fan controller with 3-Pin port, PWM function will not work but fan speed can be adjusted by the fan controller.

PRODUCT SPECIFICATIONS:
Fan Dimensions: 120x120x25mm
Rated Voltage: 12V
Rated Current: 0.27A
Fan Speed: 500+-30% ~ 1500+-10% RPM
Noise Level: 7.5 ~32 dBA
Air Flow: 24.5 ~ 81.6 CFM
Bearing: Sleeve
MTBF: 30,000 hrs

NOTES:  PWM Fans are not variable speed control fans on their own.  An integrated circuit varies the speed and airflow of a fan using a pulse-width-modulated (PWM) voltage in response to temperature or system commands send typically by a computer motherboard. You can use them to run at full speed from an external supply if you adapt the plug.
