90W 10-11 Inch Electric Radiator Fan Kit with Push-In Fin Probe Switch & Wiring - Perfect for Car Cooling System, Truck Engine Cooling, and Automotive Radiator Repair

Product Description

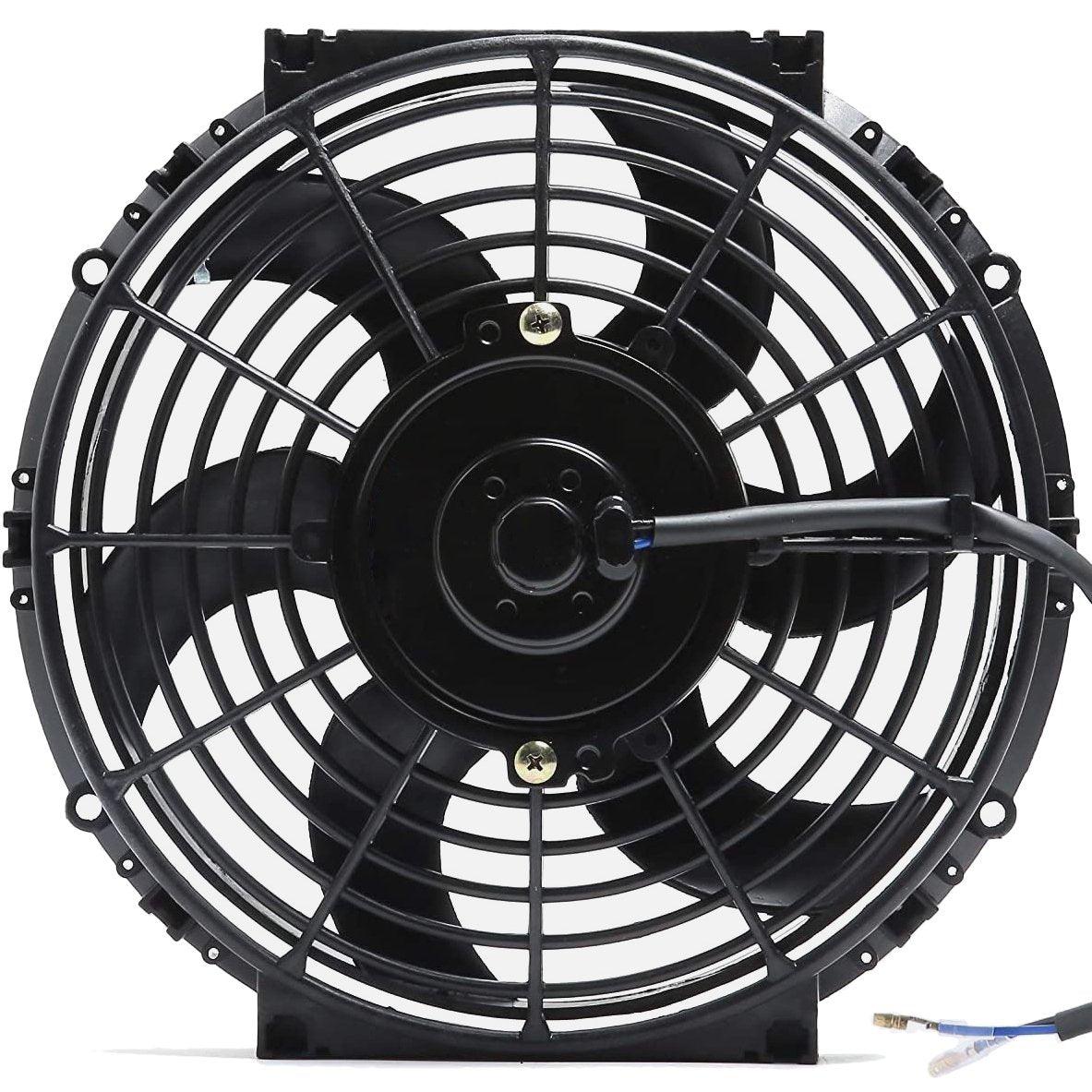

Electric Fan:

• Universal 12 volt high performance 10 inch slim electric cooling fan.
• Upgraded 90 watt motor draws 9 amps, producing over 1861 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 11.5" x 10.75" x 2.5" thickness at center and 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Thermostat:

• Universal dual pin electric cooling fan powering thermostat switch.
• Modifiable 3" inch solid brass push-in fin probe temperature sensor.
• Preset to power fan or 12v accessory at the selected temperature.

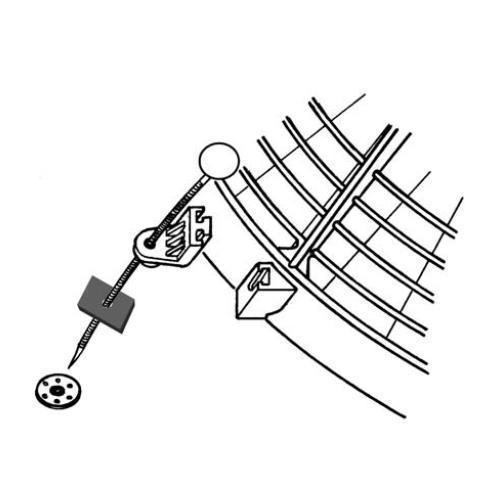

• Probe pins the switch to radiator, engine or transmission cooler fins.
• Measures temp of auto liquids including oil, water and coolant fluid.
