Dynatron F185 1U Server PWM Copper CPU Cooler for AMD Opteron Socket F 1207 - Perfect for Data Center Cooling & Server Rack Installation

Product Description

Out of Stock.

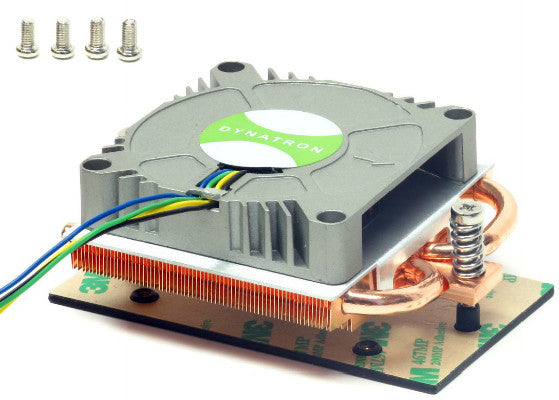

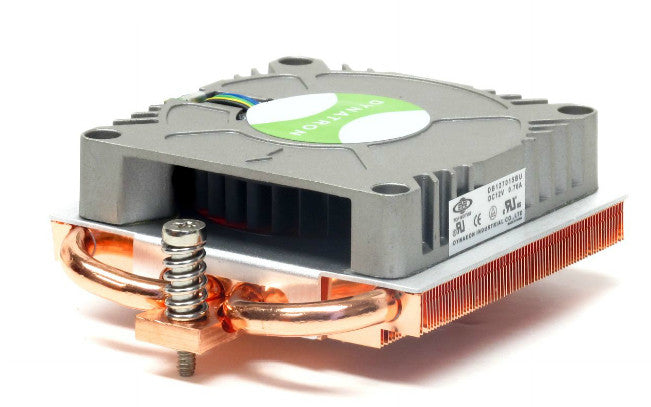

Dynatron F185 1U Server PWM Copper CPU Cooler - Opteron / Socket F 1207
CPU Socket F 1207
CPU Support AMD® Shanghai & Barcelona processors -Third-Generation Opteron 2300 & 8300 series & Second-Generation Opteron
Solution 1U

Overall Dimension 100.0 x 80.0 x 28.0 mm
Weight 310 g

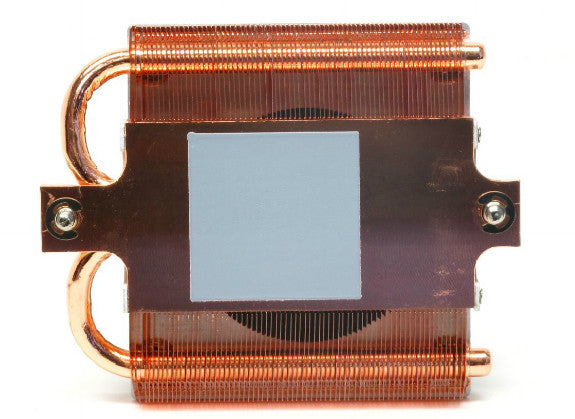

Material Copper Heatsink with Heatpipe embedded

Fan Dimension 70 x 70 x 15 mm
Speed At Duty Cycle 0%: 1100 RPM
At Duty Cycle 20%: 1100 RPM
At Duty Cycle 100%: 6000 RPM
Bearing 2 Ball Bearing
Rated Voltage 12 V
Power At Duty Cycle 0%: 0.6 W
At Duty Cycle 20%: 0.6W
At Duty Cycle 100%: 8.76 W
Air Flow At Duty Cycle 0%: 2.45 CFM
At Duty Cycle 20%: 2.45 CFM
At Duty Cycle 100%: 14.32 CFM
Noise Level At Duty Cycle 0%: 19.1 dBA
At Duty Cycle 20%: 19.1 dBA
At Duty Cycle 100%: 53.8 dBA
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)

Note:
1. Tyan Socket F 1207 motherboards for 3.5" mounting pitch : S2915, S2927, S2932, S3970G2NR, S3970G2N-U, S3992 and S4985 + M4985.
2. 3.5" Mounting pitch
3. Includes Backplate
4. Includes (4) mounting screws

UL Listed & RoHS Compliant
