Dynatron L5 High Performance CPU Liquid Cooler - Efficient Cooling for Gaming PCs and Workstations

Product Description

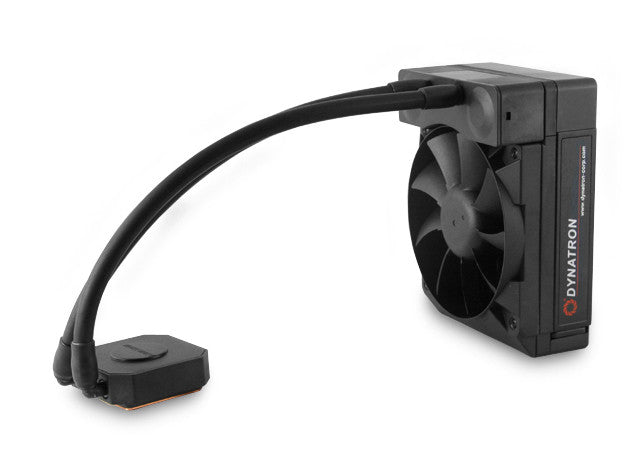

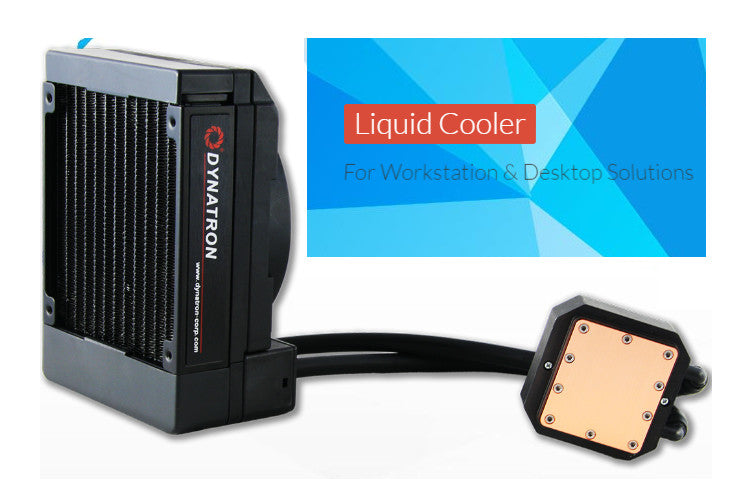

L5 Liquid Cooler

Dynatron’s L5 High Performance Liquid Cooler is a simplified all in performance cooler with extra capacity for overclocking and stability. It is a self contained unit is that includes a powerful pump and blue LED PWM fan to give your system an edge in performance. Variable temperature control ensures optimal cooling even during the most intense computing situations. On in one simplified solution to put you out in front of the others.

CPU Support Intel/AMD
CPU Socket
Muti-socket: Intel Socket LGA2011/1151/1155/1156/1366 & AMD AM2/AM2+/AM3/AM3+/FM1/FM2
Solution Desktop
Dimensions 400.0 x 120.0 x 165.0 mm
Weight 1100 g
Material  Aluminum Fins, 4x Heat Pipes with H.C.C. Technology
Fan Dimension 120 x 120 x 38 mm
Speed
At Duty Cycle 20%: 900 RPM
At Duty Cycle 50%: 1500 RPM
At Duty Cycle 100%: 2300 RPM
Bearing Liquid State Bearing
Rated Voltage 12V
Power
At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 2.0 W
At Duty Cycle 100%: 4.9 W
Air Flow
At Duty Cycle 20%: 34.8 CFM
At Duty Cycle 50%: 58.0 CFM
At Duty Cycle 100%: 88.93 CFM
Noise Level
At Duty Cycle 20%: 17.3 dBA
At Duty Cycle 50%: 28.4 dBA
At Duty Cycle 100%: 37.7 dBA
Air Pressure
At Duty Cycle 20%: 0.79 mm-H2O
At Duty Cycle 50%: 2.20 mm-H2O
At Duty Cycle 100%: 5.17 mm-H2O
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Water Pump  Stand-alone Water Pump with Powerful Flow Rate 0.84 Litter Per Minute
Radiator Dimension 152.0 x 120.0 x 27.0 mm

CE, TUV, UL & RoHS Compliant
