CG CabCool 1202 Dual 120mm Fan 12V Cooling System Kit for PC Cabinet & Home Theaters with Thermal Control - Perfect for Gaming Rigs and AV Equipment Cooling

Product Description

CG CabCool 1202 Dual 120mm Fan 12V Cooler Kit Cabinet / Home Theaters w/Thermal Control

Preset Non-Adjustable
As Kit: 840556082224H
Assembled: 840556082224Ha

Programmable with/LED Display
As Kit: 840556090915
Assembled: 840556090915a

(available in , or version)

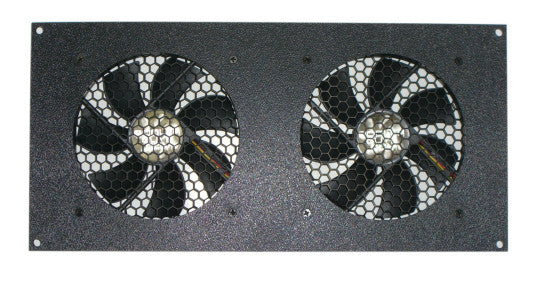

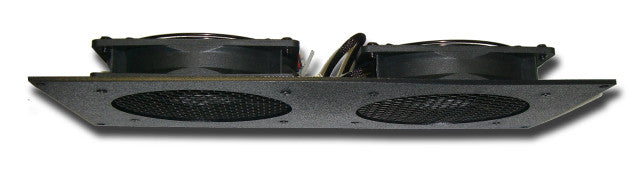

This is a *kit for a two fan unit (13" x 6.25" x 1.25") that is designed to cool your cabinet or multimedia center.
Assembly is available for an additional $10.00 fee through the drop-down menu. All pre-built units blow air out.

Now with New Style - Fan Grills - Better Flow. Now with more space and larger holes between the honeycomb grill.

Includes (2) Ultra quiet 120mm Fans

Can be mounted on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 11.25" x 5" (285 x 130mm). Insert completed cooler assembly in a hole and attach to cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs. If you need additional information contact .

DC 12V fans that are powered by our

Choice of Thermal Controller:
Built in thermal sensor. Controls power to your fans to cool when you need it. With external temperature probe wire for spot placement. On @ 88°F Off @ 81°F (+/- 1°)
display an additional $15.00
Includes shelf mount and (2) cable extensions

Include the following:
(1)
(2)
(1) Black Acrylic Fan bracket (13" x 6.25" x .125")
(1) *
(2) Black 120mm Honeycomb Mesh Fan Grills
(2) Black 120mm Fan Grills
(8) Fan Nut and Bold sets
Pack - 4" Nylon Multi-Purpose Tie Black
(4) #6 - 1/2" black Cabinet screw
*Coolerguys Programmable Thermal Fan Controller with LED Display
*Bracket for Programmable Thermal Fan Controller (shelf mount)
*(2) 3 Pin Sleeved Fan Cable extension 36 inches
* Included with LED Thermal Programmable upgrade only
* Included with LED Thermal Programmable upgrade only

PRODUCT SPECIFICATIONS:
Completed dimensions: 13" x 6.25" x 1.25"
Cabinet Cutout size: 11.25" x 5" (285 x 130mm)

UNIT SPECIFICATIONS:
Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.30 Amp Max
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow: 92 CFM
Noise Level: 22.4 dBA

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
Additional Pictures of Install (500 kb pdf)

Fan Specs may vary slightly depending on availability

Please Read: Additional information for fan selection and temp monitors

*Probes only have external sensor only.

We are continually updating this product and may make minor adjustments to improve performance.



We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
