Dynatron Q3 Intel LGA 1700 1U Server CPU Cooler - High Performance Cooling Solution for Data Centers & Compact Workstations

Product Description

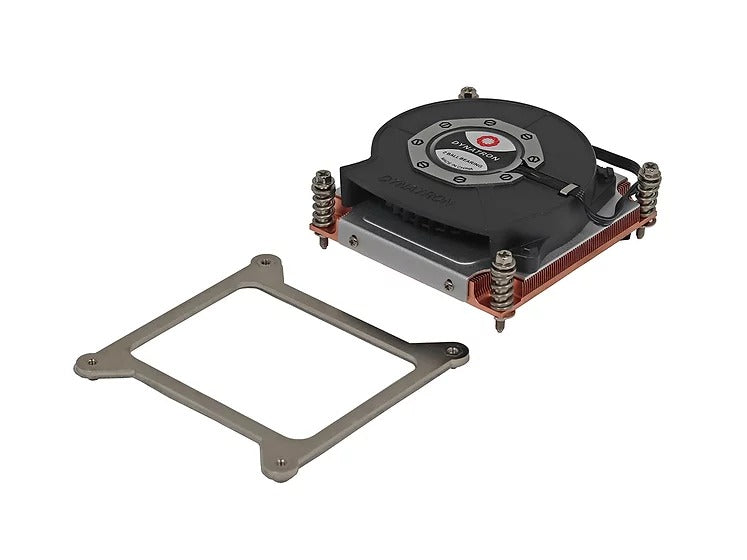

Dynatron Q3 Intel 1700 1U CPU Cooler

840556074731

Recommend for Intel® Alder Lake S Processor, Socket LGA 1700, Copper Heatsink with Skiving Fins. Support 125 Watts CPU Power Heat Dissipation for 1U&Up Server Solution.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel
• CPU Socket: LGA 1700
• Solution: 1U Server
• Dimensions: 92.0 x 90.0 x 28 mm
• Lead Wire Pin Out: Pin1-Black(-)
                                   Pin2-Yellow(+)
                                   Pin3-Green(Tachometer/Signal output)
                                   Pin4-Blue(PWM)
• Orientations: Switchable without On-board Component Interference
• Back Strip Set: Included
• Thermal Grease: SHIN-ETSU 7762 Pre-printed
• Fan Dimension: 80.0 x 15.0 mm
• Speed: At Duty Cycle 0~20%: 1000±200 RPM
              At Duty Cycle 50%: 3500±10% RPM
              At Duty Cycle 100%: 7000 RPM
• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 0~20%: 0.60 W
               At Duty Cycle 50%: 3.84 W
               At Duty Cycle 100%: 19.2 W
• Air Flow: At Duty Cycle 0~20%: 6.5 CFM

                  At Duty Cycle 50%: 11.2 CFM                                                                                  At Duty Cycle 100%: 22.28 CFM

• Noise Level: At Duty Cycle 0~20%: 21.5 dBA
                       At Duty Cycle 50%: 43.0 dBA
                       At Duty Cycle 100%: 59.14 dBA
• Air Pressure: At Duty Cycle 0~20%: 2.27 mm-H2O
                         At Duty Cycle 50%: 18.56 mm-H2O
                         At Duty Cycle 100%: 74.18 mm-H2O
• Material: Copper Heatsink with Skiving Fins
• Weight:  444 ± 5 g

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
