Coolerguys Dual 120mm PC Cooling Fan Kit with Programmable Thermal Controller DX - Perfect for Gaming PC, Computer Case & CPU Cooling System

Product Description

Coolerguys Dual 120mm Fan Cooling Kit with Programmable Thermal Controller DX

840556086352 Acrylic

The DX denotes this a bracket with a hole cut out to place the controller, otherwise, it is identical to the non-DX model

We also have kits with a standard as well as with (always on, great to use with switched AC powered outlets)

This particular*kit is for a two fan unit meant to cool your cabinet, multimedia center, aquarium, home grow op, brewing project or whatever else that may need cooling, the only limit is your imagination!
These fans move a combined 92 cubic feet (WxHxD) of air per minute (CFM) which is good for 2-4 components (up to 15 cubic feet of space with 2-3 shelves), this is just a general rule of thumb and it assumes you have adequate space for air to flow in from, and ventilation between shelving, we're currently working on an in-depth guide to airflow and cooling however in the meantime if you have questions we're here to

Can be mounted on any side of a cabinet, where room permits (cutout dimensions below). Insert completed cooler assembly in a hole and attach with appropriate screws. The fan can be set to be either an intake or exhaust, simply mount the fan to the bracket pointing in the desired direction before installing (if you are looking at the label the air will flow towards you)
If you need additional information you can !

Includes:
(2)
With Dual Ball Bearings this Fan is rated to last 67,000+ hours running 365/24/7 (over 7 years!)
The fan has a 30" (760mm) long cord if you need to extend this length we have

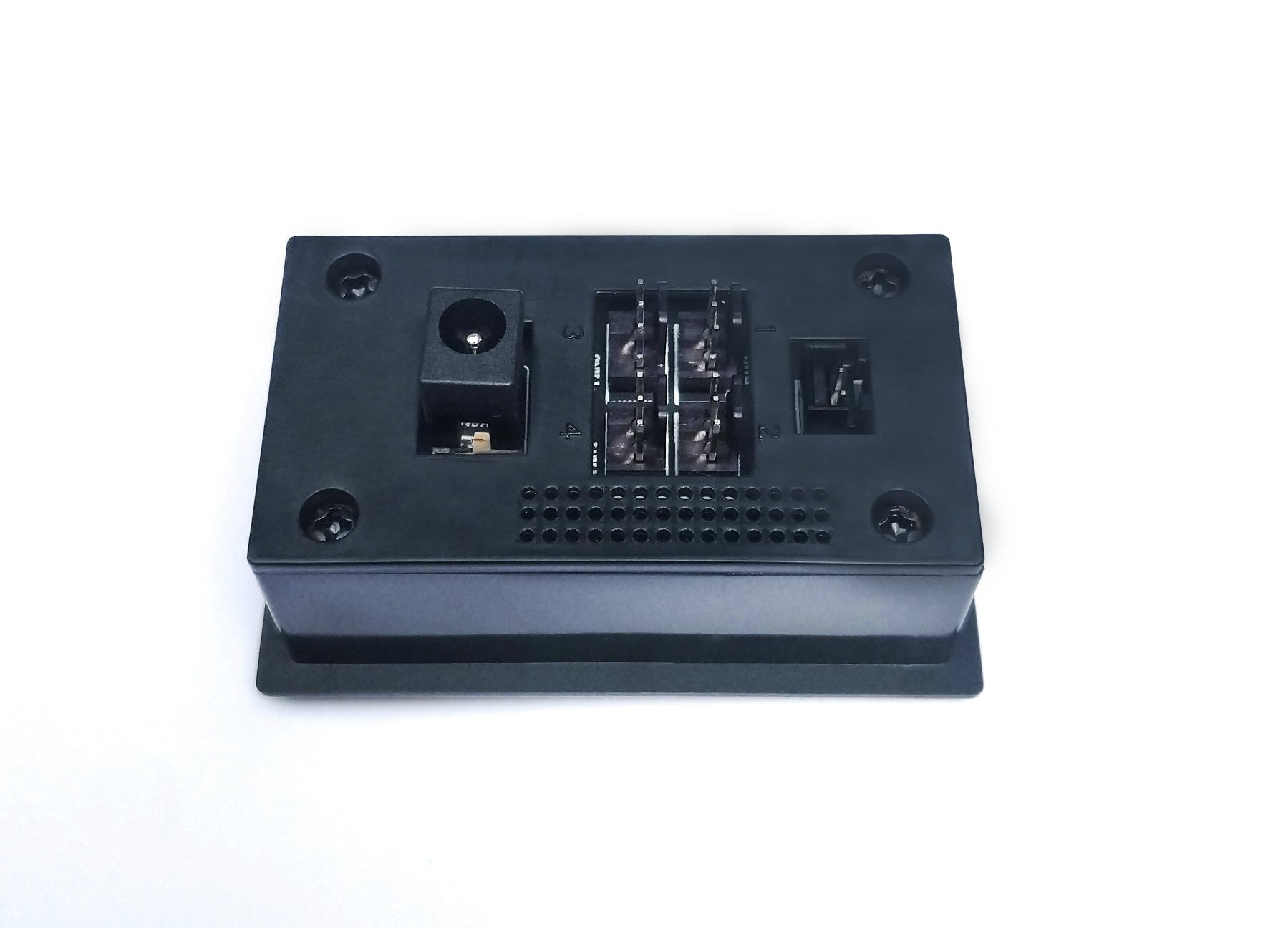

This controller comes with a 32" long waterproof probe, place where you'd like to monitor the temperature, when the temperature reaches the temperature you have programmed as the "On" setting the fan and anything else plugged into the unit will be activated until the temperature falls below the programmed "Off" setting.
It natively supports up to 4 3pin connections (12v only) but can handle more with the  (maximum 3A).
Comes with our  so you can mount the display if you'd like.

Temperatures above are (+/- 1° F) / Programmable range of 40F (4C) to 145F (63C) / LED display can be toggled on/off

All necessary screws, cables, and fasteners are included to assemble, install and operate this unit.

If you'd like to add additional brackets and fans to this kit you can find them here, non-thermal controlled kits only have enough ports for the fans which come with it, the standard thermal controlled and programmable controllers have 4 native ports, if you need more ports for fans we have adapters here

Need an anti-static workplace? what about zip-ties, cable anchors or sleeving to help clean up your installation?
Check out our recommended installation and finishing items here.

Completed Fan and Bracket Dimensions when assembled using the included parts:
Acrylic & Metal: 15.10" x 6.25" x 1.38" (383 x 159 x 35mm)

Cutout size:
Acrylic & Metal: 13" x 5.00" (330 x 130mm)

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)

Total Kit Contents:
(1) Coolerguys 100-240V AC To 12V DC 1A Power Supply
(2) Coolerguys Ultra Quiet 120x120x25mm Dual Ball Bearing Low-Speed Fan
(1) ABS Bracket
(1) Coolerguys Programmable Thermal Controller with LED Temperature Display
(2) Black 120mm Honeycomb Mesh Fan Grill
(2) Black 120mm Fan Grill
(8) Fan sets of nuts/bolts
(6) #6 - 1/2" black Cabinet screw

*This is a kit and some assembly is required.

UNIT SPECIFICATIONS:
Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.10A
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow: 92 CFM
Noise Level: 22.4 dBA

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
