Coolerguys Dual 120mm PC Case Fans - High Performance Cooling Kit for Gaming PC, Computer Case, and CPU Cooler - Quiet RGB LED Cooling System for Optimal Airflow and Temperature Control

Product Description

Coolerguys Dual 120mm Fan Cooling Kit

Acrylic 840556002062
Metal 840556002055
Wood 840556002079

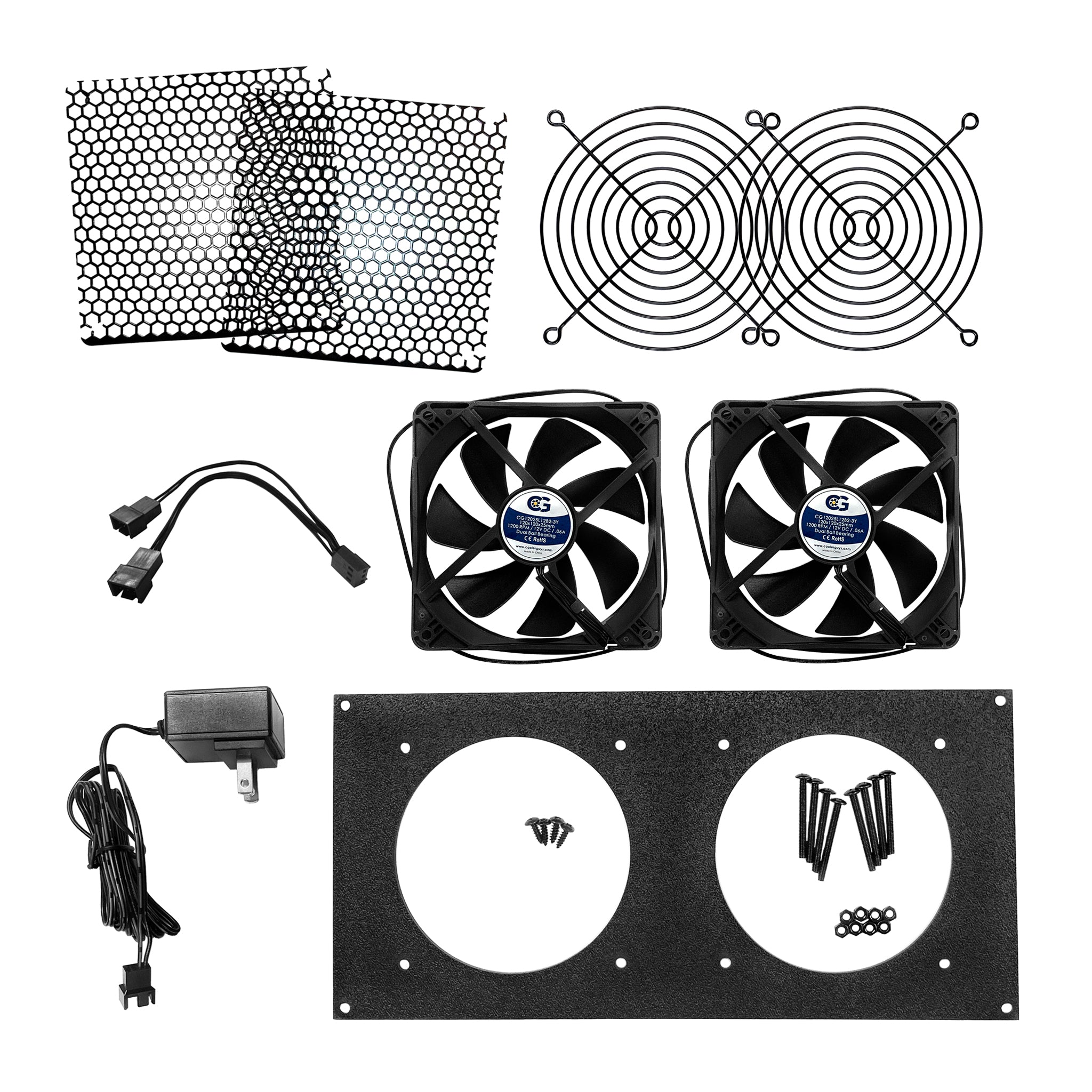

Total Kit Contents:
(1)
(2)
(1) Bracket of your choosing (Acrylic, Metal or Wood)
(1) 3 pin Y Splitter All Black Ribbon
(2)
(2)
(4 sets)
(1 set)

FAN SPECIFICATIONS:

Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.10A
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow: 46 CFM
Noise Level: 20.4 dBA
Lifespan is based on the operating temperature of 95F (35C)

Completed Fan and Bracket Dimensions when assembled using the included parts:
Acrylic & Metal: 13.00" x 6.25" x 1.38" (332 x 158 x 35mm)
Wood: 13.70" x 7.10" x 1.77" (348 x 180 x 45mm)

Cutout size:
Acrylic & Metal: 11.00" x 5.00" (280 x 130mm)
Wood: 12.20" x 5.75" (310 x 145 mm)

This is an always on kit, recommended if you are using a switched outlet, want to run the fan continuously or just save some money.

We also offer our kits with a  as well as with a standard

This particular *kit is for a dual fan unit meant to cool your cabinet, multimedia center, aquarium, home grow op, brewing project or whatever else that may need cooling, the only limit is your imagination!

This fan can move 92 cubic feet (WxHxD) of air per minute (CFM) which is good for 2-4 components (up to 15 cubic feet of space with 2-3 shelves), this is just a general rule of thumb and it assumes you have adequate space for air to flow in from, and ventilation between shelving, we're currently working on an in depth guide to airflow and cooling however in the mean time if you have questions we're here to

Can be mounted on any side of a cabinet, where room permits (cutout dimensions below). Insert completed cooler assembly in hole and attach with appropriate screws. Fan can be set to be either an intake or exhaust, simply mount the fan to the bracket pointing in the desired direction before installing (if you are looking at the label the air will flow towards you)
If you need additional information you can !

If you'd like to add additional brackets and fans to this kit you can find them here, non-thermal controlled kits only have enough ports for the fans which come with it, the standard thermal controlled and programmable controllers have 4 native ports, if you need more ports for fans we have adapters here

Wood Grill does not come with the honeycomb grill or the nuts and bolts, it uses it's own screws to mount the fan to the bracket.

Need an anti-static workplace? what about zip-ties, cable anchors or sleeving to help clean up your installation?

Check out our recommended installation and finishing items here.

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)

We trust our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
