Dynatron Z60 1.5U Active CPU Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

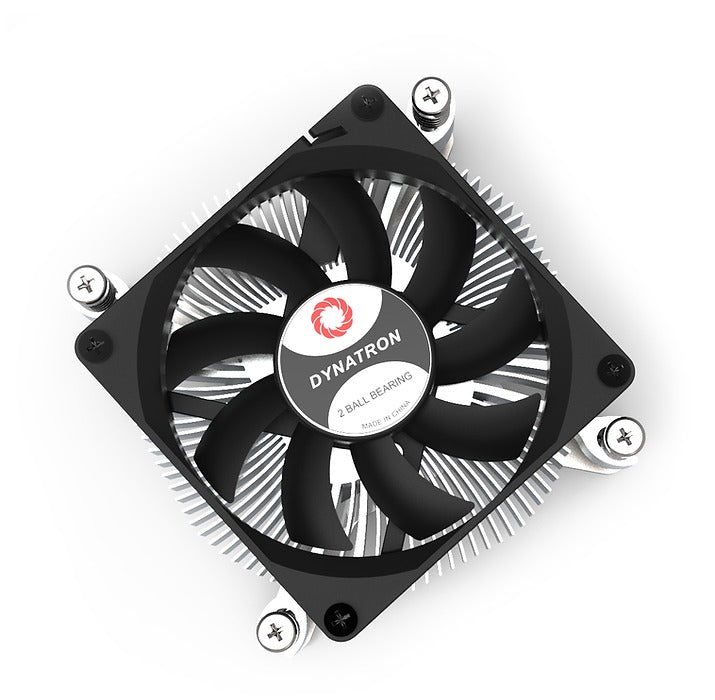

Dynatron Z60 1.5U Active Cooler

840556076896

CPU Support: Intel
CPU Socket: LGA 1700
Screw Type: M3
Installation Torque: 5-7 in-lb
Solution: 2U Server & Up
Dimensions: 93.0 x 93.0 x 31.3 mm
Weight: 185±5 g
Material: Aluminum 6063-T5 Extruded Radial Fin Heat Sink
Fan Dimension: 80 X 80 X 15 mm
Speed:
At Duty Cycle 0~20%: 800 RPM
At Duty Cycle 50%: 1500 RPM
At Duty Cycle 100%: 2500 RPM
Bearing: Double Ball
Rated Voltage: 12V
Power:
At Duty Cycle 0~20%: 0.36 W
At Duty Cycle 50%: 0.6 W
At Duty Cycle 100%: 2.4 W
Air Flow:
At Duty Cycle 0~20%: 9.24 CFM
At Duty Cycle 50%: 18.48 CFM
At Duty Cycle 100%: 30.80 CFM
Noise Level:
At Duty Cycle 0~20%: 16.00 dBA
At Duty Cycle 50%: 22.0 dBA
At Duty Cycle 100%: 27.3 dBA
Static Pressure:
At Duty Cycle 0~20%: 0.23 mm-H2O
At Duty Cycle 50%: 0.93 mm-H2O
At Duty Cycle 100%: 2.60 mm-H2O
Lead Wire Pin Out:
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
Life – Continuous operating under normal temperature (40 °C or 104 °F): 70,000 Hours
