Dynatron Socket G34 CPU Cooler for AMD Opteron™ 6000 Series - Compatible with 2U & Up Server Racks - A5 Model - Ideal for Data Centers & High-Performance Computing

Product Description

No longer available. EOL

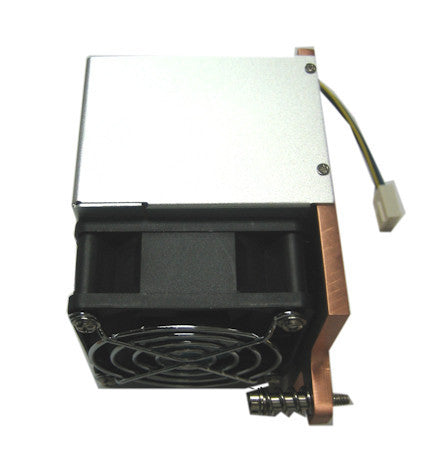

Dynatron Socket G34 1974 Opteron™ 6000 Series 2U&Up A5

Dynatron Corporation was founded in 1991 in Taiwan and over the past 18 years has become one of the leading PC thermal solution providers

Model Number: A5
• Recommend for AMD® G34 Processor, Socket 1974
• Active Side-Blow Cooler for 2U Server

Overall Specification:
• Dimension: 115.3 x 72.0 x 65.5 mm
• Weight: 680 +/- 5g
• Mounting Pitch 4.1” (104.1 mm)
• Material: Copper 1100 Base & Stacked Fins
• 6025 Cooling Fan with PWM Function
• Safety Fan Guard is included
• Captive with Screw-on Mounting
• Thermal Grease Pre-printed with GE-Toshiba TIG830SP
• Support CPU Power up to 115 Watts

Fan Specification:
• Dimension: 60.0 x 60.0 x 25.0 mm
• Bearing: Double Ball
• Rated Voltage: 12V
• Rated Speed per PWM Duty:
o At Duty Cycle 0~20%: 1700 +/- 10% RPM
o At Duty Cycle 50%: 4000 +/- 10% RPM
o At Duty Cycle 100%: 8000 Min. / +5% RPM

• Input Power:
o At Duty Cycle 0~20%: 0.6 W
o At Duty Cycle 50%: 1.8 W
o At Duty Cycle 100%: 7.2 W

• Airflow Rate:
o At Duty Cycle 0~20%: 8.75 CFM
o At Duty Cycle 50%: 21.88 CFM
o At Duty Cycle 100%: 43.75 CFM
• Acoustical Noise:
o At Duty Cycle 0~20%: 16.85 dBA
o At Duty Cycle 50%: 35.95 dBA
o At Duty Cycle 100%: 51.0 dBA
• Air Pressure
o At Duty Cycle 0~20%: 0.708 mm-H2O
o At Duty Cycle 50%: 4.425 mm-H2O
o At Duty Cycle 100%: 17.701 mm-H2O
• Lead Wire Pin Out:
o Pin#1-Black(-)
o Pin#2- Yellow(+)
o Pin#3- Green( Tachometer/ Signal Output)
o Pin#4- Blue (PWM)
