Spire Gemini Rev. 2 CPU Cooler SP986B1 V2 - Dual Fan High Performance PC Cooling System for Gaming & Overclocking | Perfect for Desktop Computer Builds and Workstation Upgrades

Product Description

Out of stock

Spire Gemini Rev.2 - SP986B1-V2-2P

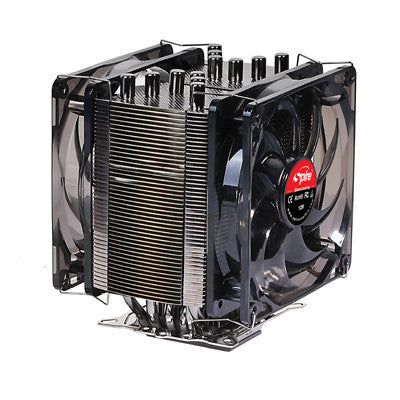

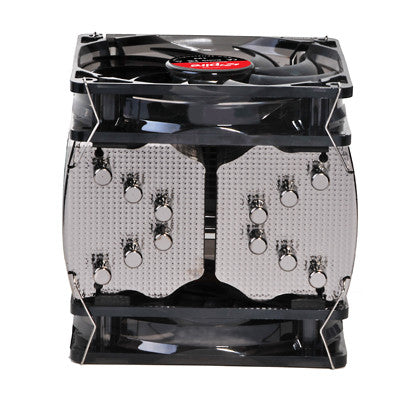

Gemini Rev.2 is the Zodiac sign for the twins. We have codenamed our newest high-end thermal solution due to the two towering dimpled fin heat-sinks. Gemini is the ultimate evolution of the hugely successful TherMax cpu cooler series. The increased number of heat-pipes combined with a higher number and density of dimpled fins and crowned with two (2) high airflow fans for extreme cooling performance. Six (6) U-shaped 6mm heat-pipes are in contact through the solid copper base with the CPU, rapid heat transfer to the 52 aluminum dimpled fins providing a larger surface area for optimum heat dissipation. The Gemini Rev.2 is supplied with two (2) 12cm balanced DC fans providing high airflow and sufficient cooling. Compatibility is guaranteed with multi-platform mounting for all current Intel and AMD micro-processors. The Gemini is pure cooling power that takes performance to the level. Spire – Powered by Innovation.

Compatibility:
The Gemini Rev.2 CPU Cooler is compatible with the latest ATX boards based on the Intel and AMD Micro-processors sockets 775/1155/1156/1366 for Intel and AM2/AM3/940/939 for AMD (not G34 compatible).

Main Features:
* Six (6) 6mm all copper U-shaped sinter-powder heat-pipes
* Solid copper base in direct contact with all of the processor area
* Straight lined heat-pipes allowing air to easily pass through
* 92 stamped aluminum wide fins for best surface rate
* Dimpled surface fin for increased heat transfer rate
* All black-Nickel coated to preserve killer looks from oxidation

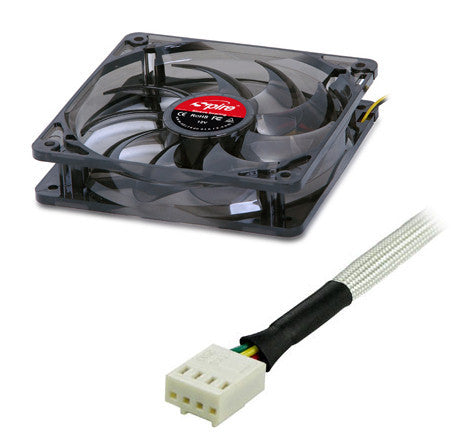

* Two (2) 120mm BlackStar 9 blade fan design
* High Quality, Long MTBF Japanese No.1 Ball bearing
* Anti-Vibe soft fan corners, spring mounted fan clips
* Supports AM2/AM3 socket 939/940/ 775/1155/1156 & 1366
* Best cooling performance on hot cpu's up to TDP 130W
* PWM & PCI Fan speed control management (part# SP986B1-V2-2P)

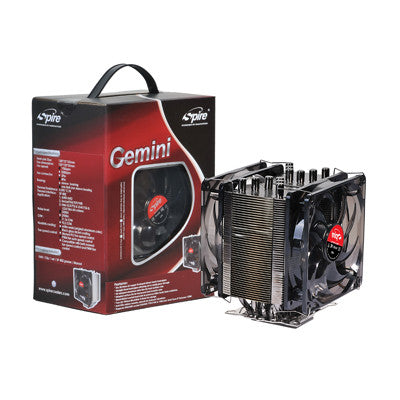

Product Includes :
Gemini heat-sink, Two (2) BlackStar 120mm PWM controlled Fans, One (1) PCI fan speed control unit, Four (4) Spring-Wire fan mounts, BlueFrost thermal interface compound, Intel universal mounting set, AMD universal mounting set, Motherboard back-plate, User installation manual, Warranty registration card.

Product Specification

Socket 1156 / 1155 / 1366 / 940 / 775 / 939 / AM2 / AMD / AM3 / AMD FM1

Dimensions
Heat sink : 131×71×153 mm (l × w × h)
12VDC Fan : 120×120×25 mm
Material Al+Cu
Heatpipe : six (6) 6mm all copper U-shaped direct
Bearing Ball bearing
Rated speed
Cooler : 600~1700 RPM +/-10%
Only Fan : 600~1650 RPM +/-10%
Rated power 1.8 W
Rated Voltage 12 V
Noise level :10.0~25.0 dBA
Air flow 71.12 Max. CFM
Current 0.15 A
Connector 4 PIN, PWM

Application
Intel Celeron D (340J)
Intel Core 2 Duo (775 Dual-core)
Intel Core 2 Extreme (775 Dual-core)
Intel Core 2 Quad (775 Quad-core)
Intel Core i3 (1155)
Intel Core i5 (1156)
Intel Core i7 Cooler
Intel LGA775 (Prescott)
AMD Athlon 64 FX-74 (K8)
AMD Athlon II (AM3)
AMD Athlon X2 (AM2/AM2+)
AMD FM1 (AMD Radeon HD 6530D)
AMD Sempron 3600+

TDP :130 W
Thermal resistance 0.090 oC/W
Thermal paste: BlueFrost - SP802 blue grease(Injection Tube,0.5g)
Static Pressure 2.12 mmH2O
MTBF : 50000H
Operating Temperature -10~70 oC
Storage Temperature -40~70 oC
Manufacture Warranty 5 years
Packaging type Retail Color Box

Package includes
FAN / clip 1 set / sp-802 grease / manual/fan speed adjustor

UPC 6943051205564
