Dynatron K5 High-Performance CPU Cooler - Efficient Cooling for Gaming PCs & Workstations - Perfect for Overclocking & High-Intensity Computing

Product Description

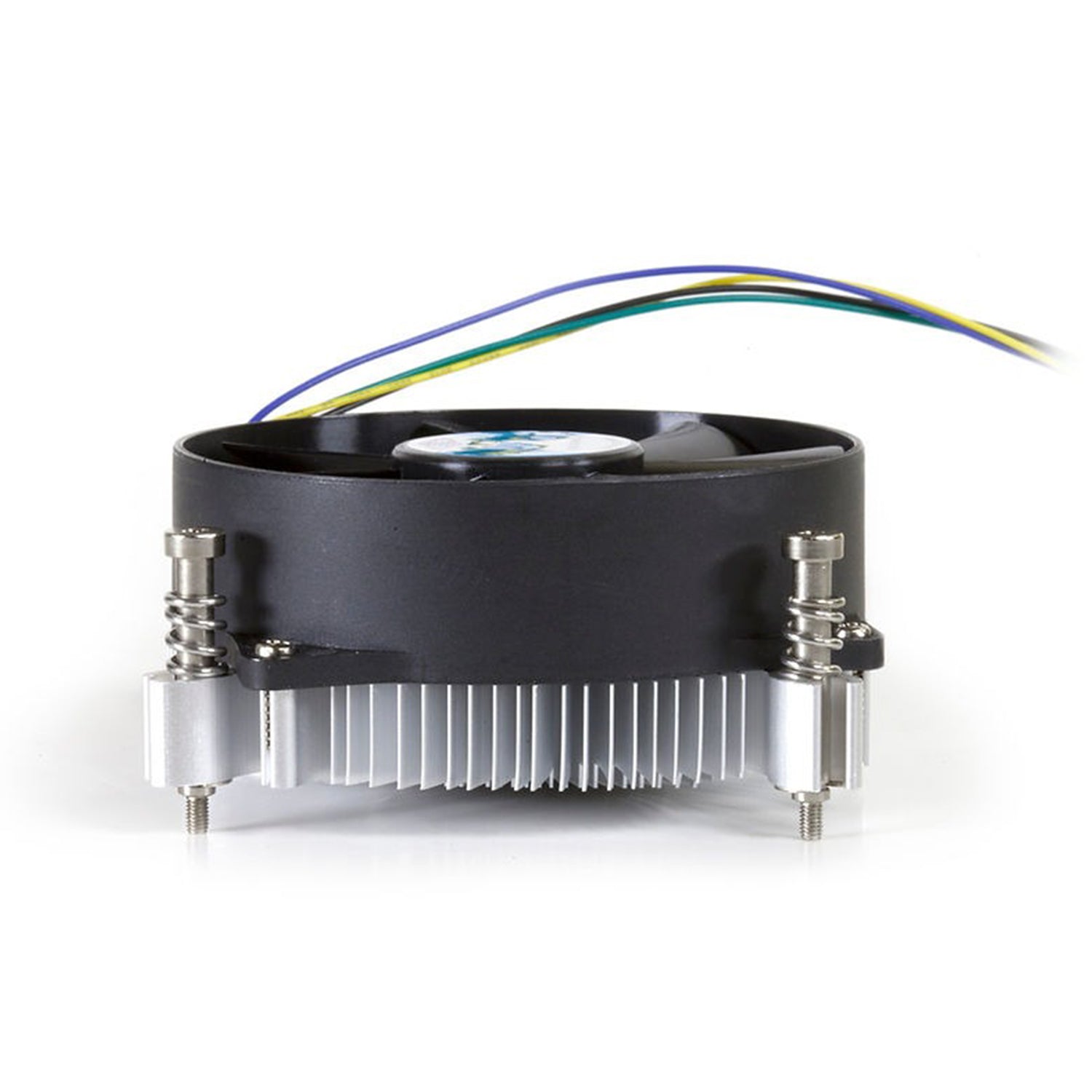

Dynatron K5 CPU Cooler

840556003762

Recommend for Intel® CPU as following:

• Intel® Xeon® Processor E3 v4 Family, Socket FCLGA 1150;
• Intel® Xeon® E Processor/Intel CoreTM i7 Processor, Socket FCLGA 1151;
• Intel® Xeon® Processor E3 Family/Intel CoreTM i5 Processor, Socket LGA 1155;
• Intel® Xeon® processor X3400, Socket LGA 1156;
• Intel® CoreTM i9 Processor, Socket FCLGA 1200;

Active Cooler for Chassis Height 1.5U & Up ( > 2.7 Inch ) Chassis Height

• Dimension: ø92.0 x 41.0 mm

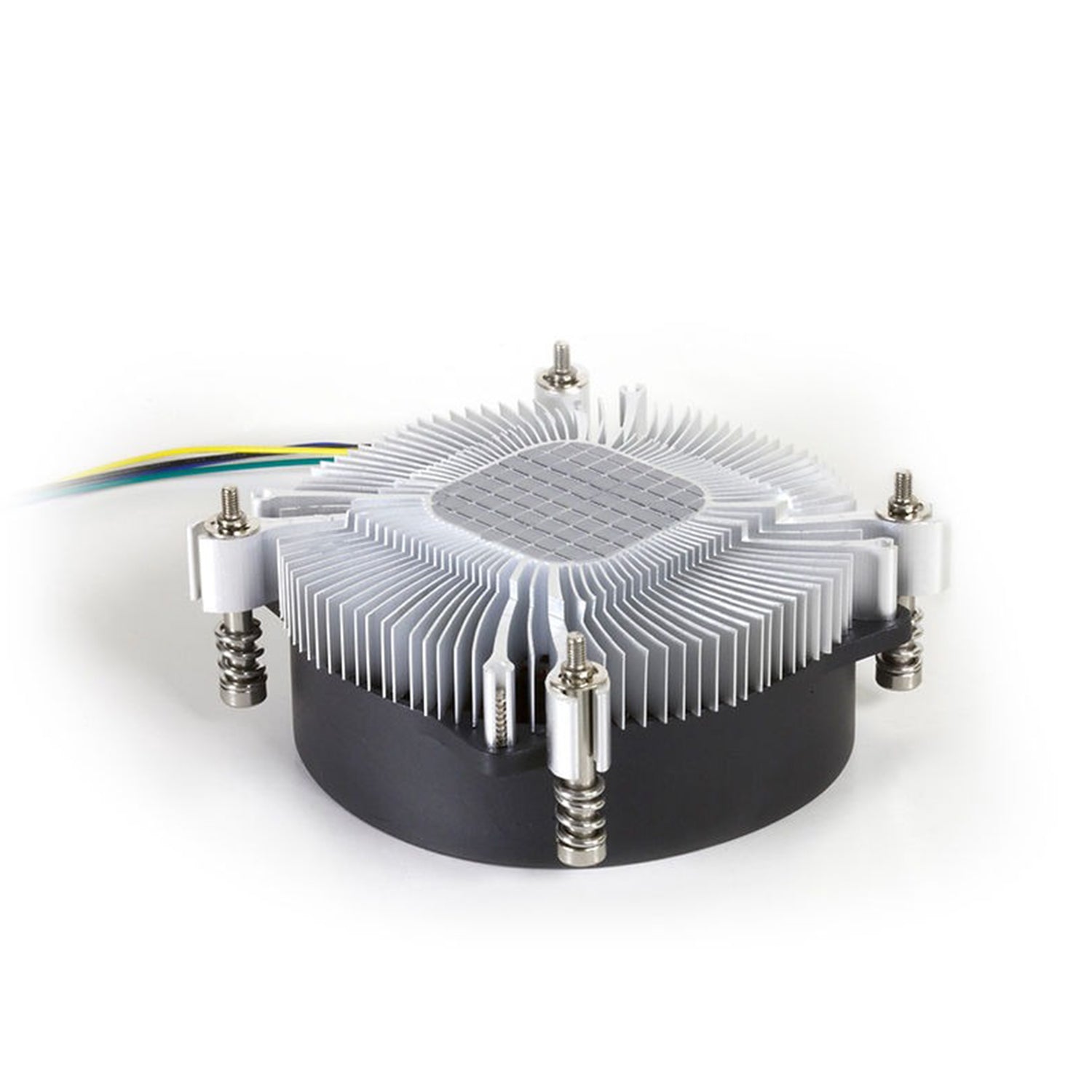

• Material: Aluminum 6063-T5 Extruded Radial Fin Heat Sink
• Fan: 9225 Top-Down Blowing Fan
• Mounting Method: Screw Fastener Captive Mounting

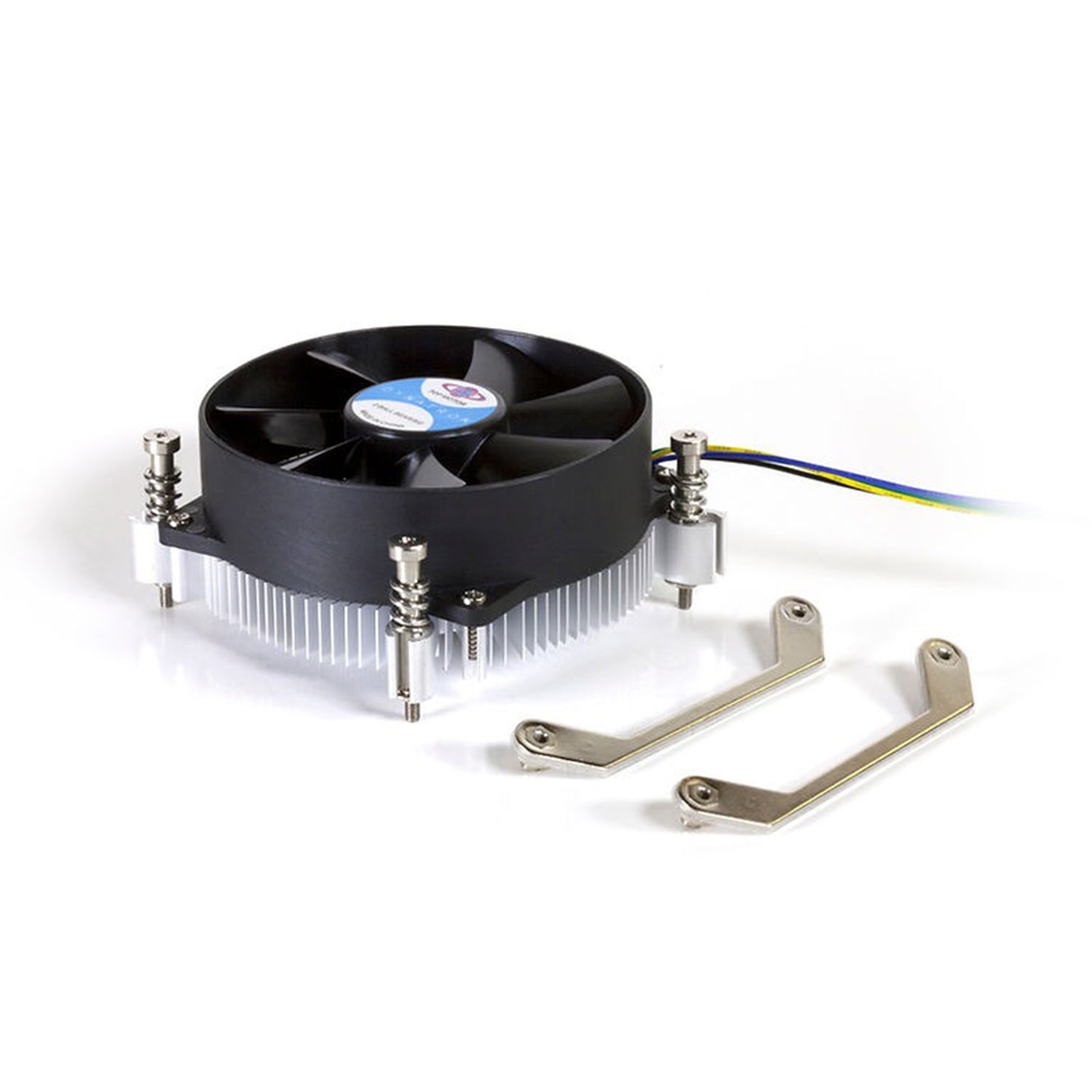

• Backplate: Interference-Free Mounting Backplate is Included
• Thermal Grease: Shin-Etsu Thermal Grease Pre-Printed
• TDP: Support 125 Watts CPU Power Heat Dissipation
• Fan Dimension: ø92 x 25.0 mm
• Bearing: Double-Ball
• Rated Voltage: 12V
• Rated Speed: At Duty Cycle 0~20%: 1000 RPM; At Duty Cycle 50%: 1400 RPM; At Duty Cycle 100%: 2500 RPM
• Power Consumed: At Duty Cycle 0~20%: 0.72 W; At Duty Cycle 50%: 1.08 W; At Duty Cycle 100%: 3.6 W
• Maximum Airflow: At Duty Cycle 0~20%: 14.98 CFM; At Duty Cycle 50%: 29.9 CFM; At Duty Cycle 100%: 46.96 CFM
• Rated Static Pressure: At Duty Cycle 0~20%: 0.29 mm- H2O; At Duty Cycle 50%: 1.07 mm-H2O; At Duty Cycle 100%: 2.98 mm-H2O
• Acoustical Noise: At Duty Cycle 0~20%: 14.7 dBA; At Duty Cycle 50%: 18.5 dBA; At Duty Cycle 100%: 29.8 dBA
• Lead Wire Pin Out: Pin#1- Black(-); Pin#2- Yellow(+); Pin#3- Green(Tachometer/ Signal Output); Pin#4- Blue (PWM)
