Dynatron T688 Intel Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler for Server Workstations - High Performance Cooling Solution for Data Centers and Enterprise Computing
Dynatron T688 Intel Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler for Server Workstations - High Performance Cooling Solution for Data Centers and Enterprise ComputingDynatron T688 Intel Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler for Server Workstations - High Performance Cooling Solution for Data Centers and Enterprise ComputingDynatron T688 Intel Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler for Server Workstations - High Performance Cooling Solution for Data Centers and Enterprise Computing

Dynatron T688 Intel Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler for Server Workstations - High Performance Cooling Solution for Data Centers and Enterprise Computing

$26.37 $47.95 -45%

Delivery & Return:Free shipping on all orders over $50

Estimated Delivery:7-15 days international

People:27 people viewing this product right now!

Easy Returns:Enjoy hassle-free returns within 30 days!

Payment:Secure checkout

SKU:32466688

Guranteed safe checkout
amex
paypal
discover
mastercard
visa

Product Description

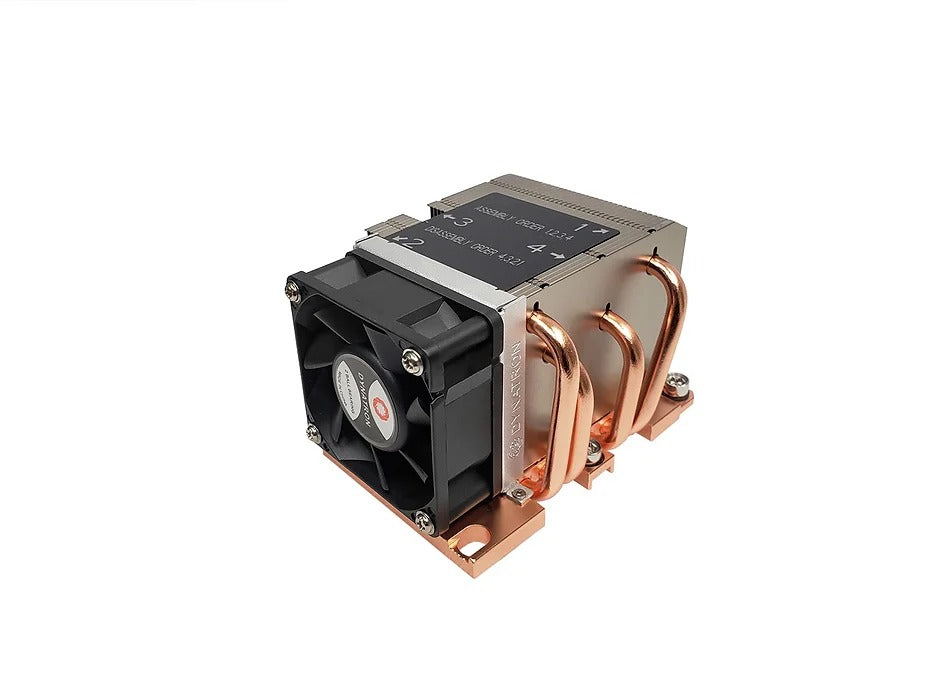

Dynatron T688 Intel(R) Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler

The Dynatron T688 Intel(R) Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler is a high-performance cooling solution designed for Intel CPUs with a TDP (thermal design power) of up to 205 watts. This cooler is specifically designed for use in 2U server systems, where space is limited and efficient cooling is essential for optimal performance.

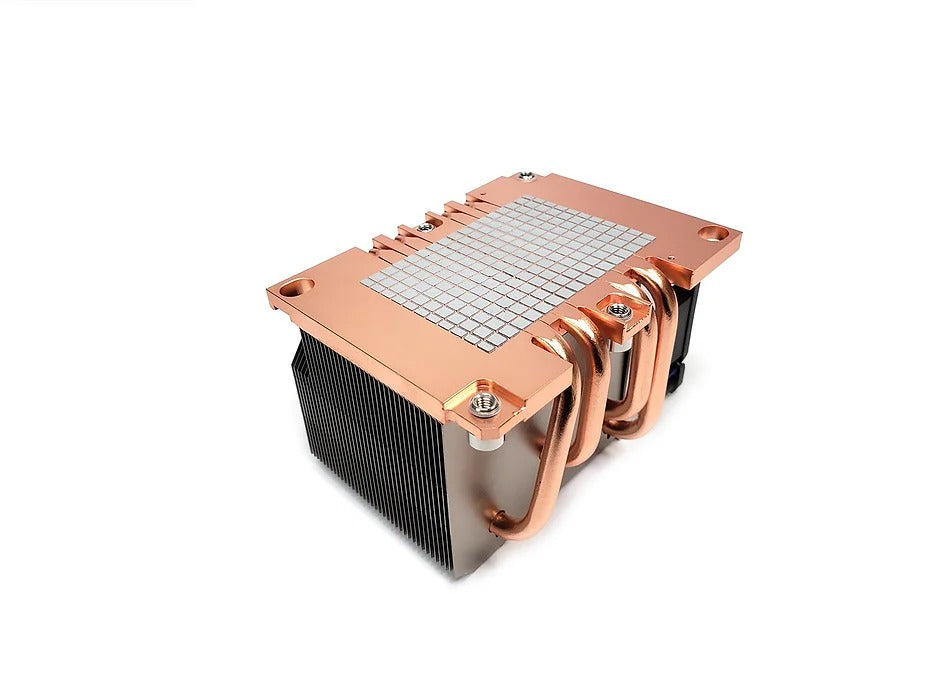

The T688 features a copper base and heat pipes, which efficiently transfer heat away from the CPU and into the aluminum fins for dissipation. The cooler also includes a high-quality 60mm PWM fan with a maximum speed of 7000 RPM, which provides strong airflow and low noise levels.

PRODUCT SPECIFICATIONS:

  • CPU Support: Intel
  • CPU Socket: FCLGA3647 Narrow ILM
  • Solution: 2U Server and Up
  • Dimensions: 108 x 80 x 66 mm
  • Lead Wire Pin Out: Pin1- Black (-)

    Pin2- Yellow (+)
    Pin3- Green (Tachometer/Signal output)
    Pin4- Blue (PWM)

  • Fan Dimension: 60 x 60 x 25 mm
  • Speed: At Duty Cycle 20%: 1400 ± 200 RPM

    At Duty Cycle 50%: 3400 ± 10% RPM
    At Duty Cycle 100%: 7000 ± 10% RPM

  • Bearing Type: Ball Type, Double
  • Rated Voltage: 12 VDC
  • Power: At Duty Cycle 20%: 0.90 W

    At Duty Cycle 50%: 2.04 W
    At Duty Cycle 100%: 5.40 W

  • Air Flow: At Duty Cycle 20%: 8.12 CFM

    At Duty Cycle 50%: 20.31 CFM
    At Duty Cycle 100%: 40.60 CFM

  • Noise Level: At Duty Cycle 20%: 16.00 dBA

    At Duty Cycle 50%: 35.00 dBA
    At Duty Cycle 100%: 50.04 dBA

  • Air Pressure: At Duty Cycle 20%: 0.58 mm-H2O

    At Duty Cycle 50%: 3.65 mm-H2O
    At Duty Cycle 100%: 14.58 mm-H2O

  • Material: Aluminum Heatsink with Heatpipe Embedded and Copper Base
  • Weight: 600g
CERTIFICATIONS:
  • RoHS Compliant
 [Dynatron T688 Intel(R) Socket FCLGA3647 Narrow ILM 2U Active CPU Cooler] Specifications Sheet
