High Performance CabCool1201 Single 120mm PC Fan Cooling Kit with Custom Wood Grill & Thermal Controller - Perfect for Gaming Rigs, Home Theater PCs, and Computer Case Airflow Optimization

Product Description

CabCool1201 Single 120mm Fan Cooler Kit with Custom Wood Grill/Thermal Controller

Preset Non-Adjustable 840556089742
Programmable with/LED Display 840556090939

This is a Single fan oak grill kit to cool your cabinet or multimedia center.

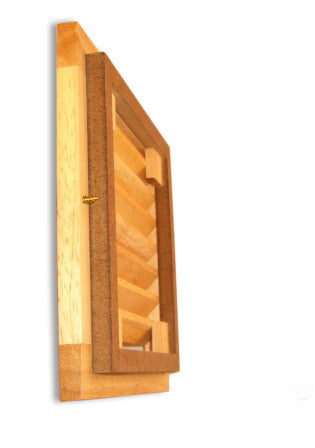

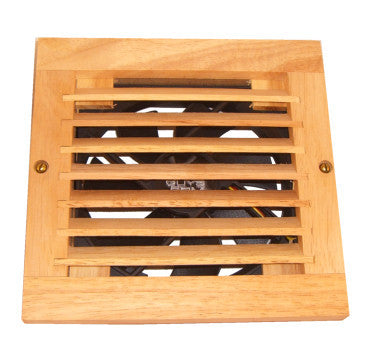

Custom oak wood grill
Ships with a light seal to protect from water damage during transit, if you want to paint or stain we suggest you lightly sand this coating off. Fan mounting holes are pre-drilled for easy installation.

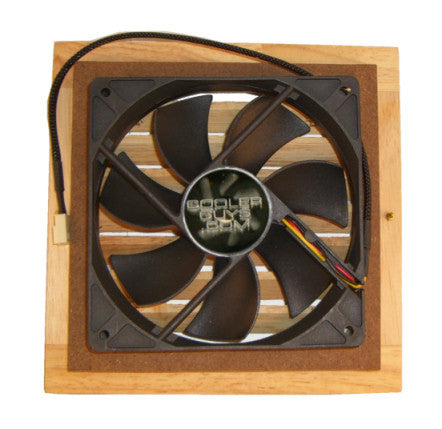

Includes (1) Low Speed Quiet 120mm Fan
The fan can be set to intake or exhaust: simply point the fan the desired direction before mounting to the grill.

Pre-Set thermal controller (additional $15.00)
The fan(s) will only power when the temperature monitored by the included controller/probe (24" length) reaches 88°F (31C) and will stay on until the temperature drops below 81°F (27C) (+/- 1°)

Can be mounted on any side of a cabinet, where room permits. Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fans can be installed to blow into or out of the cabinet depending on your needs.

PRODUCT SPECIFICATIONS:
Dimensions Face: 176 x 176 x 9.5mm
Cabinet Cut-out Size: 144 x 144mm

• Built in thermal sensor. Controls power to your fans to cool when you need it. With external temperature probe wire for spot placement. On @ 86°F Off @ 81°F (+/- 1°)
• display an additional $15.00

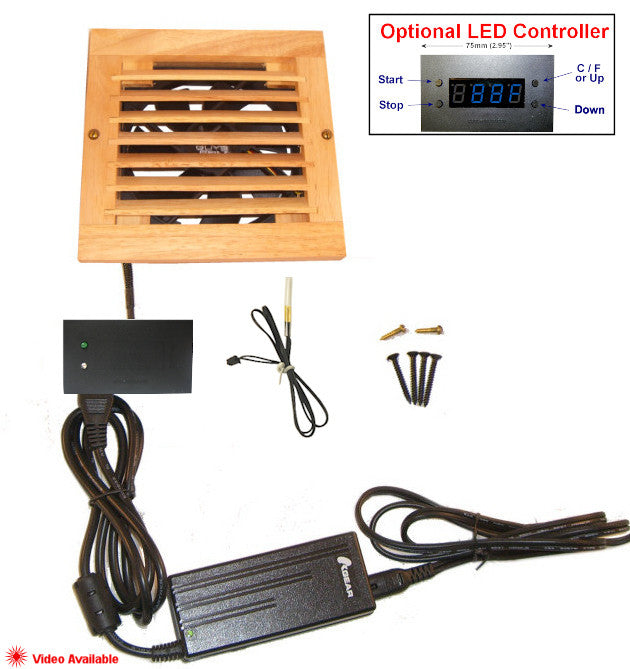

Cooling Unit includes the following:
(1) Custom Oak Fan Grill (840556089551)
(1) (840556091929)
(1)  (840556087977)
(1) (840556098690)
(1) Grill (840556082705)
Pack - 4" Nylon Multi-Purpose Tie Black (840556050018)
(2) 5/8" Brass Cabinet Finish Screws

All necessary screws, cables, and fasteners to complete the unit.

FAN SPECIFICATIONS:
Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.30 Amp Max
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow: 47 CFM
Noise Level: 20 dBA

CERTIFICATIONS:
RoHS Compliant

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
Additional Pictures of Install (500 kb pdf)



For the DIY Customize your own kit here!
*Fan Specs may very slightly depending on availability
***Please Read*** Additional information for fan selection and temp monitors
* Probes only have external sensor only.
We are continually updating this product and may make minor adjustments to improve performance.

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
