Noctua NF-A14 iPPC 3000 PWM IP67 140mm High-Performance Fan - 24V, 3000RPM, Waterproof - Perfect for PC Cooling, Industrial Applications, and Server Rooms

Product Description

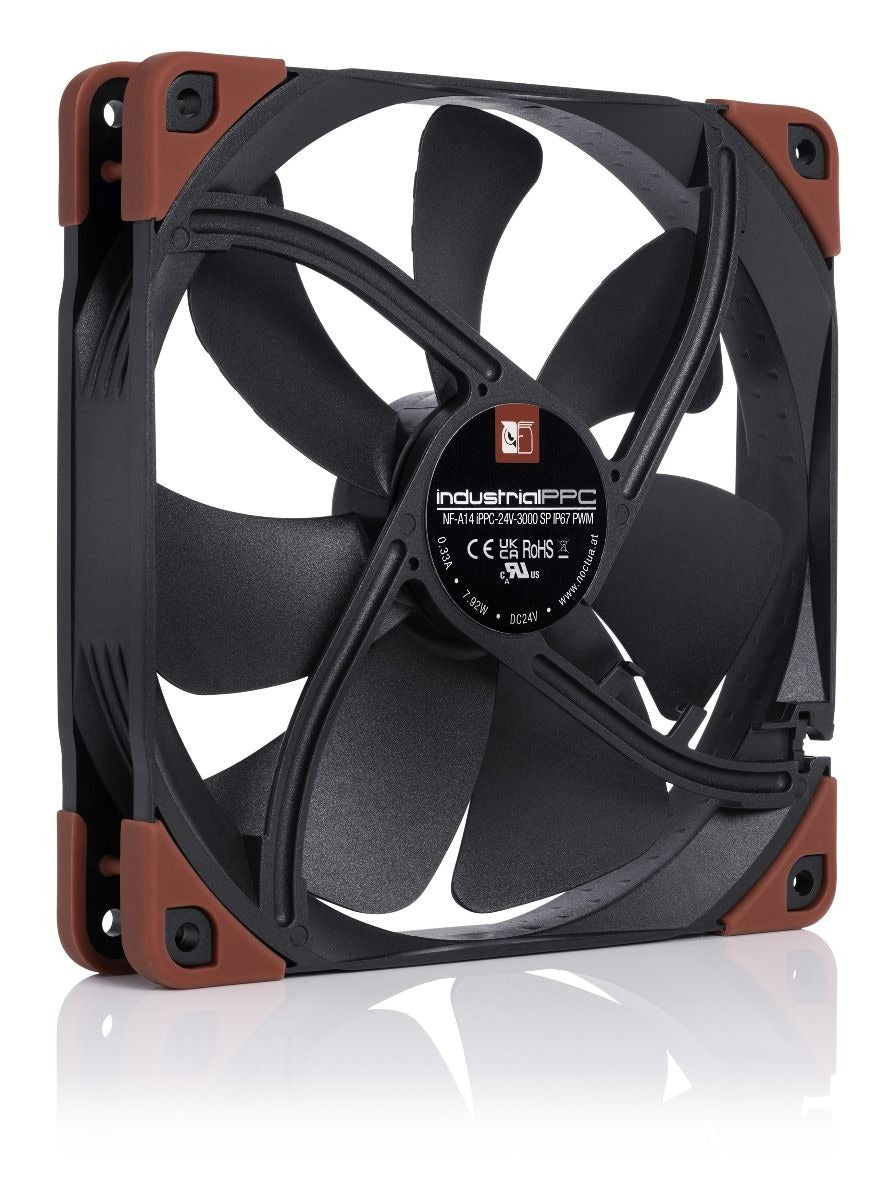

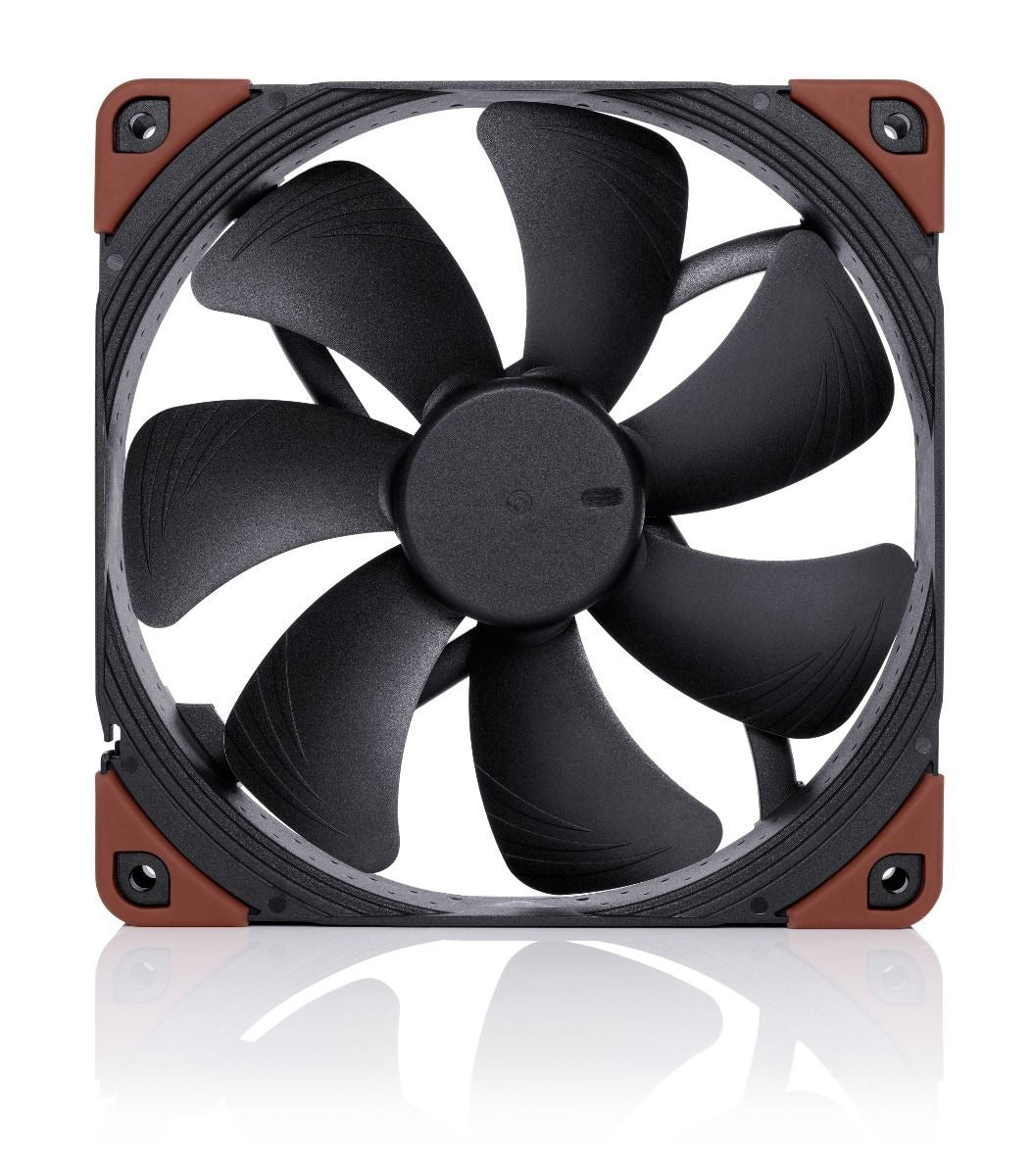

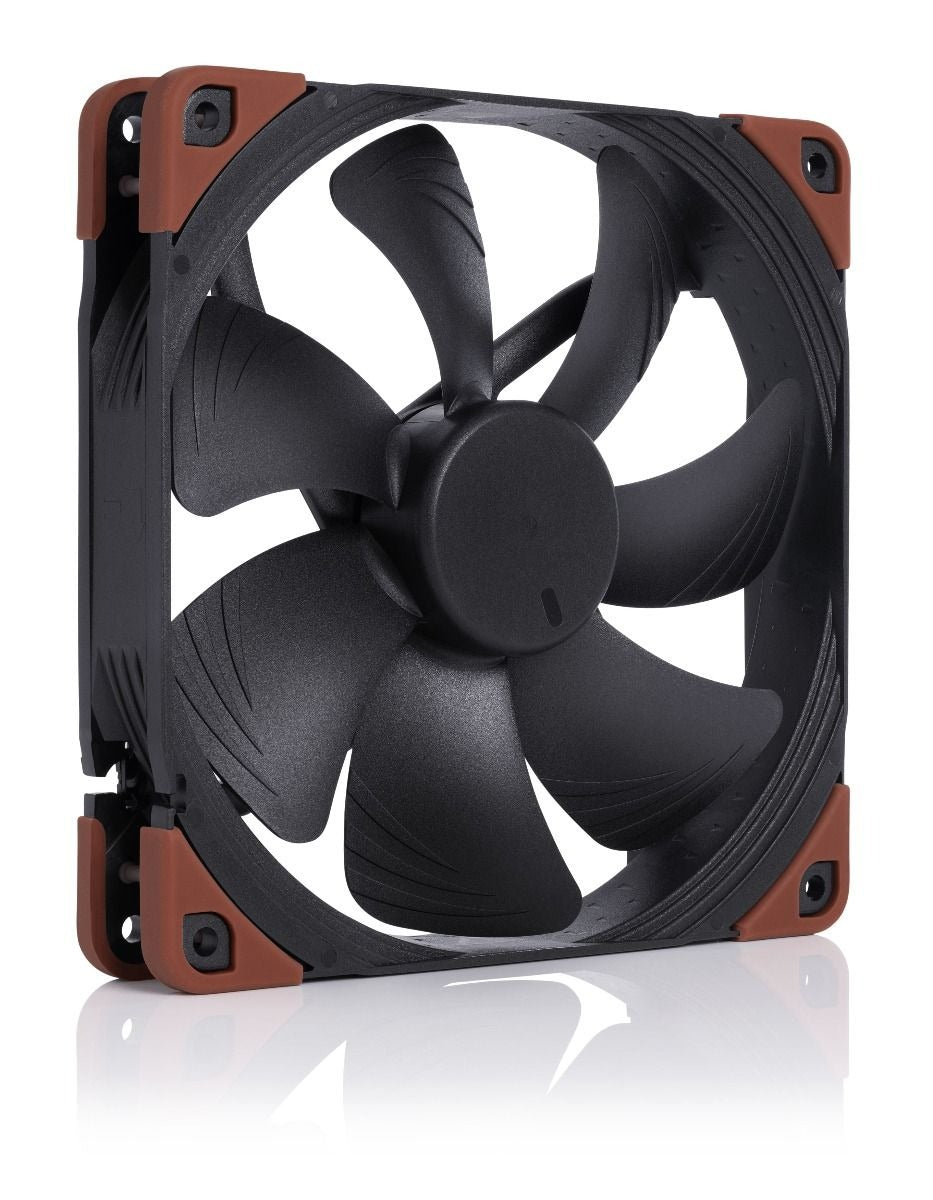

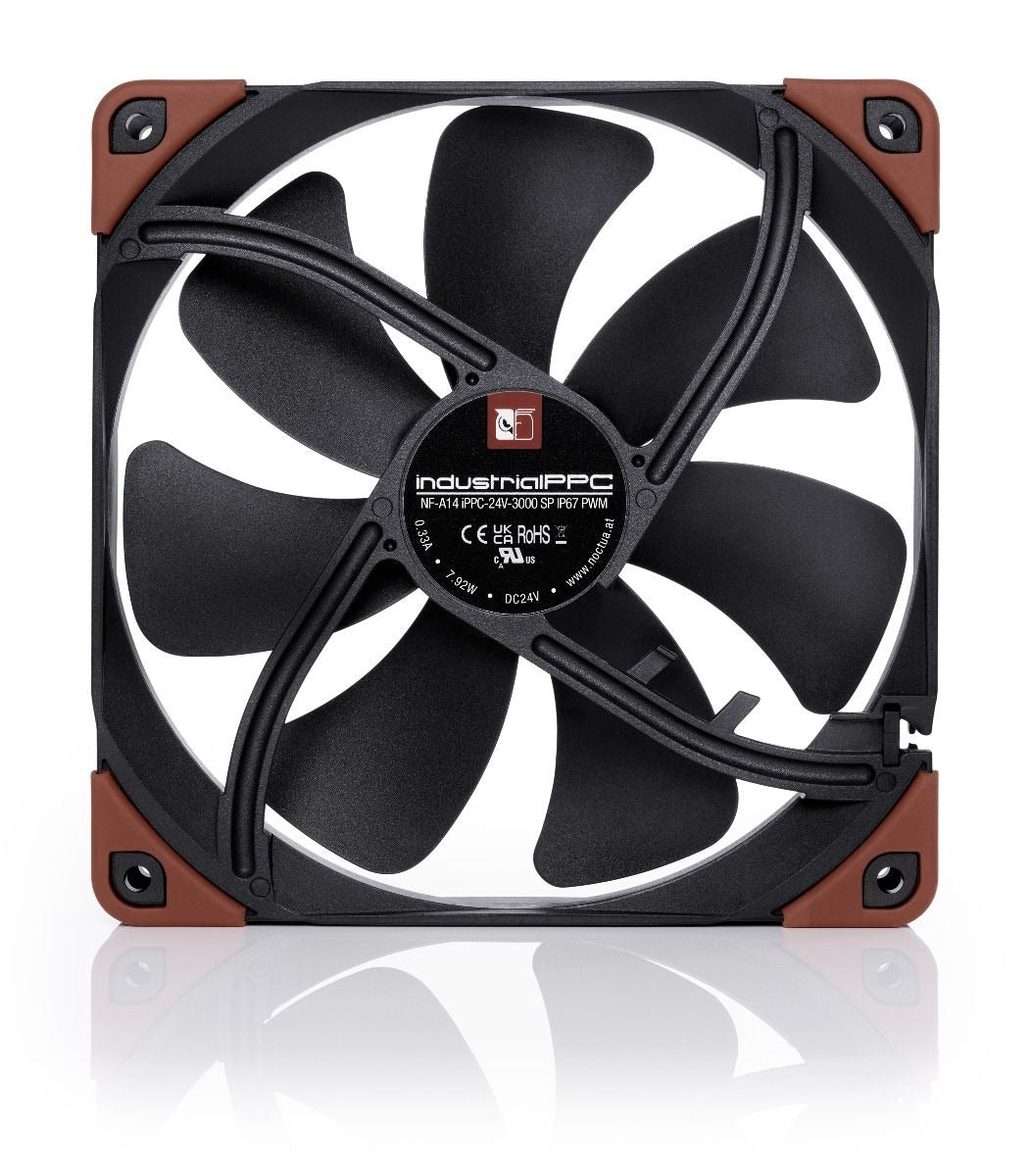

Noctua NF-A14 iPPC SP 24V 3000RPM PWM IP67 140mm Fan

840556075486

The Noctua NF-A14 iPPC SP 24V 3000RPM PWM IP67 140mm fan is a high-performance cooling fan designed for industrial applications. It has PWM control for speed regulation, operates at a maximum speed of 3000 RPM, and is rated for 24V DC power. It also has an IP67 rating, making it dust and water resistant and suitable for use in harsh environments. The 140mm size makes it a good choice for cooling larger components or systems.

PRODUC SPECIFICATONS:

• Dimensions:  140x140x25mm
• Mounting Hole Spacing: 105x105 mm
• Connector & Pin-configuration: 4-pin PWM
• Cable length: 40cm
• Bearing: SSO2
• Blade Geometry:  A-Series with Flow Acceleration Channels
• Frame Technology: AAO
• Material: Fibre-glass Reinforced Polyamide
• Ingress Protection: IP67
• Motor Type: Single-phase
• Rotational Speed (+/- 10%): 3000 RPM
• Min. rotational speed @ 20% PWM (+/-20%): 800 RPM
• Rotational Speed @ 12V (+/- 10%): 1800 RPM
• Airflow:  269.3 m³/h
• Acoustical Noise: 41.3  dB(A)
• Static Pressure: 6.58 mm H₂O
• Input Power (Max.): 7.92 W
• Input Current (Max.): 0.33 A
• Operating Voltage: 24 VDC
• Voltage PWM Signal: 5 VDC
• MTTF >: 150,000 Hours

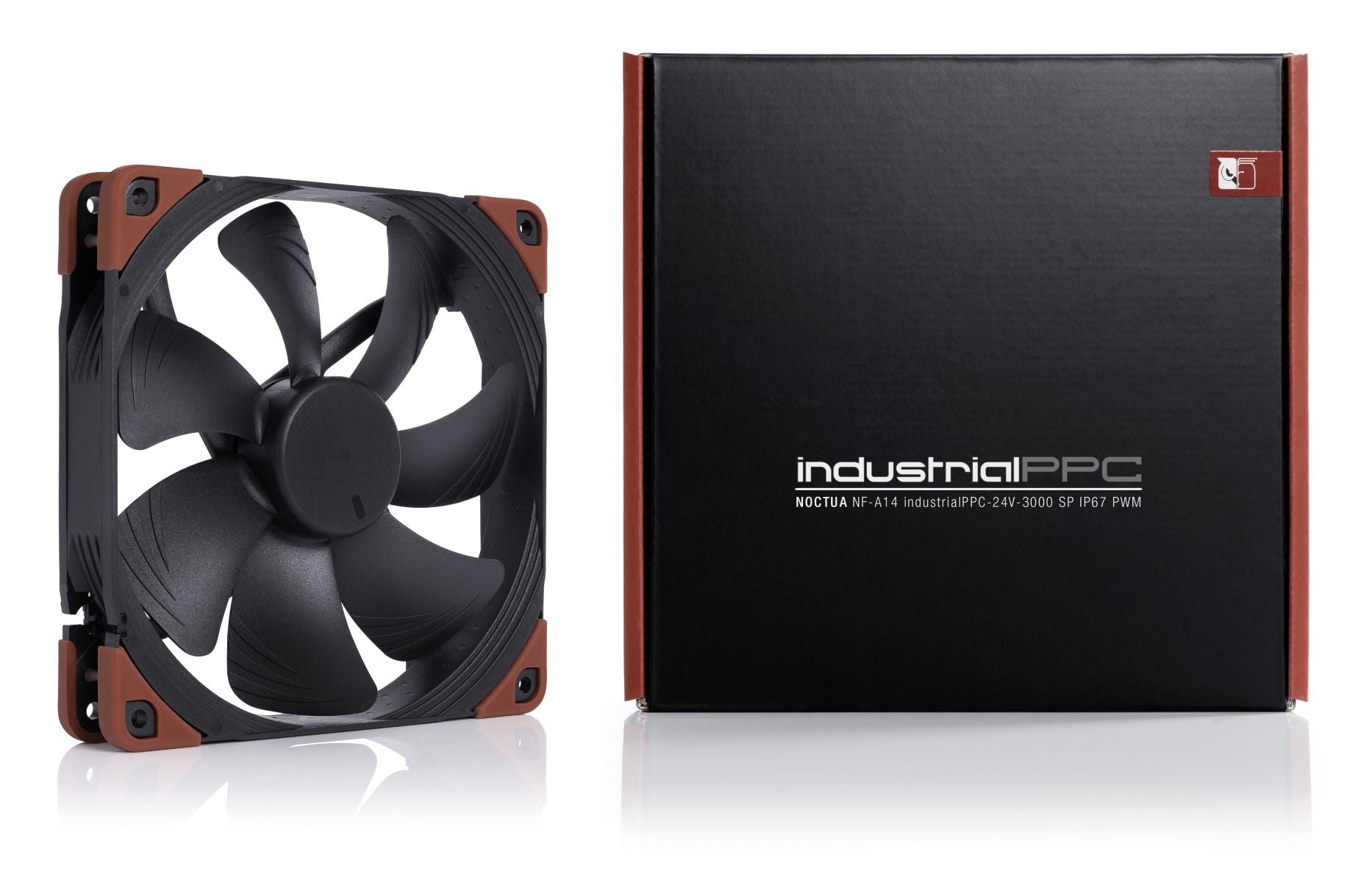

• Scope of Delivery: Fan, 4 Fan Screws

• Warranty: 6 years
