Dynatron U10 Mini ITX CPU Cooler for AMD & Intel Processors - 1.5U Active Cooling Solution for Compact PC Builds, Gaming Rigs & Home Theater Systems

Product Description

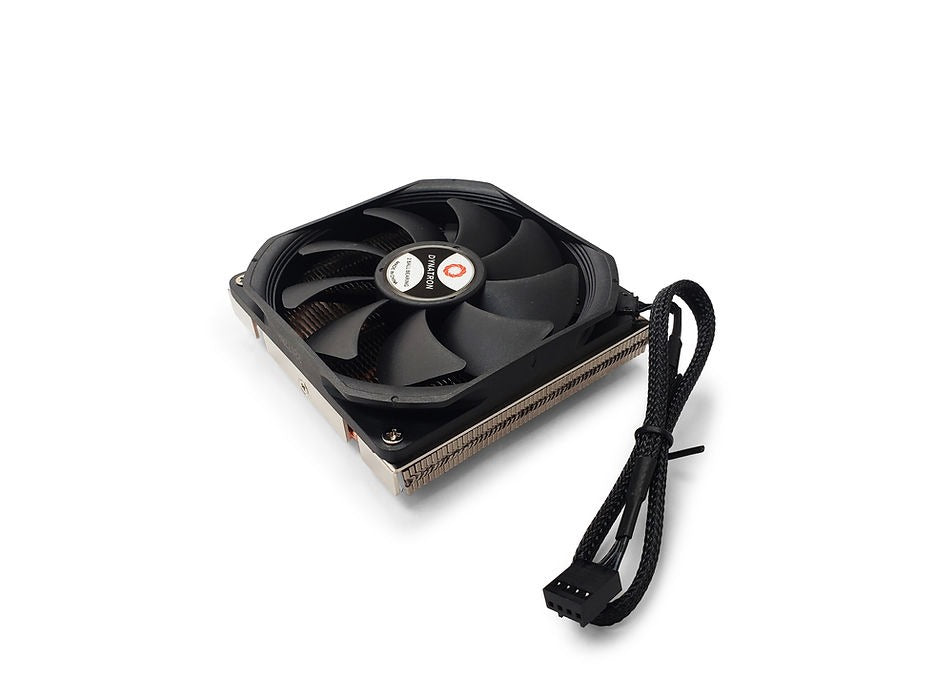

Dynatron U10 Mini ITX AMD/Intel 1.5U Active CPU Cooler

840556075837

The Dynatron U10 Mini ITX CPU Cooler is designed for 1.5U applications, with a copper base and aluminum fins to support up to 125 Watts of CPU power heat dissipation. It is compatible with Intel LGA 1700/1200/115X and AMD Socket AM5/AM4 Processors, and features an axial fan with a PWM function for efficient cooling. Enjoy reliable performance with this powerful active cooler.

PRODUCT SPECIFICATION:

CPU Support: Intel/AMD
CPU Socket: Intel LGA 1700/1200/115X, AMD AM5/AM4
Solution: 1.5U & Up
Dimensions: 93.5 x 95.0 x 30.0 mm
Weight: 348g (Fan + Heatsink)
Material: Copper Base & Aluminum Fins with Heat Pipe Embedded
Fan Dimension: 92.0 x 92.0 x 12.0 mm
Bearing: Double Ball
Rated Voltage: 12V

Speed:

At Duty Cycle 0~20%: 800 ± 200 RPM
At Duty Cycle 50%: 1900 ± 10% RPM
At Duty Cycle 100%: 3200 RPM

At Duty Cycle 0~20%: 0.2 W
At Duty Cycle 50%: 0.5 W
At Duty Cycle 100%: 1.6 W

At Duty Cycle 0~20%: 22.3 dBA
At Duty Cycle 50%: 26.1 dBA
At Duty Cycle 100%: 36.2 dBA

Air Pressure:
At Duty Cycle 0~20%: 0.28 mm-H2O
At Duty Cycle 50%: 1.22 mm-H2O
At Duty Cycle 100%: 3.21 mm-H2O

Lead Wire Pin Out:
Pin#1- Black(-)
Pin#2- Black (+)
Pin#3- Black (Tachometer/ Signal Output)
Pin#4- Black (PWM)

CERTIFICATIONS:
UL Listed
RoHS Compliant
