Delta AFB0812LB F00 80mm x 80mm x 15mm High Performance Cooling Fan - Perfect for PC Cases, Servers, and Electronic Enclosures

Product Description

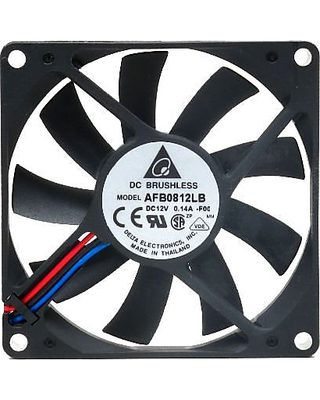

Delta 80x80x15mm AFB0812LB-F00 80mm Case Cooler

The Delta FFB0812LB-F00 is a low speed, low profile cooling fan at 80 x 80 x 15mm. Airflow is 24.72 CFM or 0.7 cubic meters per minute. Life expectancy is 70,000 hours (or almost 16 years if you operate the fan 12 hours a day) at 40 Degree C with 15 - 65% RH, all thanks for industrial grade materials plus top notched, high-quality dual ball bearing. Operating temperature is -10 - +60 Degree C with 5 - 90% RH. Protection includes Over Current Shut-Down Protection when the rotor is locked, and Polarity Protection which can withstand reverse connection on positive and negative leads.

This fan has 3 wires lead with fan speed sensor output and a standard 3 pin fan connector, and wire lead is approximately 12 inches long.

PRODUCT SPECIFICATIONS:
Fan Dimension: 80x80x15mm
Bearing Type: Dual Ball Bearing
Fan Speed: 2400 RPM
Air Flow: 24.72 CFM
Noise Level: 27.5 dBA
Power Connector: 3 Pin
Rated Voltage: 12 VDC
Operating Voltage Range: 7 - 13.8 VDC
Input Current: 0.14 Amp
Input Power: 1.08W
Maximum Air Pressure: 2.2 mmH2O or 0.087 inchH2O

CERTIFICATIONS:
RoHS Compliant
CE Marked
UL Listed
