Dynatron N6 Intel 4189 3U CPU Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

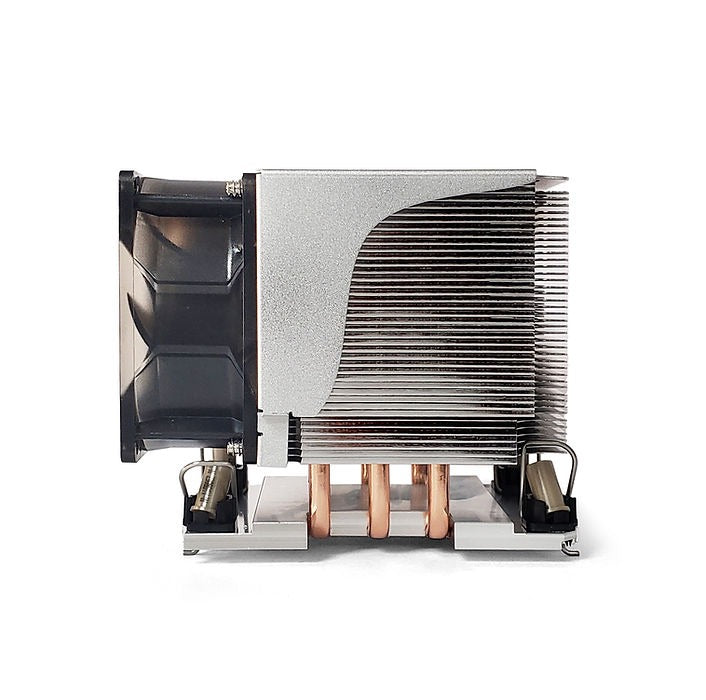

Dynatron N6 Intel 4189 3U CPU Cooler

840556074762

Recommend for Intel® Whitley Platform Ice Lake and Cooper Lake Server Processor, LGA 4189 sockets, Aluminum Stacked Fins with Heat Pipes directly contact CPU, Active Cooler for 3U Server and up, Support 270 Watts CPU Power Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel
• CPU Socket: FCLGA 4189-4/5(Socket P4/P5 or P+)
• Solution: 3U Server and Up
• Dimensions: 128 x 91 x 110 mm
• Lead Wire Pin Out: Pin#1-Black(-)

  Pin#2- Yellow(+)
  Pin#3- Green(Tachometer/Signal Output)
  Pin#4- Blue (PWM)

• Mounting: Convenient Heat Sink screw captive mounting

• Package Carrier: Included
• Thermal Grease: Shin-Etsu 7762 pre-printed
• Fan Dimension: 80 x 38 mm
• Speed: At Duty Cycle 0~20%: 800 ± 200 RPM
               At Duty Cycle 50%: 1500 ± 10% RPM
               At Duty Cycle 100%: 3000 ± 10% RPM
• Bearing Type: 2 Ball Bearing
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 0~20%: 0.48 W
              At Duty Cycle 50%: 0.84 W
              At Duty Cycle 100%: 2.88 W
• Air Flow: At Duty Cycle 0~20%: 13.67 CFM
                  At Duty Cycle 50%: 25.63 CFM
                  At Duty Cycle 100%: 51.26 CFM
• Noise Level: At Duty Cycle 0~20%: 13.45 dBA
                       At Duty Cycle 50%: 27.1 dBA
                       At Duty Cycle 100%: 42.15 dBA
• Air Pressure: At Duty Cycle 0~20%: 0.402 mm-H2O
                        At Duty Cycle 50%: 1.41 mm-H2O
                        At Duty Cycle 100%: 5.66 mm-H2O
• Material: Aluminum Stacked-fin with Heat Pipes directly contact CPU
• Weight: 600 g
