Dynatron A19 3U Active CPU Air Cooler - High Performance Cooling for Servers & Workstations - Ideal for Data Centers and Gaming PCs

Product Description

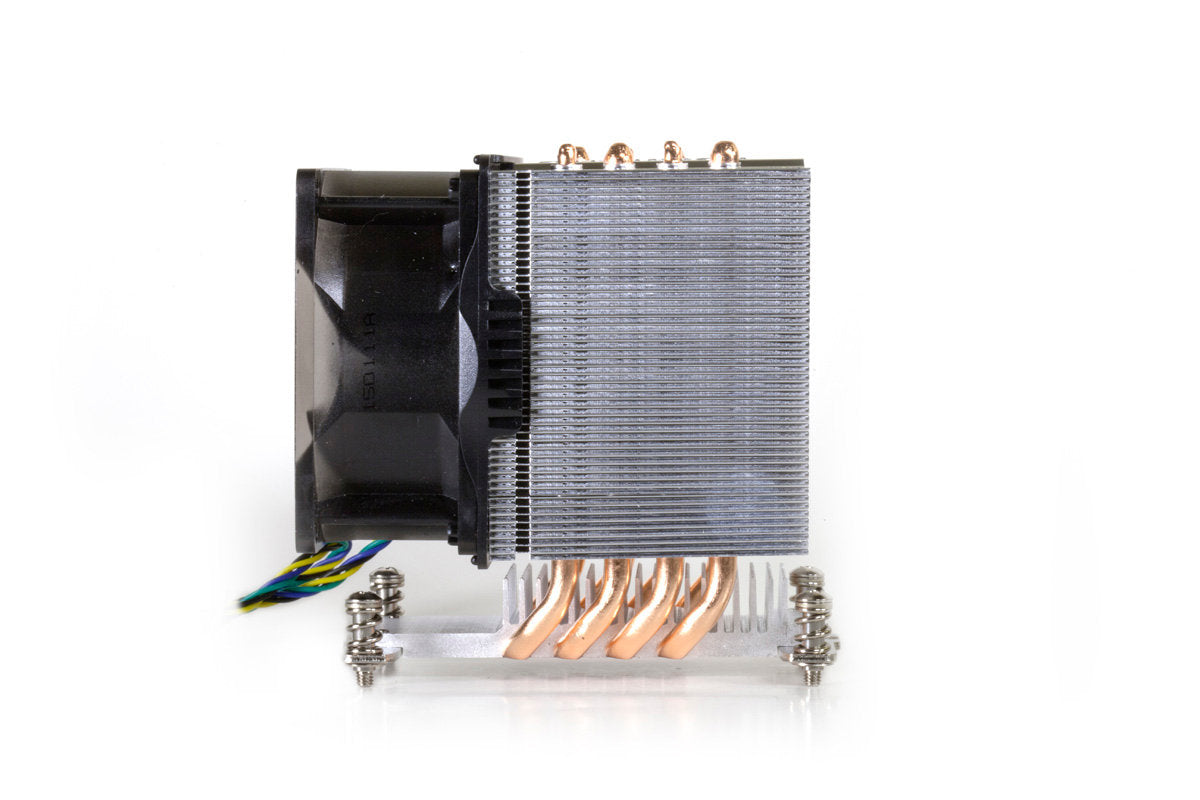

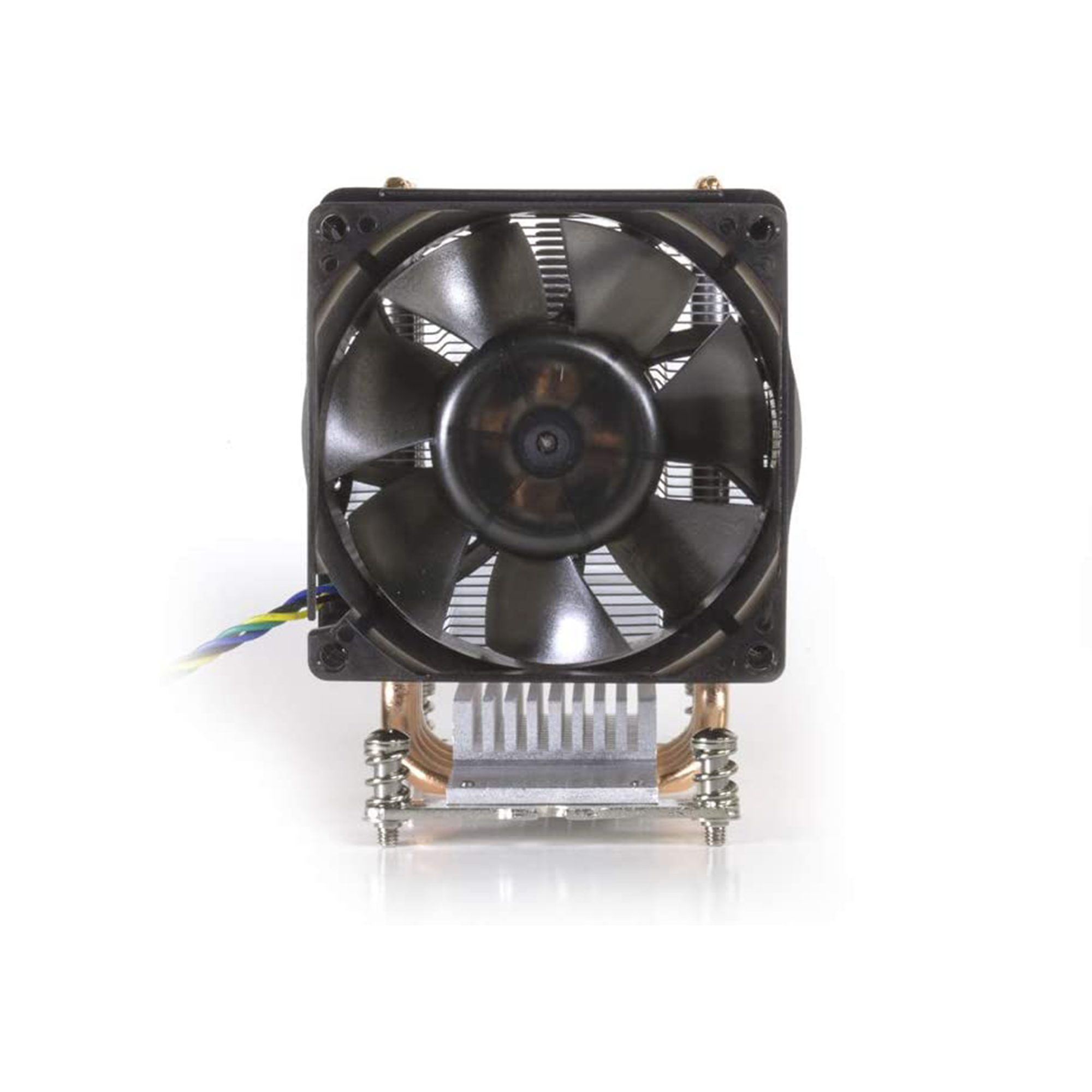

Dynatron A19 3U Active Air Cooler
840556074656

The Dynatron A19 3U Active Air Cooler supports AMD Processors, Socket AM4.

With its Aluminum Stacked Fin alongside with HCC (Heat pipe Contact CPU) technology directly contacting CPU will definitely give active cooling for 3U Servers, workstations and support CPU power up to 165 Watts Heat Dissipation.

The material increases cooling while forming a closed passage at the same time to achieve higher thermal performance.

PRODUCT SPECIFICATIONS:

• CPU Support: AMD® Ryzen
• CPU Socket: AM4
• Solution: 3U Server and up, Workstation
• Dimensions: 107.5 x 78 x 110mm
• Lead Wire Pin Out: Pin1- (-)
                                   Pin2- (+)
                                   Pin3- (Tachometer/Signal output)
                                   Pin4- (PWM)
• Fan Dimension: 80x80x38mm
• Speed: At Duty Cycle 20%: 1000±10% RPM
              At Duty Cycle 50%: 2000±10% RPM
              At Duty Cycle 100%: 3800 RPM
• Bearing Type: 2 Ball Bearing
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 20%: 2.2 W
               At Duty Cycle 50%: 3.6 W
               At Duty Cycle 100%: 7.9 W
• Air Flow: At Duty Cycle 20%: 13.8 CFM
                  At Duty Cycle 50%: 30.78 CFM
                  At Duty Cycle 100%: 65.4 CFM
• Noise Level: At Duty Cycle 20%: 16.0 dB
                       At Duty Cycle 50%: 31.5 dB
                       At Duty Cycle 100%: 43.4 dB
• Air Pressure: At Duty Cycle 20%: 0.42 mm-H2O
                         At Duty Cycle 50%: 2.45 mm-H2O
                         At Duty Cycle 100%: 9.75 mm-H2O
• Material: Aluminum Stacked Fin with Heat Pipes directly contact CPU
• Weight: 550g
