Dynatron T17 AMD sWRX8/sTRX4/TR4/SP3 2U Active CPU Cooler - High Performance Server Cooling Solution for Data Centers and Workstations

Product Description

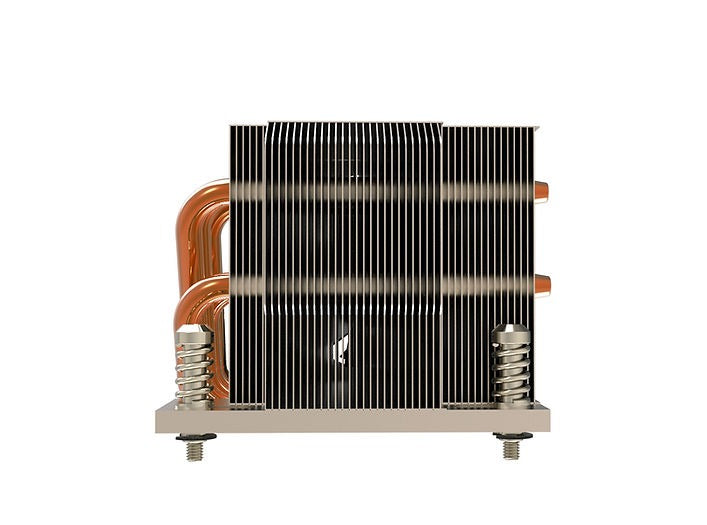

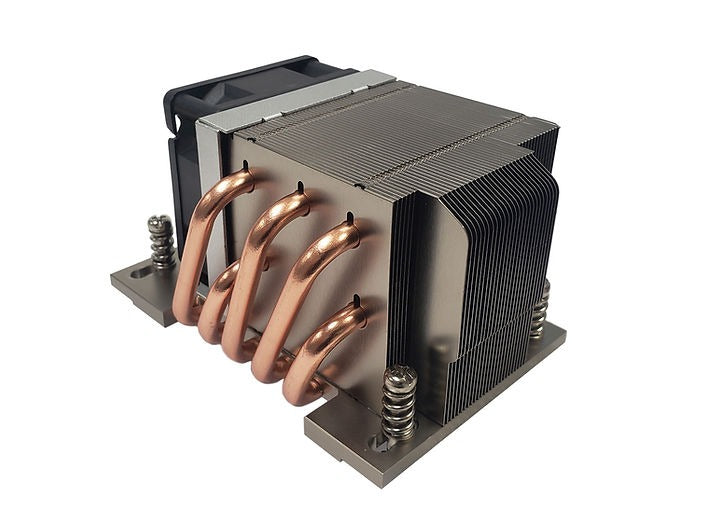

Dynatron T17 AMD sWRX8/sTRX4/TR4/SP3 2U Active CPU Cooler

840556075851

The Dynatron T17 CPU Cooler is the perfect cooling solution for your home or office CPU. With powerful support for AMD Ryzen Threadripper and Epyc processors up to 280 Watts, this 2U active cooler features a side-blower 60x60x25mm PWM fan and ensures maximum heat dissipation.

PRODUCT SPECIFICATION:

CPU Support: AMD
CPU Socket: sWRX8/sTRX4/TR4/SP3
Solution: 2U Server and Up
Dimensions: 119.0 x 79.0 x 66.0 mm
Weight: 463g
Material: Aluminum Heatsink with Heat pipe Embedded
Fan Dimension: 60 x 60 x 25 mm
Bearing: Double Ball
Rated Voltage: 12V

Speed:
At Duty Cycle 20%: 2300 ± 200 RPM
At Duty Cycle 50%: 5400 ± 10% RPM
At Duty Cycle 100%: 11000 ± 10% RPM

Power:
At Duty Cycle 20%: 0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18.0 W
Air Flow:
At Duty Cycle 20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM

Noise Level:
At Duty Cycle 20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA

Air Pressure:
At Duty Cycle 20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O
At Duty Cycle 100%: 28.8 mm-H2O

Lead Wire Pin Out:
Pin#1- Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
