12" & 13" 180W Electric Radiator Fan Kit with Grounding Thermostat & Wiring Switch - Universal Fit for Cars, Trucks & SUVs - Perfect for Engine Cooling & Overheating Protection

Product Description

Electric Fan:

• Universal high performance 12-13" inch electric radiator cooling fan.
• Upgraded 180 watt motor draws 13 amps, producing over 2764 CFM.
• Configured as an air puller by default or reversible to an air pusher.

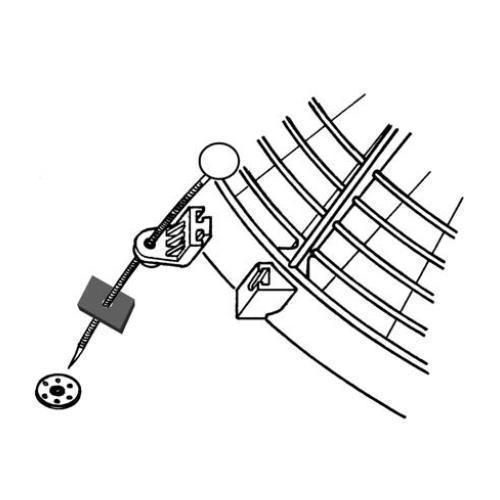

• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 12.5" x 11.75" x 4" thickness at center and slim 1.8" at edge.

Wiring Kit:

• Universal automotive 12 volt electric fan switch relay wire harness.
• Safely powers one 12 volt cooling fan or accessory without splicing.
• Maximum continuous draw with 40 amp circuit breaker protection.
• Simple 4 pin relay 40A and 6 feet of 14AWG wiring allows flexibility.

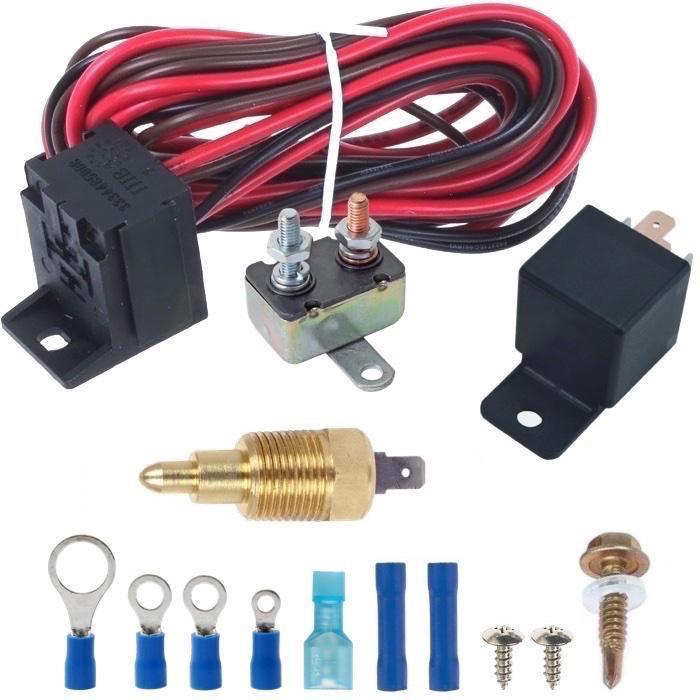

• Installation wiring diagram and all pictured components included.

Thermostat:

• Universal single pin electric cooling fan grounding thermostat switch.
• Standard NPT sized solid brass thread-in temperature probe sensor.
• Preset to power fan or 12v accessory at the selected temperature.
• Threads into block port, radiator, engine cooler or tapped hose line.
• Measures temp of any liquid including oil, water and coolant fluid.
