Coolerguys CabCool 1203 - 3 Pack 120mm PC Cooling Fans with Thermal Control Switch | Perfect for Gaming PC, Computer Case & Server Cabinet Cooling

Product Description

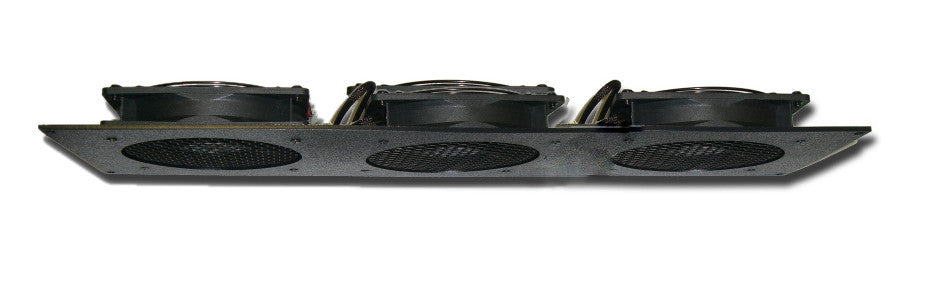

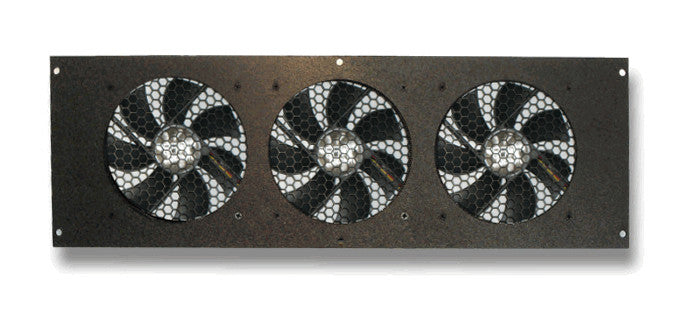

Coolerguys CabCool 1203 Three 120mm Fan Kit with Thermal Control Switch

840556082231H

(Also available in and fan configurations)

This is shipped as a kit which requires assembly, we can assemble this item for an additional $12.00 fee, you can select it using the drop-down menu above. All assembled units blow air out.

This cooling kit can be mounted on any side of a cabinet, where room permits, by cutting a hole 400mm x 130mm in size. Insert completed cooler assembly in the hole and attach to the cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs.

Choice of Thermal Controller:

Built-in thermal sensor. Controls power to your fans to cool when you need it. With external temperature probe wire for spot placement. On @ 86°F(31C) Off @ 81°F(27C) (+/- 1°)
display an additional $15.00



Total Kit Contains the Following:
(1) 110-240v AC to DC Power Supply
(3)
(1) (L) 450mm (H) 159mm (W) 3mm (~17.7"x6.25"x.125")
(1)
(3)
(3)
(12) Fan Nut and Bold sets
Pack - 4" Nylon Multi-Purpose Tie Black
(6) #6 - 1/2" black Cabinet screw

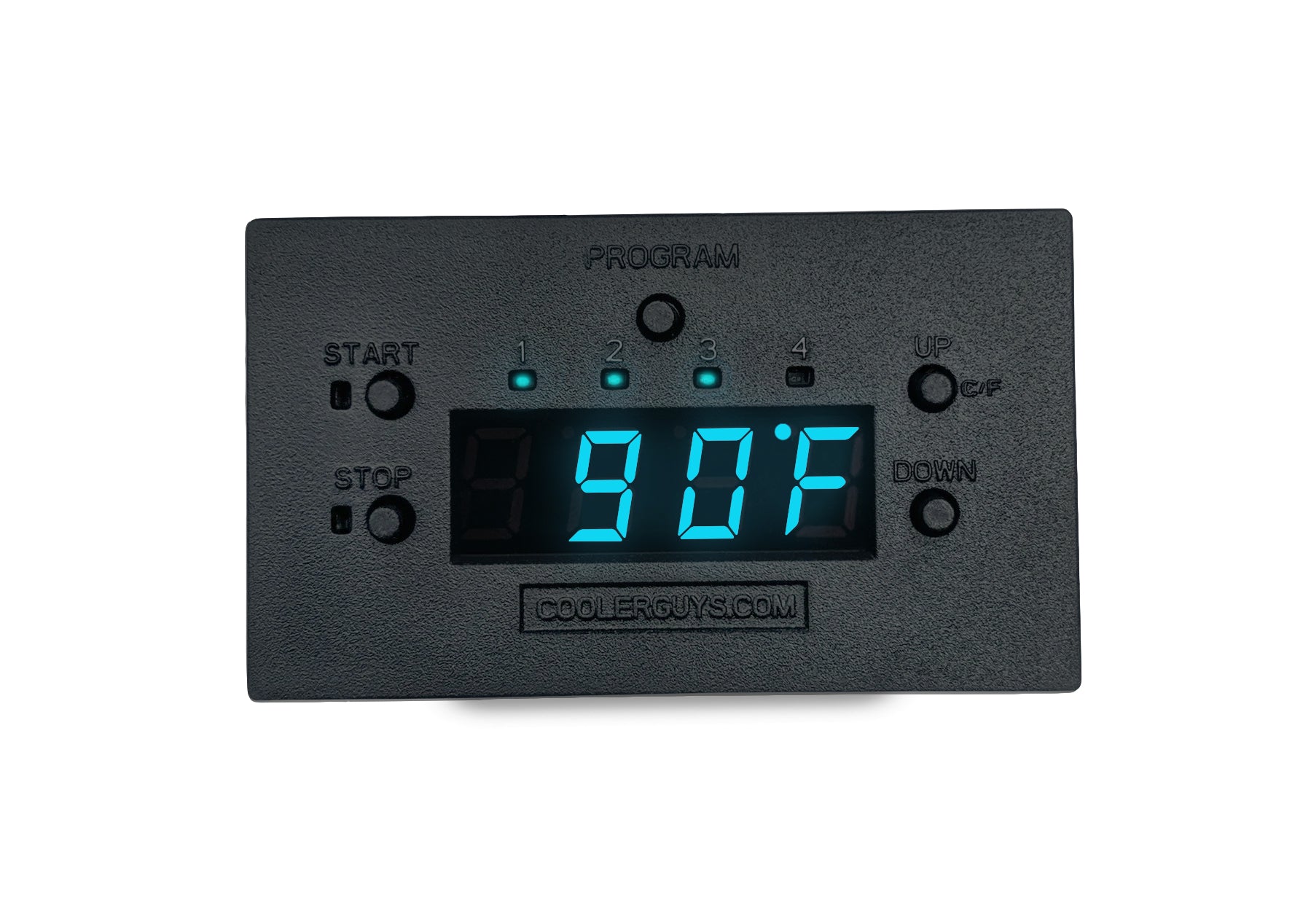

*Coolerguys Programmable Thermal Fan Controller with LED Display
*Bracket for Programmable Thermal Fan Controller (shelf mount)
*(3) 3 Pin Sleeved Fan Cable extension 36 inches

*included with LED Thermal Programmable upgrade only

All necessary screws, cables, and fasteners to complete the unit.

Completed dimensions: 450mm x159mm (~17.7"x6.25")
Cabinet Cutout size: 400mm x130mm (~16"x5")

PRODUCT SPECIFICATIONS:
Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.30 Amp Max
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow: 46 CFM
Noise Level: 20.4 dBA
Bearing Type: Dual Ball Bearing
MTBF: 50,000 Hours

CERTIFICATIONS:
RoHS Compliant

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
Additional Pictures of Install (500 kb pdf)

*Fan Specs may vary slightly depending on availability. Specs are for individual fans.
We are continually updating this product and may make minor adjustments to improve performance.

Code	Assembly	Thermal Controller Style
840556082231H	As kit	Preset Non-Adjustable 81-86~
840556090922	As kit	Programmable with/LED Display
840556082231Hs	Assembled	Preset Non-Adjustable 81-86~
840556090922a	Assembled	Programmable with/LED Display





We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
