Dynatron U8 Active Mini ITX & Up Air Cooler - High Performance CPU Cooler for Small Form Factor PCs - Perfect for Gaming, Home Theater & Office Workstations

Product Description

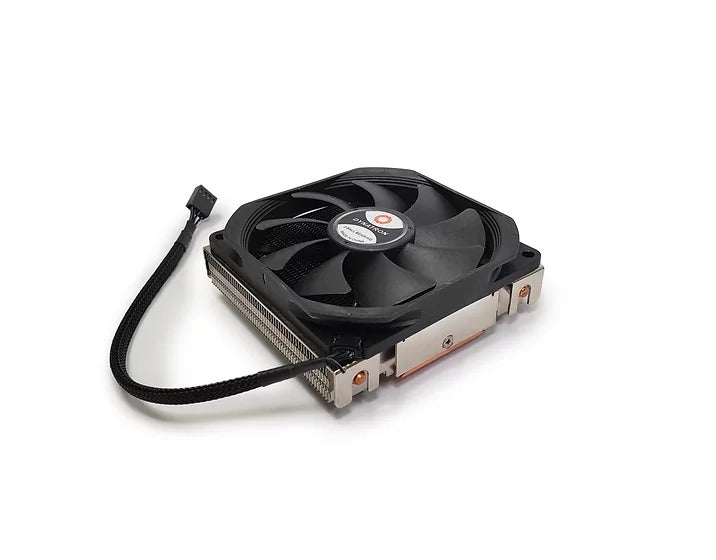

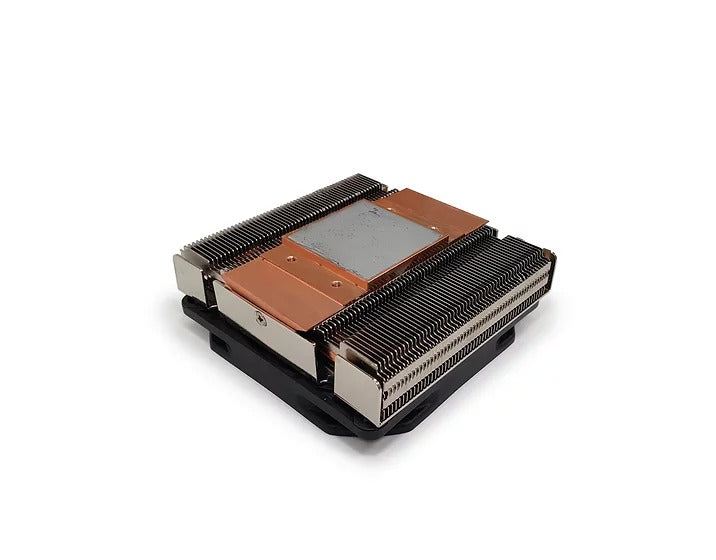

Dynatron U8 Active Mini ITX & Up Air Cooler

840556075301

Recommend for Intel® LGA 1700/1200/115X Processor, and AMD® Socket AM5/AM4 Processor, Copper Base & Aluminum Fins with Heat Pipe Embedded, 92.0 x 92.0 x 12.0 mm Axial fan with PWM Function, Active Cooler for Mini ITX Application & Up, Support 125 Watts CPU Power Heat Dissipation.

PRODUCT SPECIFICATIONS:

• CPU Support: Intel/AMD
• CPU Socket: Intel LGA 1700/1200/115X/

  AMD AM5/AM4

• Solution: Mini ITX & Up
• Dimensions: 93.4 x 95.0 x 35.2 mm
• Lead Wire Pin Out: Pin1- Black(-)

  Pin2- Black(+)
  Pin3- Black(Tachometer/Signal output)
  Pin4- Black(PWM)

• Fan Dimension: 92.0 x 92.0 x 12.0 mm
• Speed: At Duty Cycle 20%: 800 ± 200 RPM

  At Duty Cycle 50%: 1900 ± 10% RPM
  At Duty Cycle 100%: 3200 ± 10% RPM

• Bearing Type: Double Ball
• Rated Voltage: 12 VDC
• Power: At Duty Cycle 20%: 0.2 W

  At Duty Cycle 50%: 0.5 W
  At Duty Cycle 100%: 1.6 W

• Air Flow: At Duty Cycle 0~20%: 9.88 CFM

  At Duty Cycle 50%: 21.38 CFM
  At Duty Cycle 100%: 35.78 CFM

• Noise Level: At Duty Cycle 20%: 22.3 dBA

  At Duty Cycle 50%: 26.1 dBA
  At Duty Cycle 100%: 36.2 dBA


• Air Pressure: At Duty Cycle 20%: 0.28 mm-H2O

  At Duty Cycle 50%: 1.22 mm-H2O
  At Duty Cycle 100%: 3.21 mm-H2O

• Material: Copper Base & Aluminum Fins with Heat Pipe Embedded
• TDP: Support 125 Watts CPU Power Heat
• Thermal Grease: Shin-Etsu 7762 Pre-Printed
• Weight: 392g
