Dynatron A54 AMD SP6 2U Active CPU Cooler - High Performance Server Cooling Solution for Data Centers & Workstations

Product Description

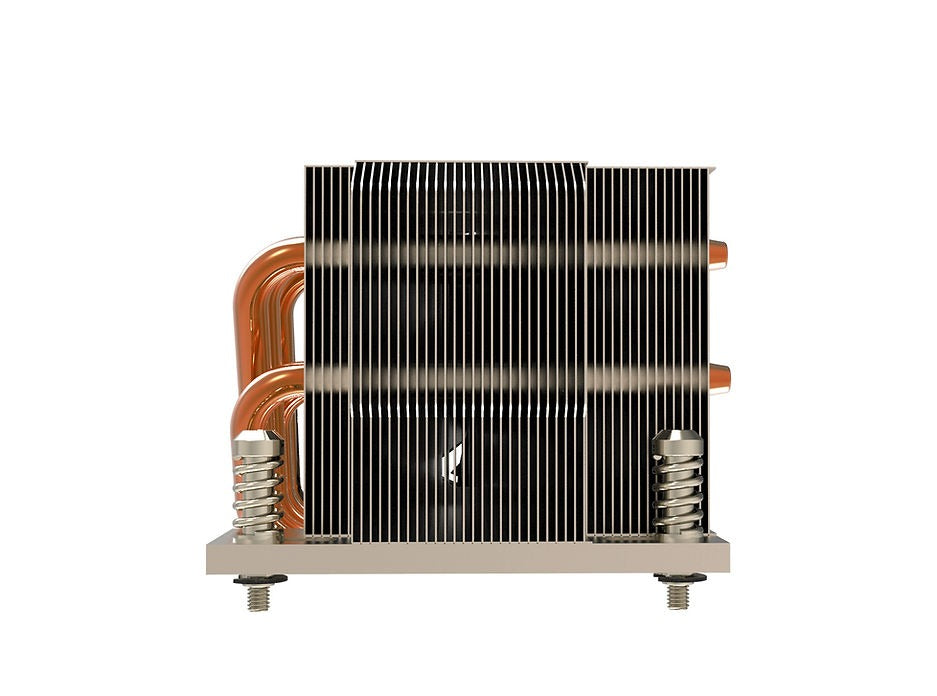

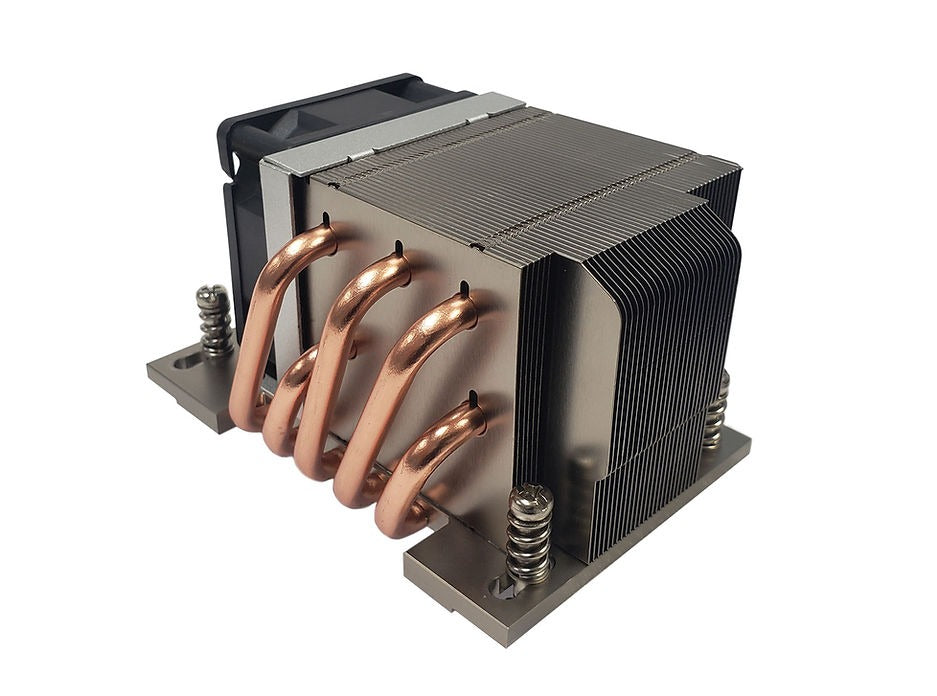

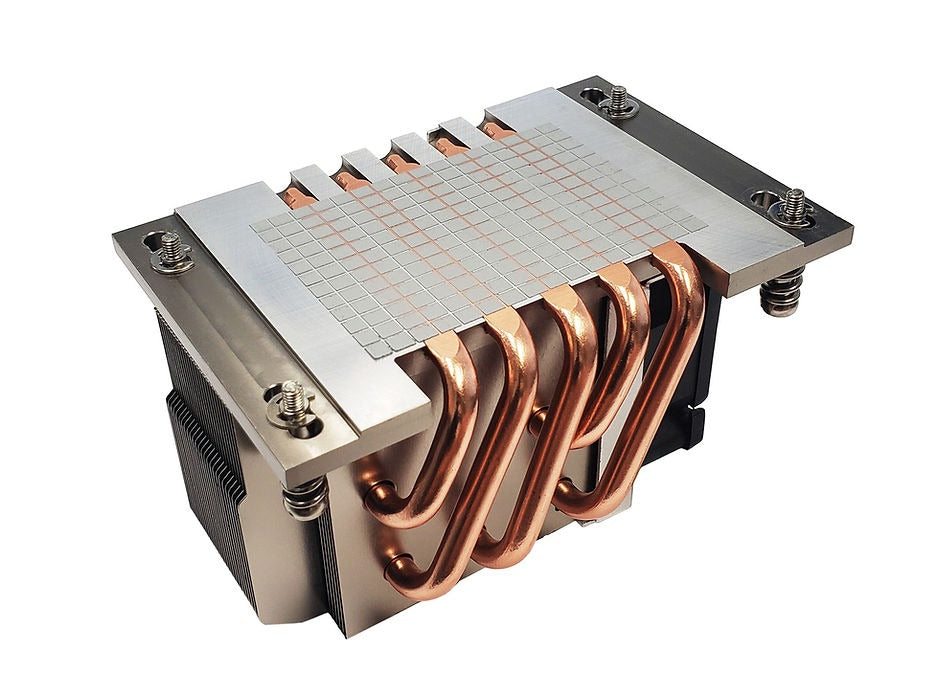

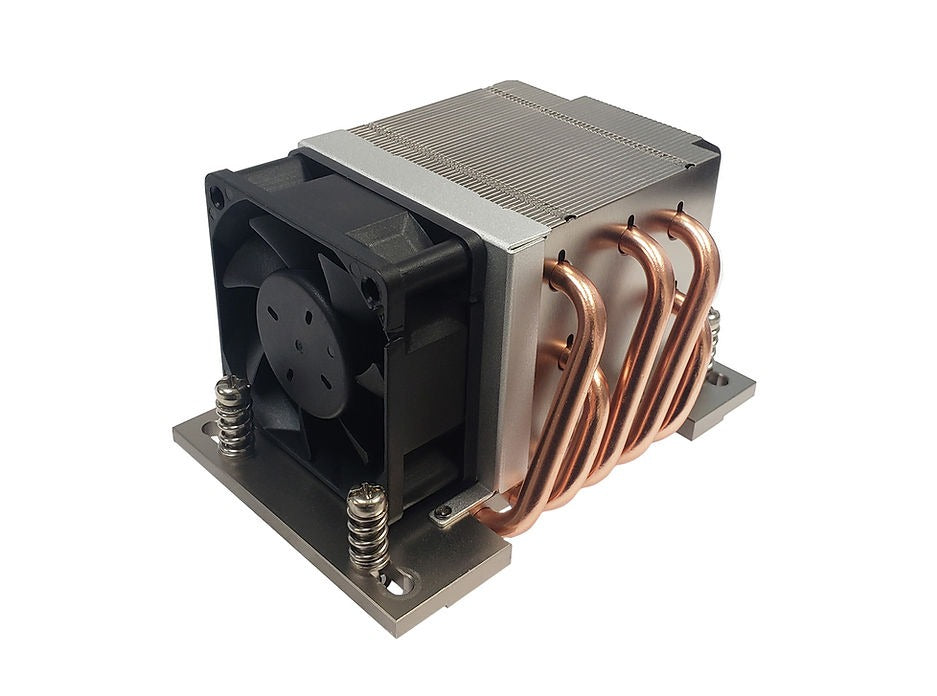

Dynatron A54 AMD SP6 2U Active CPU Cooler

840556076629

Keep your AMD® EPYC™ Processor running cool and efficiently with the Dynatron A54 2U Active CPU Cooler. Designed specifically for 2U servers and up, this compact cooler features an aluminum heatsink with heat pipe technology and a 60mm fan with 2 ball bearings for superior cooling performance. Keep your system running smoothly with the Dynatron A54.

• At Duty Cycle 0~20%: 2300 ± 10% RPM
• At Duty Cycle 50%: 5400 ± 10% RPM
• At Duty Cycle 100%: 11000 ± 10% RPM

• At Duty Cycle 0~20%: 0.84 W
• At Duty Cycle 50%: 2.76 W
• At Duty Cycle 100%: 18.0 W

• At Duty Cycle 0~20%: 11.91 CFM
• At Duty Cycle 50%: 28.38 CFM
• At Duty Cycle 100%: 58.31 CFM

• At Duty Cycle 0~20%: 1.48 mm-H2O
• At Duty Cycle 50%: 7.54 mm-H2O
• At Duty Cycle 100%: 28.8 mm-H2O

• At Duty Cycle 0~20%: 25.8 dBA
• At Duty Cycle 50%: 44.4 dBA
• At Duty Cycle 100%: 59.8 dBA

• Pin#1- Black(-)
• Pin#2- Yellow(+)
• Pin#3- Green(Tachometer/ Signal Output)
• Pin#4- Blue (PWM)
