Spire TME III Thermal Eclipse V3 CPU Cooler SP984N1 - High Performance PC Cooling Solution for Gaming & Overclocking | Perfect for Desktop Computers and Workstations

Product Description

*discontinued, this item has been replaced by an update to the TME II found

Spire TME III Thermal Eclipse-V3 #SP984N1-V3-PWM

The TMEIII is the next evolution of the hugely successful TherMax Eclipse CPU cooler series. The increased number of heat-pipes combined with a higher number and density of dimpled fins and crowned with two (2) high airflow, Nano Bearing DC fans for extreme cooling performance. Five (5) U-shaped 8mm all-copper heat-pipes are in direct contact with the CPU heat-spreader (heat source), rapid heat transfer to the 45 aluminum dimpled fins providing a larger surface area for optimum heat dissipation. The TME III is supplied with two (2) 12cm BlackStar 7 blades, high quality precision Nano - Bearing DC fans, providing high airflow and sufficient cooling. These fans are PWM controlled to provide the best sound / cooling ratio possible. Compatibility is guaranteed with multi-platform mounting for all current Intel and AMD micro-processors. The TME III brings cooling power to an all-new level. Another amazing product from Spire – Powered by Innovation.

Main Features:
Five (5) 8mm all copper U-shaped sinter-powder heat-pipes

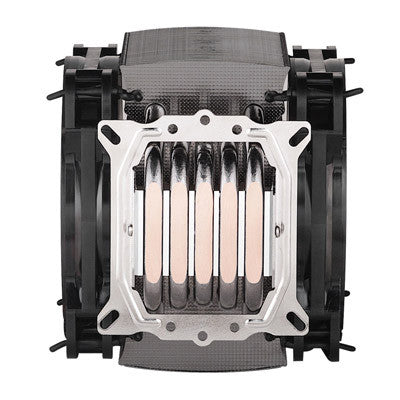

Solid copper base in direct contact with all of the processor area
Straight lined heat-pipes allowing air to easily pass through
Stamped aluminum wide fins for best surface rate
Dimpled surface fin for increased heat transfer rate
All black-Nickel coated heat-pipes to preserve killer looks from oxidation
Two (2pcs) 120mm BlackStar 7 blade DC fan included
High Quality, Long MTBF precision Nano - Bearing
Supports AM2/AM3 socket 939/940/ 775/1155/1156 & 1366
Best cooling performance on hot CPU’s up to TDP 150W
PWM fan speed control, 4 PIN PWM (2510) Mainboard Connector

Compatibility:
The TME III Cooler is compatible with the latest ATX boards based on the Intel and AMD Micro-processors sockets 775/1155/1156/1366 for Intel and AM2/AM3/940/939 for AMD (not G34 compatible).

Product Includes :
TME III Heat-sink, Two (2) 12cm BlackStar 7 blades DC Fans, 8 Anti-Vibe rubber fan mounts, BlueFrost thermal interface compound, Intel universal mounting set, AMD universal mounting set, Motherboard back-plate, User installation manual, Warranty registration card.

Dimensions
Heat sink :131×70×152 mm (l × w × h)
12VDC Fan : 120×120×25 mm
Material Al+Cu
Heatpipe Five (5) 8mm all copper U-shaped direct
Bearing Nano Bearing
Rated speed
Cooler : 600~1800 rpm RPM +/-10%
Only Fan : 600~1800 rpm RPM +/-10%
Rated power 2.16 W
Rated Voltage 12 V
Noise level 10~22 dBA
Air flow 74.63 CFM Max.
Current 0.18 A
Connector 4 PIN PWM (2510)

Application
Intel Core i3
Intel Core i5
Intel Core i7 Cooler
Intel LGA775 (Prescott)
AMD Althlon X2 (AM2/AM2+)
AMD Athlon 64 FX-74 (K8)
AMD Phenom (AM2/AM2+)
AMD Phenom II (AM2/AM3)
AMD Sempron (K8)

TDP 150 W
Thermal resistance 0.091 oC/W
Thermal paste BlueFrost - SP802 blue grease(Injection Tube,0.5g)
Static Pressure 2.86 mmH2O
MTBF 70000H
Operating Temperature -10~70 oC
Storage Temperature -40~70 oC
Warranty by manufacture 5 years
Packaging type Color Box

Package includes
2x FANS / 1x clip mounting-set / SP-802 grease / Installation manual / Warranty card

N.W 0.822 KG
G.W 1.3 KG

Features

Two (2) 120mm BlackStar 7 blade fan design High Quality,Long MTBF Nano precision bearing Anti-Vibe universal rubber fan mountings (crews), Supports AM2/AM3 socket 939/940/ 775/1156 & 1366 Intel Core i7 Extreme 150W

* All Spire CPU cooling products come with thermal compound either pre-applied onto the cooler or in an injection tube. Compound will begin to function at its optimum potential, after a gradual increase in heat-dissipation, approximately 168 hours (7days) after initial application.

* All technical data shown above are measurements from our own laboratory. Product images shown may differ from actual product. Specifications are subject to change without prior notice.

UPC Code 6943051205762

*The Model Number was misprinted at factory on the initial shipment we received. It was printed as SP984B1 instead of SP984N1. The correct model # is SP984N1 and that is the only model we carry.
