120mm High Airflow EC Fan - Single Bracket Inline Fan for PC Cooling, Server Racks & Home Ventilation | Quiet & Energy Efficient

Product Description

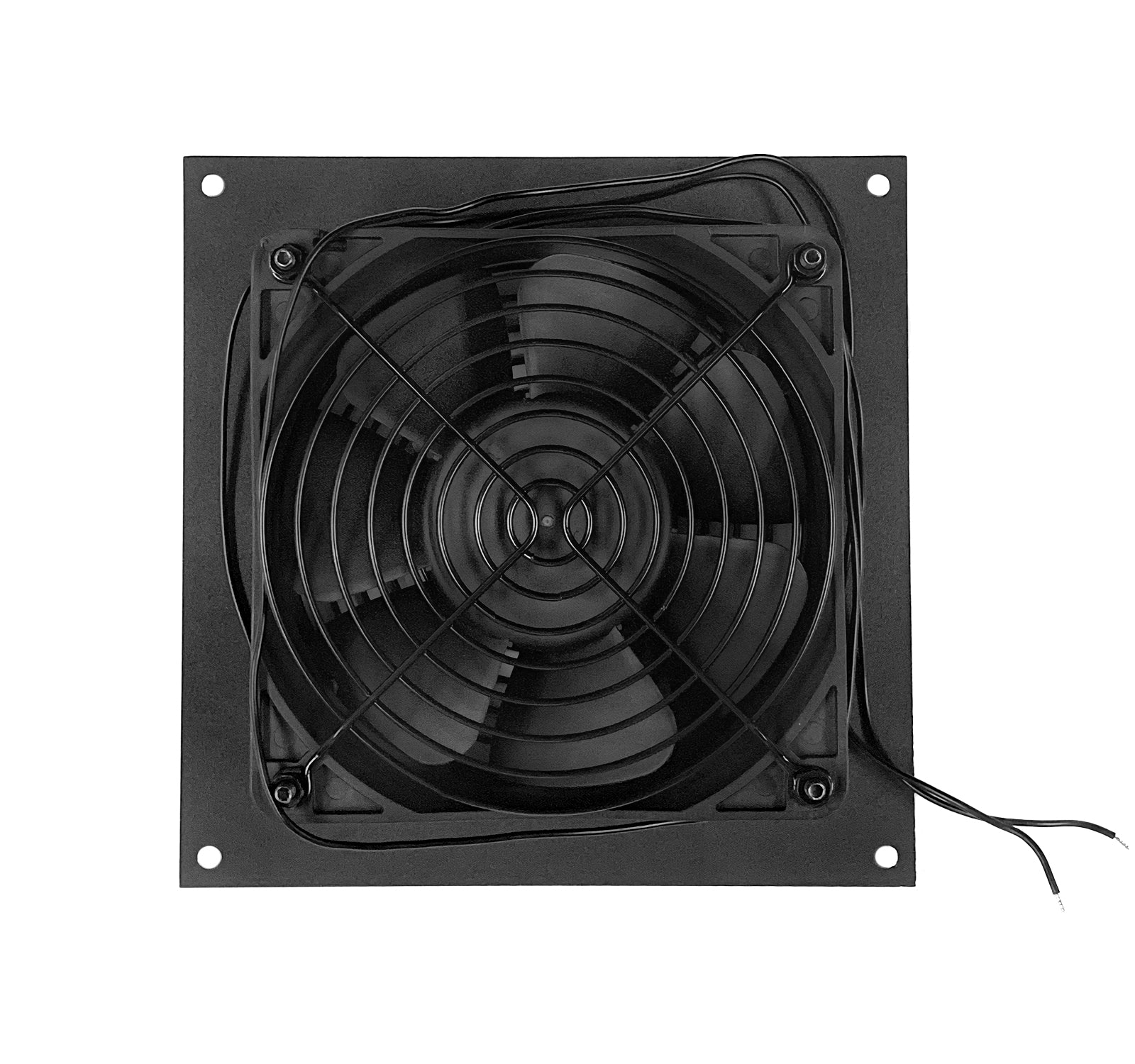

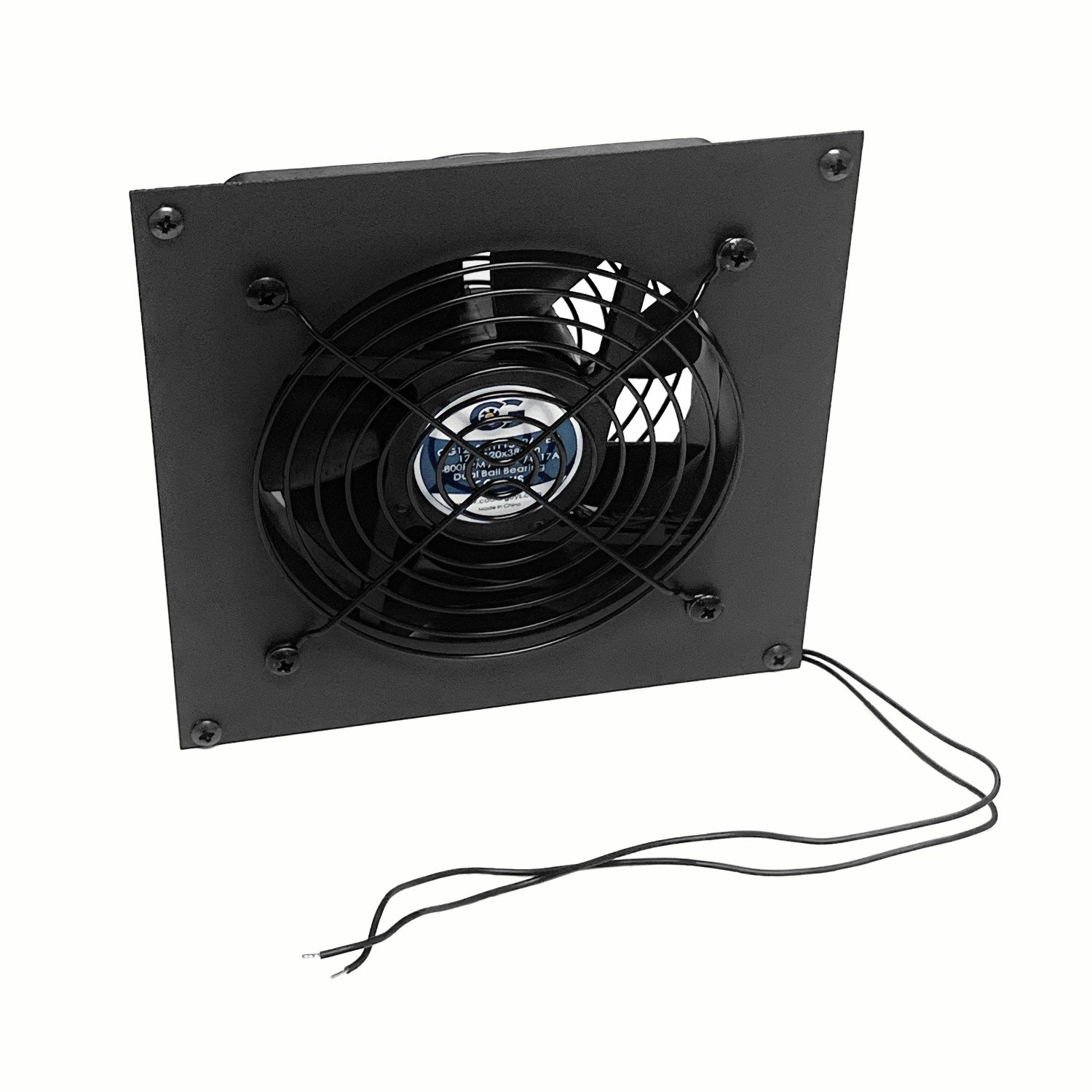

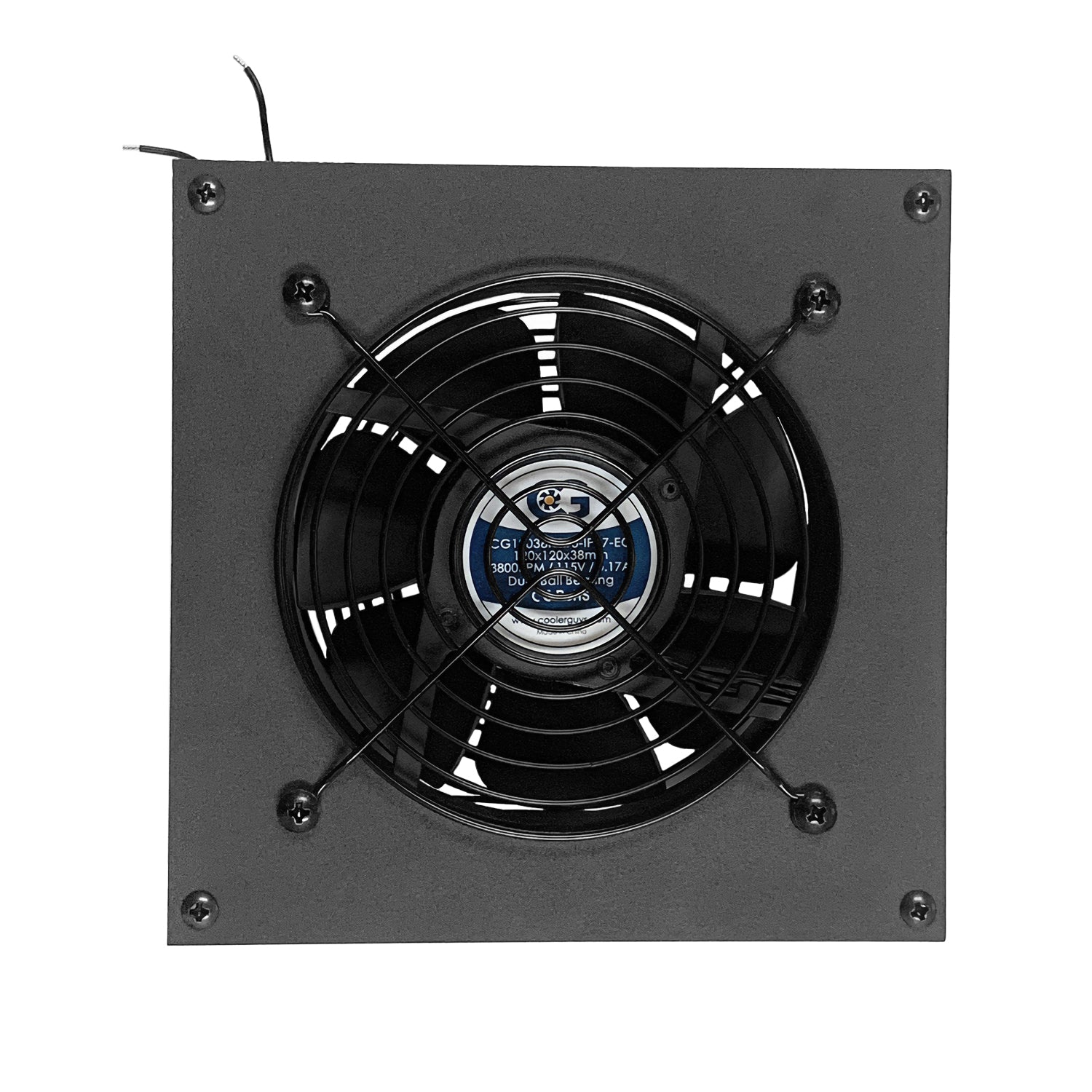

Single Bracket In-line 120mm High Airflow EC Fan

840556075592

-Single Bracket In-line 120mm High Airflow EC Fan

Single Bracket In-line 120mm High Airflow EC Fan is designed to be mounted in-line with a ventilation system. It has a size of 120x120x25mm and is equipped with an electronically commutated (EC) motor, which provides efficient and quiet operation. This type of fan is known for its high airflow, which makes it ideal for use in applications that require good ventilation, such as HVAC systems, industrial equipment, and server rooms.

The single bracket design allows for easy installation in tight spaces, and the fan can be mounted either horizontally or vertically. It is typically made of durable materials such as aluminum or plastic and is designed to withstand harsh environmental conditions.

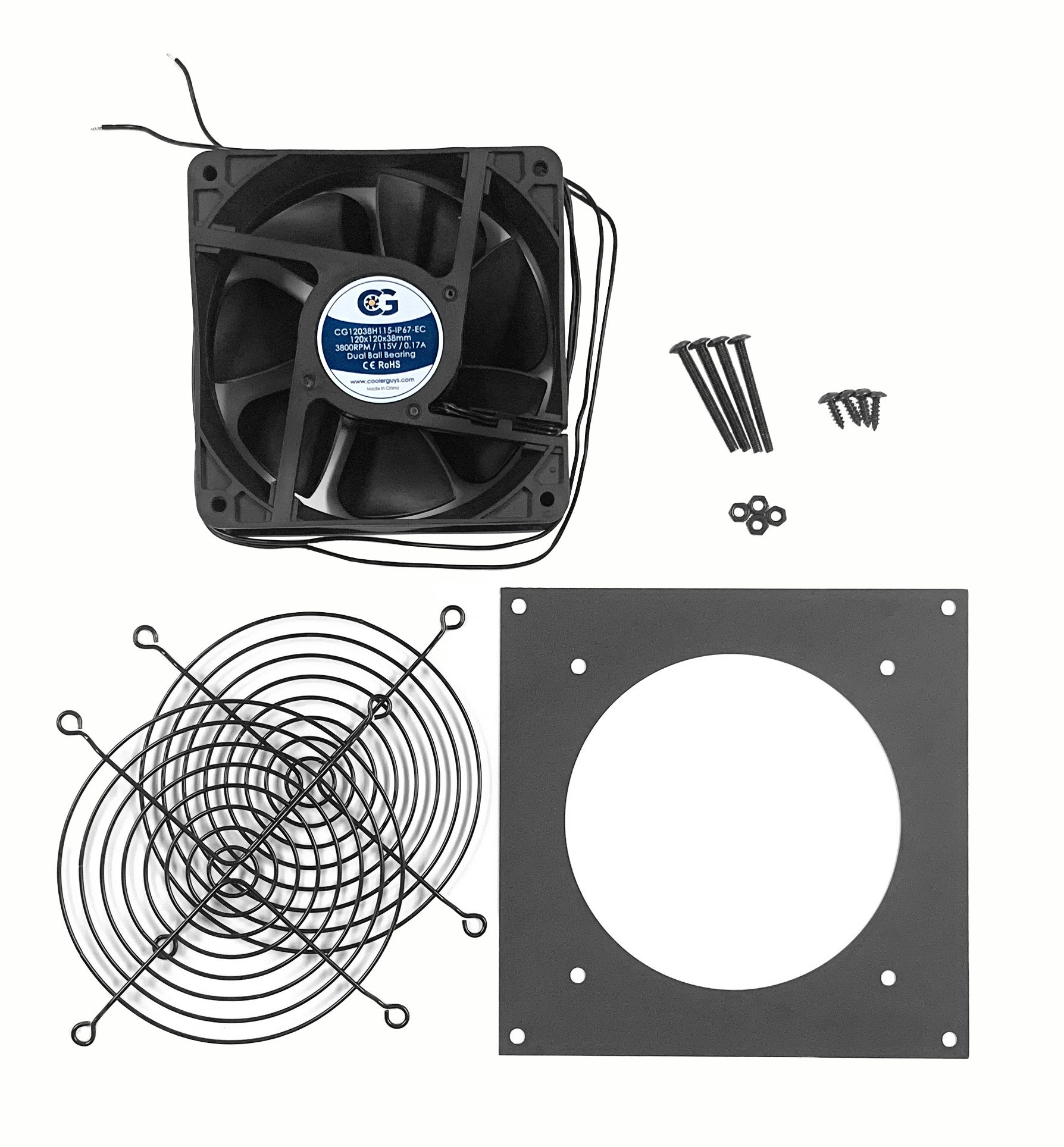

KIT CONTENTS:

PRODUCT SPECIFICATIONS:

• Bracket Dimensions: 160mm x 160mm x 1mm(Thickness)
• Fan Specifications:
• Fan Size: 120x120x38mm
• Bearing Type: Dual Ball Bearing
• Wire Option: 2 Wire; Length - 300mm (12in)
• Connector: Bare wire leads stripped at end
• Fan Speed: 3800 ±10% RPM
• Airflow: 161 CFM
• Rated Input Voltage: 115vAC (110 - 120vAC)
• Rated Current: 0.17 Amp
• Noise Level: 47 dBA
• Static Pressure: 15.87 mmH2O
• Lifespan: 67,000 Hours at 25℃
• Operation Temperature: -10℃ to +70℃
• Corners: Closed

We trust our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
