Cabcool 901U Single 92mm USB Powered Computer Case Fan - Quiet Cooling Solution for PC, Gaming Rig & Home Office Setup

Product Description

Cabcool 901U single 92mm USB Powered Cabinet Cooling Kit

840556093268

This 92mm USB version of our Cabcool is a great selection if you just want a no nonsense easy to install kit to keep your stuff cool.
To use this kit you will need access to a USB port, the fan will switch on when the device is powered.
It's been tested and will work with popular devices like Cable & Satellite Boxes as well as most common game consoles like the Nintendo Wii, Xbox 360, and Playstation 3.

Also it's a great addition to a closed computer cabinet so you can exhaust the hot air that is created by the computer whenever it is powered on.

Available in versions.

The single 92mm fan mounting bracket included is 120 x 120 x 3mm
It can be mounted on any side of a cabinet, where room permits, by cutting a hole 96mm x 96mm in size
Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fan(s) can be installed to blow into or out of the cabinet depending on your needs.

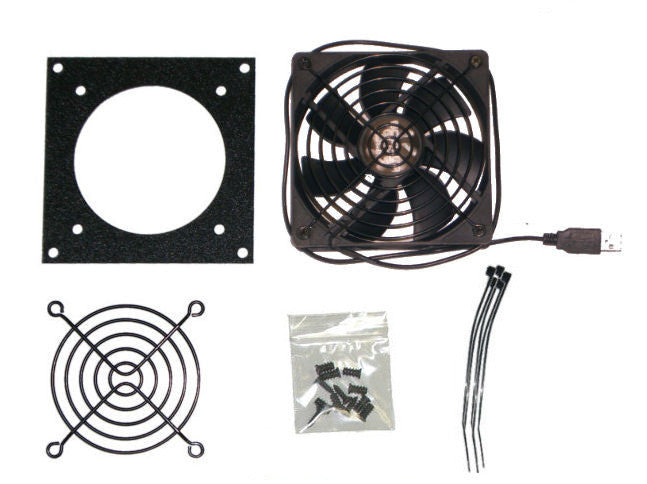

All necessary screws, cables, and fasteners to complete the unit are included

PRODUCT SPECIFICATIONS:
Completed dimensions: 120 x 120 x ~32mm
Cut-out Dimensions: 96 x 96mm

FAN SPECIFICATIONS:
Dimensions: 92x92x25mm
Voltage: 5VDC
Startup Voltage: 3.5V
Operating Range: 3V-6.5VDC
Input current: .18 Amp Max
Storage temperature: -40 to +70 C
Fan Speed: 1500 +/- 10% RPM
Airflow: 23.5 CFM
Noise Level: 22.9 dBA
Corners: Open
Connector: USB w/24" Tail
Bearing Type: Dual Ball bearing
Life Hours: 40,000 hours

CERTIFICATION:
RoHS Compliant

NOTE:
Be sure to Install 92mm finger grills on the outside of the bracket. Extended side out so as not to press on fan.
This kit can also be used with the .
This is a DIY kit and some assembly and installation is needed.

(574 kb pdf)

 We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
